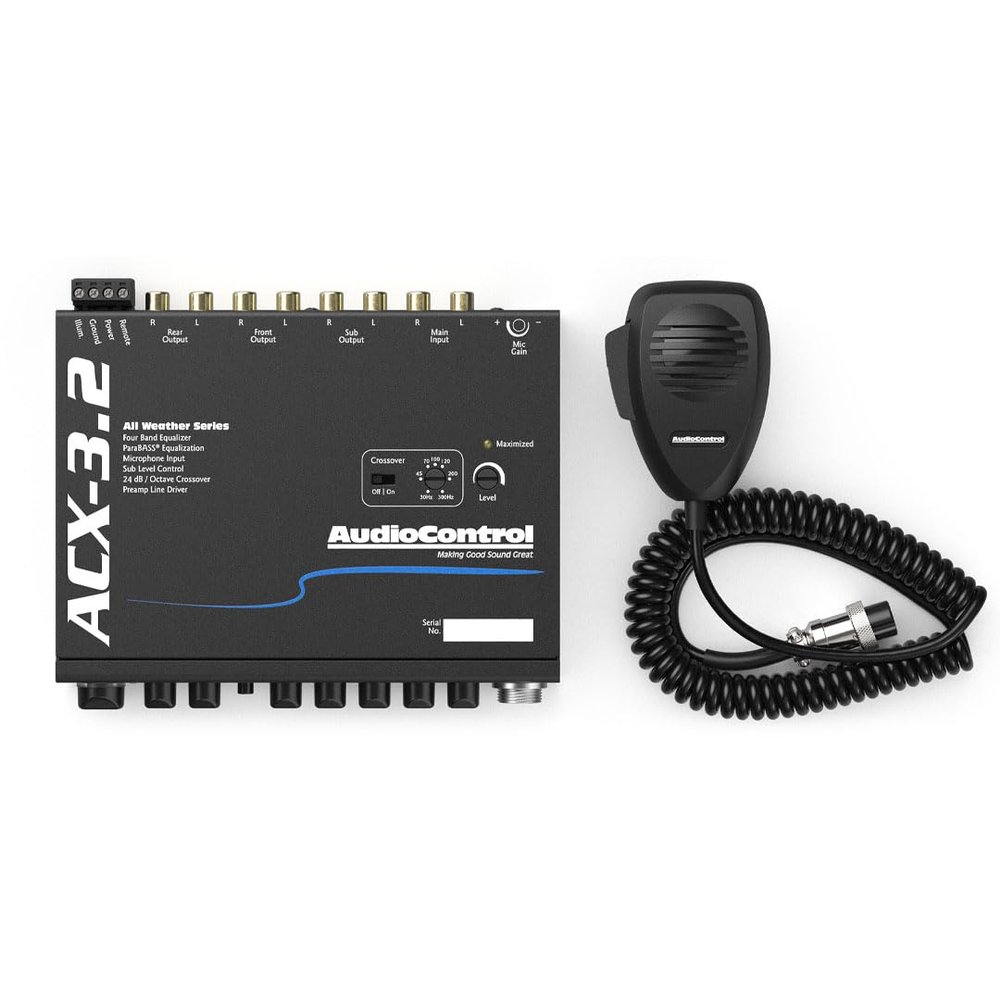

AudioControl ACX-3.2 All-Weather Graphic Equalizer and Crossover with Paging Mic

Description

• 4-Band Stereo Graphic EQ
• Parabass Low-Frequency Contouring
• Variable 24 Db/Octave Linkwitz-Riley Crossover
• Front, Rear, and Subwoofer Outputs
• Master Volume, Fader, and Sub-Level Control

The ACX-3.2 all-weather sound processor is a high-output pre-amp, for all systems on-road, off-road, or off-shore. The ACX-3.2 can serve as the main control unit in your audio system allowing you to control the output to all of your amplifiers. It features a 4-band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection. The built-in crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system. Adding an ACX-3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner with less distortion. FEATURES 4-Band Stereo Graphic EQ Parabass Low-Frequency Contouring Variable 24 Db/Octave Linkwitz-Riley Crossover Front, Rear, and Subwoofer Outputs Master Volume, Fader, and Sub-Level Control Parabass Bass Control High-Gain Input Stage Line Driver: 13-Volts Peak Output Dash or Console-Mountable Included Paging Microphone Selectable Illumination (red or blue) SPECIFICATIONS INPUTS Preamp Inputs: 1 (2 channels) Input Gain: 0-20 dB Input Impedance: 20 k OUTPUTS Preamp Outputs: 6 Maximum Output Level: 7.5 Vrms / 9.5 V Peak Output Impedance: 150 PERFORMANCE Frequency Response: 20Hz-20kHz .01dB Total Harmonic Distortion: 0.03% Signal to Noise: 123 dB (inputs set to Balanced) EQ Frequencies: 40 Hz 80 Hz (parametric), 125 Hz, 1.25 kHz, 10 kHz EQ Cut/Boost: 10 dB Crossover type: 24 dB/octave Linkwitz-Riley Factory Crossover Setting: 100 Hz Microphone Frequency Response: 100 Hz 6 kHz Microphone Maximum SPL: 123 dB CONTROL Remote In GENERAL Power Supply: High Headroom PWM Switching Current Draw: 300mA Recommended Fuse Rating: 1A WEIGHTS & DIMENSIONS Dimensions: 6.75W x 5D x 1H Weight: 1.6lbs IN THE BOX: ACX-3
