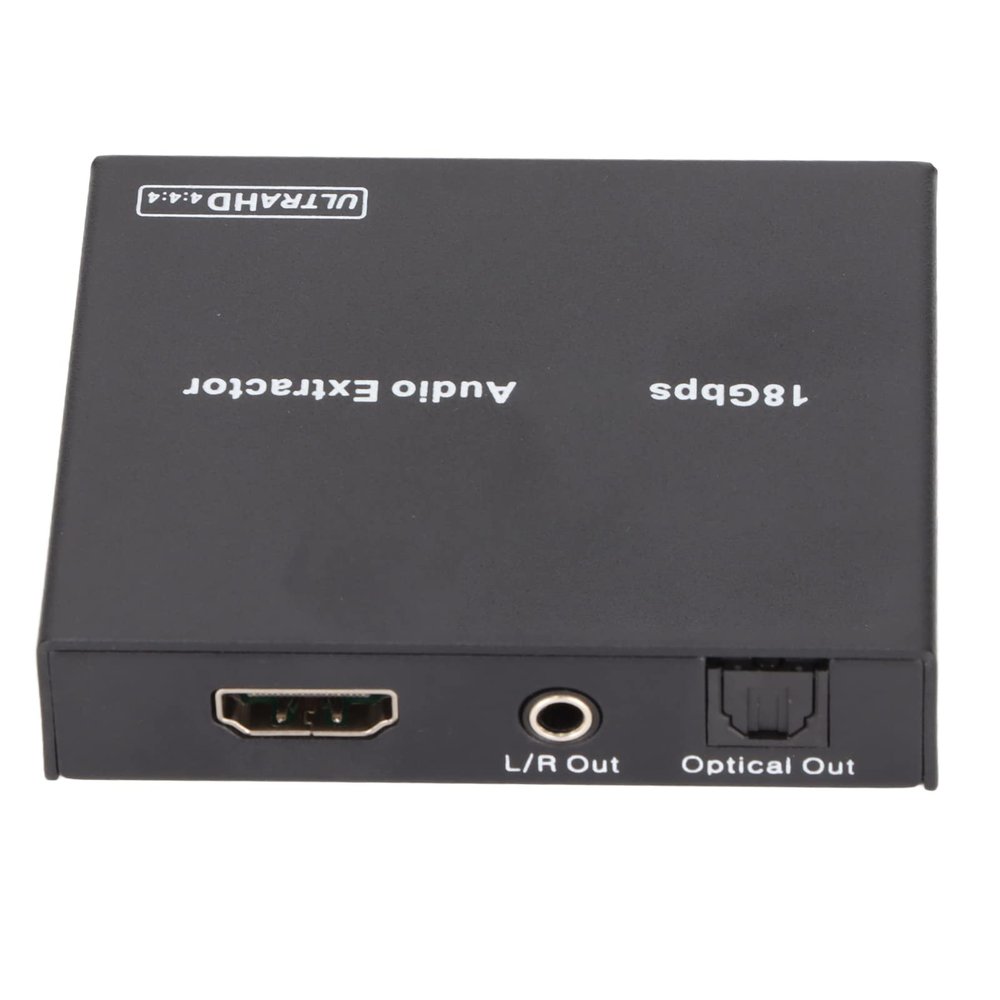

Audio Extractor Splitter, 18Gbps HD Multimedia Interface Sound Extractor 4K 2K@50 or 60Hz Sound Extractor Converter for DVI 1.0 and HDCP 2.2 (Plug

Description

• [Analog Sound Output] The sound extractor supports sound extraction from HD multimedia interface source devices to optical multi-channel analog sound (SPDIF) and L/R output.
• [Compatible] This HD multimedia interface sound extractor supports HD 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 multimedia interface. The sound sampling rate reaches 192 KHz.
• [High Resolution] HD multimedia interface sound splitter has a resolution of 4K2K at 50/60Hz (YUV 4:4:4). High bit rate () sound transfer from the HD multimedia interface is supported.
• [Sound Formats] Extractor supports 10-bit HDR pass-through and HD multimedia interface pass-through digital sound formats such as LPCM 2CH, TrueHD, Digital Plus, and DTS-HD Master.
• [Versatile] The sound splitter supports HDCP 2.2 and CEC pass-through functionality. You can select the TV, Bitstream or 2CH sound format via the DIP on the front panel.

How to use:

Plug and Play

Specification:

Item Type: Puller

Model No.: HDV-MB01

Material: Iron box.

Support HD multimedia interface: HD 2.0b multimedia interface

HDCP Compliant: HDCP 2.2 and HDCP 1.4

Video Bandwidth: 18Gbps

Video resolution: up to 4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz, etc.

Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color depth: 8 bit, 10 bit, 12 bit

HD multimedia interface sound format: PCM2, 5.1, 7.1CH, for Dolby Digital, DTS 5.1, for Dolby Digital+,

For Dolby TrueHD, DTS-HD Master Sound, for Dolby, DTS:X

Optical sound format: LPCM 2CH, LPCM 5.1, for Dolby Digital 2/5.1CH, DTS 2/5.1CH

L/R sound format: analog stereo 2 channels

Electrostatic protection: 8kV (air discharge), 4kV (discharge).

Input port: 1 x HD Type-A multimedia interface [19 pin female port]

Output: 1 x HD multimedia interface type A [19-pin female], 1 x optical output [S/PDIF], 1 x L/R sound output [3.5mm stereo mini jack]

Packing List:

1 x Extractor
1 x Adapter
1 x English Manual
