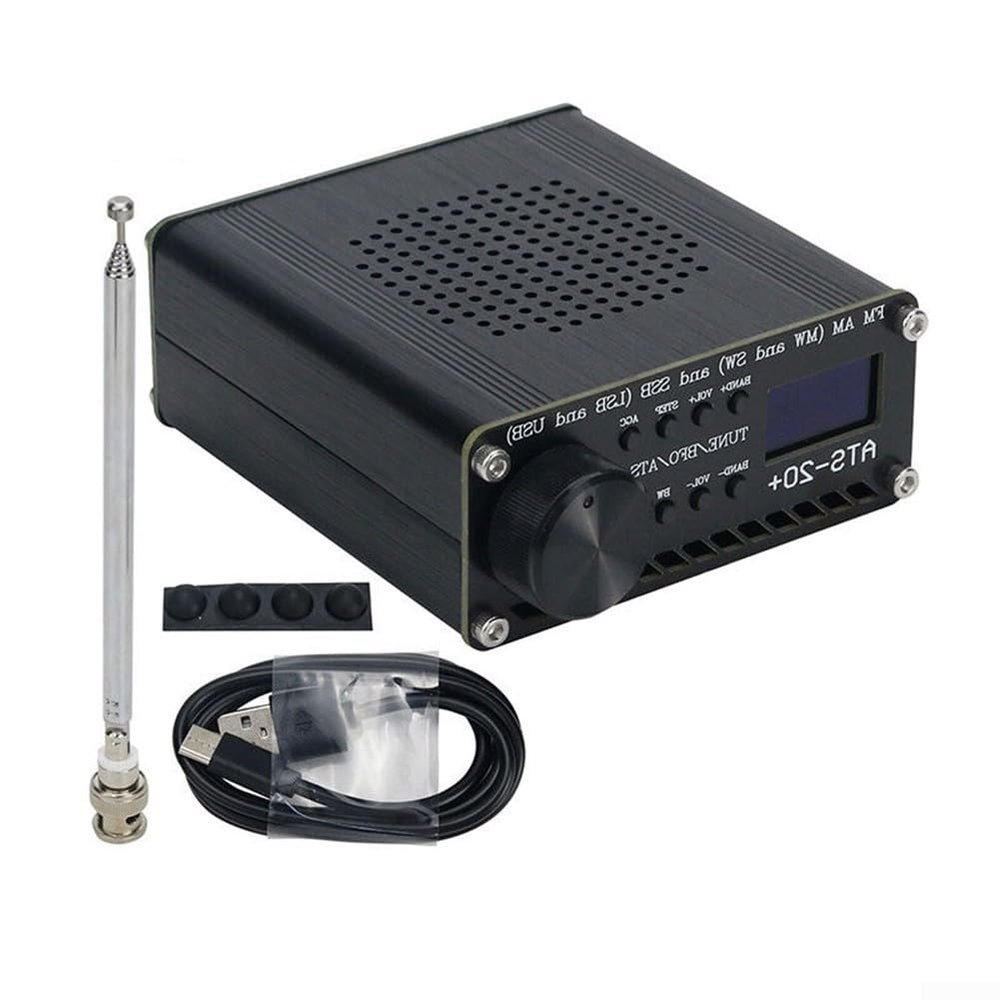

ATS-20 Plus V2 SI4732 Full-Band Radio Receiver, FM AM LW SW World Band Receiver with Speaker, Antenna, Portable Shortwave Radio Receiver for Outdoor Camping Home

Description

• Features a 0.96-inch display for clear viewing of FM, AM, and SSB bands, with automatic setting retention after power failure for reliable operation.
• Supports multiple audio outputs including a 3.5mm headphone jack and 1.5W/2W speaker compatibility, for personal or group listening.
• Equipped with a built-in 3.6V 800mAh polymer lithium battery and USB-C charging for portable, sustainable power.
• Covers 22 pre-configured commercial and amateur radio bands with adjustable audio bandwidth filters and BFO control for precise tuning.
• Includes antenna interface and user-replaceable SI4732 chip, offering flexibility for DIY upgrades and broad software compatibility.

Features:
* With a 0.96-inch for OLED display, it is a high-quality full-band radio receiver that supports the function of automatically keeping settings after power failure. Equipped with audio output, it supports 3.5mm headphones. It supports 4-ohm speaker 2W output. It is pre-configured with 22 commercial and amateur radio bands for your use.
* Equipped with a 0.96-inch for OLED display, you can view the FM band, AGC on/off as needed
* Support automatic retention of settings after power failure
* Built-in 3.6V 800mAh polymer lithium battery, stable and sustainable power supply
* Support USB charging
* Equipped with audio output, supports 3.5mm headphones
* Also supports 8 ohm speaker 1.5W output
* The antenna interface uses an for SMA interface, the printed circuit board retains the SI4732 package, the chip can be replaced by itself, and the software is compatible
* Pre-configured 22 commercial and amateur radio bands for your use
* Support bands: FM, AM (for MW and SW) and SSB (LSB and USB)
* Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz
* BFO control
* Frequency step switch (1, 5 and 10KHz)
* Tuner Technology: DAB

Specifications:
Part Name: Radio Receiver
Material: PCB
Color: Black
Size: 89*107*41mm/3.50*4.21*1.61 inches
Frequency Bands: (as below)
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5}, {SW_BAND_TYPE, 5500, 6300, 6000, 5}, {SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters {SW_BAND_TYPE, 7800, 10000, 9600, 5}, {SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters {SW_BAND_TYPE, 11000, 12500, 11940, 5}, {SW_BAND_TYPE, 12500, 13900, 13600, 5}, {SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters {SW_BAND_TYPE, 14500, 15900, 15300, 5}, {SW_BAND_TYPE, 15900, 17900, 17600, 5}, {SW_BAND_TYPE, 17900, 18300, 18100, 1}, // 17 meters {SW_BAND_TYPE, 18300, 21900, 21200, 1}, // 15 meters {SW_BAND_TYPE, 21900, 26200, 24940, 1}, // 12 meters {SW_BAND_TYPE, 26200, 27900, 27500, 1}, // CB Band (11m)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10m

Package Contents:
1 x Radio Receiver
1 x Antenna
1 x Type-C Cable
