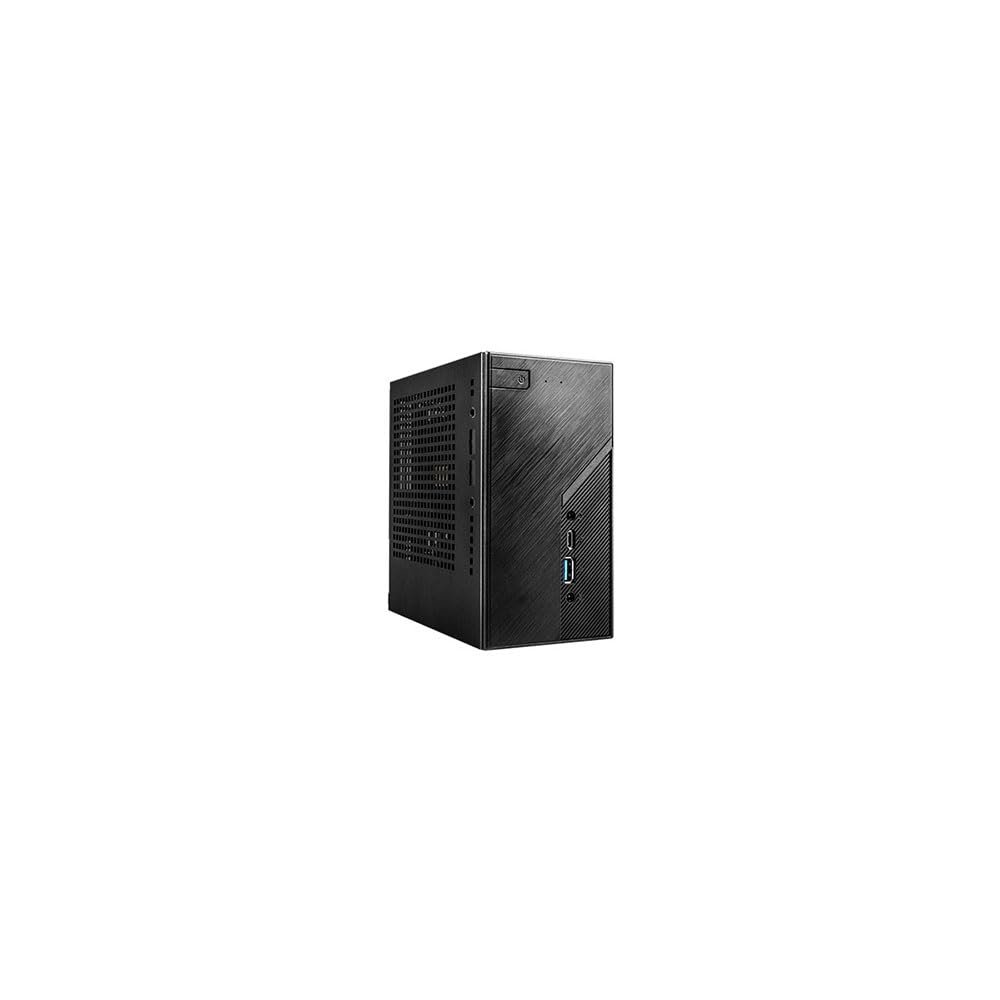

Asrock DESKMINIB760W/B/BB/BOX/US Barebone Asrockdeskmini B760w/b/bb/box/us R

Description

• Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), up to 65W
• 1 x M.2 Key-E for Wi-Fi
• Dual DDR4-3200MHz SO-DIMMs, up to 64GB
• Multi video outputs: 1 x DisplayPort, HDMI & D-Sub
• 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
• 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (with USB Type-C Alt mode)
• 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
• 1 x Blazing M.2 (PCIe Gen5 x4) slot
• 1 x Hyper M.2 (PCIe Gen4 x4) slot
• 2 x 2.5" HDD/SSD with RAID 0/1

DeskMini B760 CPU - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), maximum TDP 65W cooling - Supports Intel CPU Cooler (maximum height 47mm) memory - Supports 2 x SO-DIMM DDR4-3200MHz, maximum 64GB (non-ECC) chipset - Intel tel tel B760 graphics - HDMI (4K@60Hz) - DisplayPort 1.4 - DisplayPort 1.4 (over USB Type-C Alt Mode) - D-Sub *Supports up to 4 displays simultaneously sound - Realtek ALC269 Audio Codec LAN - 2.5 Gigabit LAN (Dragon RTL8125BG) storage space - 2 x SATA3 6Gb 2.5 inch 7mm/9.5 mm hard drive (RAID 0/1) - 1 x Blazing M.2 socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* *Supports Intel technology. OptaneSupports NVMe SSD as boot disks Supports Intel Volume Management Device (VMD) WiFi - 1 x M.2 Socket (Key E), Supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT) Front I/O - 1 x MIC-In - 1 x USB 3.2 Gen2x2 Type-C port (20 Gb/) (Supports ESD Prote) (Supports ction) - 1 x USB 3.2 Gen2 Type-A port (10 Gb/s) (supports ESD Protection) - 1 x headphones with MIC socket rear I/O - 1 x DC input (compatible with the 19V power adapter) - 1 x D-Sub port - 1 x HDMI port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen. 2 2 Type-C port (10 Gb/s) (supports USB Type-C Alt Mode) - 2 x USB 3.2 Gen1 Type-A ports (supports ESD Protection) - 2 x USB 2.0 ports (supports ESD Protection) - 1 x RJ-45 LAN port with LED connector - 1 x USB 2.0 header - 1 x front panel header - 2 x 4-pin fan connector CPU, SYS) - 1 x internal speaker header (4-pin) - 1 x audio header (4-pin) Product accessories - 2 x SATA data with power cable - 1 x power adapter (120W/19V) - 1 x Screw Pack Dimension - 155 x 155 x 80 mm (1.92 litres) OS - Compliant with Microsoft Windows 10 64 -Bit / 11 64-bit
