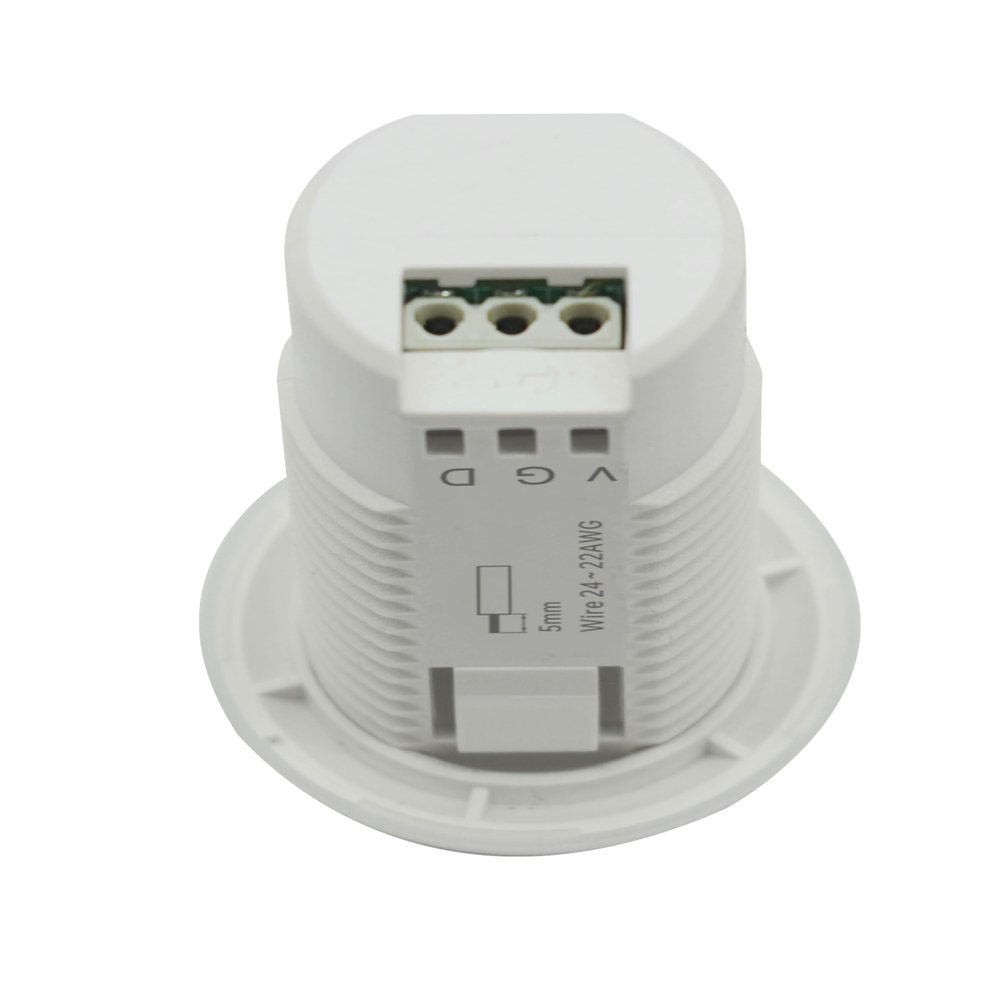

ASD Infrared Motion Sensor 13ft 0-10V Dimmable IP20 RC White

Description

• DESIGN. INFRARED MOTION SENSOR WITH CLIP-IN-BASE for LSF8 Series of ASD LED linear strip lights provides energy-effective solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 0-10V dimming option. The sensor can be installed at the 13ft maximum.
• DEFAULT SETTINGS. You can use default settings to cover most standard applications: Detection Area - 100%, Holdtime - 10min, Daylight Threshold - disable, Standby Period - 0S, Standby Dimming Level - 10%
• ADJUSTMENTS. Using remote you can adjust: Detection area 25%-100%, Holdtime 5s-30min, Daylight threshold 2-400Lux, Standby Dimming Level 10-50%, Standby Period 0s - +
• EMERGENCY BACK-UP. The sensor is compatible with ASD emergency Back-up, switches to Emergency mode when the power is off, and is back to the programmed operation mode when AC mode is renewed.
• APPLICATION. Motion sensor with clip-in base is only compatible with LSF8 Series of ASD LED linear strip lights.

DESIGN. INFRARED MOTION SENSOR WITH CLIP-IN-BASE provides energy-effective solution that enables the lights light up upon detection of movement and turn itself off if not required. It operates on 12V input power with 0-10V dimming option. The sensor can be installed at the 13ft maximum.
