Aolidsive SDR Radio Receiver,DeepSDR V6 4.3 Inch IPS Touchscreen DSP Shortwave Radio with 192kHz Real Time Spectrum Wide Frequency Range 100KHz 149MHz (Silver)

Description

• Advanced SDR Architecture: This software defined radio receiver utilizes a Tayloe quadrature mixer and zero-IF design with a 16-bit ADC, providing a 192kHz real-time spectrum/waterfall display and supporting CW, AM, SSB, and FM for superior digital demodulation.
• 4.3-Inch High-Resolution Touchscreen: Equipped with a vivid 800x480 IPS LCD touchscreen paired with a rotary encoder, this SDR radio offers intuitive operation and clear visibility in various lighting conditions.
• Wide Frequency Coverage & Stable Reception: This portable shortwave radio covers 100kHz to 149MHz with 1Hz tuning steps, featuring a TCXO (0.5ppm) and high-gain antenna for excellent sensitivity and minimal interference.
• Rugged & Portable Aluminum Design: Housed in a durable, CNC-machined aluminum alloy casing, this compact handheld SDR measures 140x74x22mm and weighs only 318g, making it ideal for outdoor use.
• Long-Lasting Battery & Professional Features: Powered by a built-in 5000mAh battery for 10-12 hours of operation, this SDR receiver supports I-Q output, 99 channel presets, and adjustable bandwidths, making it perfect for amateur radio, field exploration, and shortwave listening.

Specification:
Item Type: Deep SDR V6 DSP Digital Shortwave Radio
Frequency: 100KHz - 149MHz
Mode: CW, AM, SSB, FM, WFM
Battery: 5000mAh rechargeable lithium-ion (built-in)
Housing: Aluminum alloy
Display: 4.3-inch IPS touchscreen (800x480 resolution, DC dimming)
Control: Resistive touch + rotary encoder
Tuning Step: 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Spectrum Bandwidth: 192kHz/128kHz/64kHz with FFT real-time display
Antenna Port: BNC male (50 impedance, max input power -20dBm)
Reference Oscillator: TCXO 26MHz 0.5ppm
Audio Interface: 3.5mm headphone jack (supports CTIA standard)
Speaker: 3W 4 multimedia speaker
Charging Port: USB Type-C (5V/2A)
Current Consumption: Approx. 250mA @ 5V
Operation Time: Approx. 10-12 hours (varies by volume/brightness)
Channel Memory: 99 presets (saves frequency/mode/custom name)
Receiver Parameters:
- RF Preamp Gain: Fixed 20dB
- Circuit Type: Zero-IF (ZIF)
- Sideband Rejection: 50dB
Encoder-Selectable Functions:
1. Channel selection (1-99)
2. Frequency setting (100kHz149MHz, 1Hz step)
3. Speaker volume (0-35dB, 1dB step)
4. Headphone volume (0-35dB, 1dB step)
5. Modulation: CW/LSB/USB/AM/WFM/STE(FM stereo)/I-Q
6. AGC: OFF/SLOW/MID/FAST
7. Reference level (-9999dB, 1dB step)
8. Backlight brightness (1%-99%)
9. IF Gain (-1267dB, 1dB step)
10. Spectrum style (green fill/line, blue fill, white line)
11. Spectrum bandwidth (RF:192/128/64kHz; Audio:64kHz)
12. Waterfall mode (x1/x8/x64 amplitude)
Non-Selectable Displays:
A. Battery level
B. Date/time
C. P

How to Use:
Please refer to the user manual for detailed instructions.

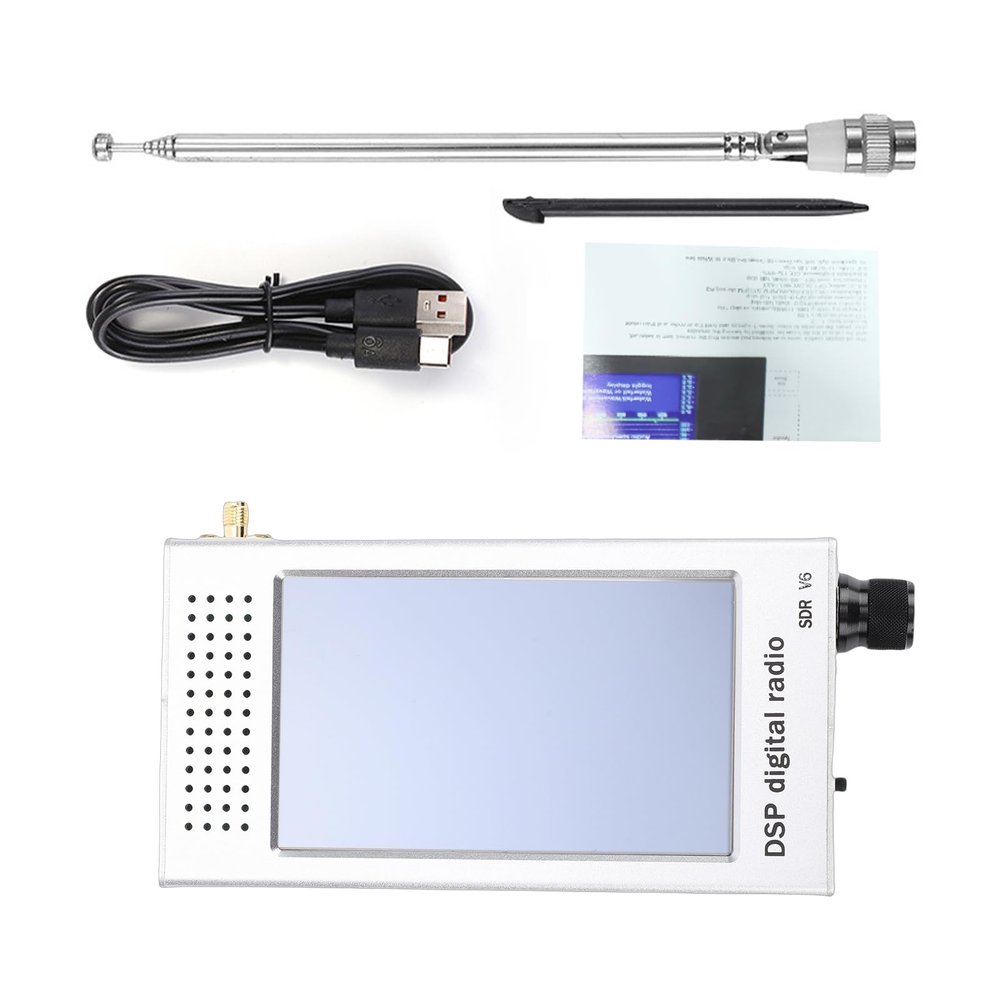

PackageList:
1 x Shortwave Receiver
1 x Antenna
1 x Pen
1 x Charging Cable
1 x User Manual
