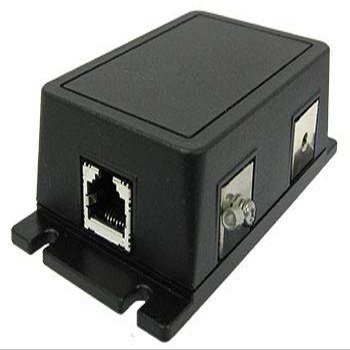

Antenna Technology, Protects LAN Connected Devices from Lightning SPD for LAN, Designed for Vertical and Horizontal Installations, Side Access SA-LAN1000A

Description

• Protects network cameras and computers that connect to LAN lines
• DIN Rail (1.4 inches (35 mm) Mounting Adapter Included
• Fits JIS C 5381-21 (Category C2,D1 Compatible)
• Ministry of Land, Infrastructure, Transport and Tourism meet the design standards of building facilities
• Ministry of Land, Infrastructure, Transport and Tourism compliant with public construction construction standards

[Standards of Compliance]
JIS C 5381-21 compliant (Category C2, D1 compatible)
Meets the design standards of building facilities by the Ministry of Land, Infrastructure, Transport and Tourism
Compliant with the Ministry of Land, Infrastructure, Transport and Tourism Standard Specifications
Supports Gigabit Ethernet 1000BASE-T
Compatible with PoE Plus
RoHS compliant

Main Specifications:
Model Name: SA-LAN1000A
Name: SPD for LAN (Surge Protective Device)
Compliance Standard 10BASE-T (IEEE802.3i)
100BASE-TX (IEEE802.3u)
1000BASE-T (IEEE802.3ab)
PoE Standard PoE (IEEE802.3af) / PoE Plus (IEEE802.3at)
Electrical Characteristics CAT5e
Transmission loss less than 1.0 dB
Maximum Allowable Power (PoE) 30W (PoE Plus)
Maximum continuous working voltage (PoE) DC 60 V (PoE Plus)
Shock wave current tolerance: 5 kA (8/20) s
DC discharge starting voltage 90 V
Shock wave discharge starting voltage below 600 V (1kV/s)
External Dimensions (W x D x H): 2.1 x 4.0 x 1.2 inches (54.3 x 102 x 3
Weight: Approx. 2.5 oz (75 g).
Connection plug RJ-45 x 2
