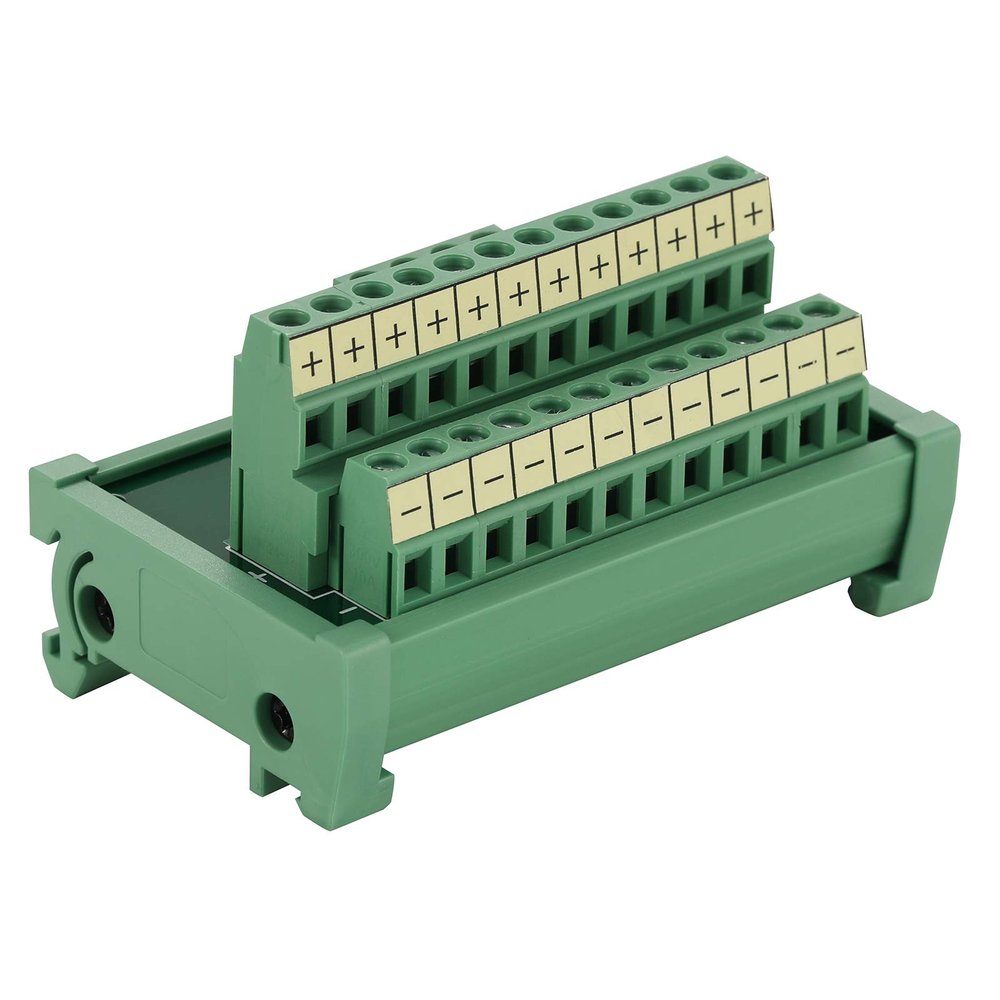

ANMBEST 2 in 12 Out Terminal Blocks Module, 25A DIN Rail and Panel Mounting Power Distribution Breakout Board for PLC Servo Power Amplifier

Description

• This is a 2 in 12 out power distribution module, widely used in PLC, servo, DIN track installation, power amplifier, Home electrical, etc.
• DURABLE: PA66 is used for insulation material, and high-strength copper alloy is used for screws and crimping frame. Strong conductivity, firmness and stability, and long service life.
• EASY TO USE: These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB.
• Compact structure, C45(35mm) rail installation, high efficiency.
• 300V rated voltage, 25A rated current, can meet most of the needs of life.

Specifications:
Rated voltage: 300V
Rated current: 25A
Pin and cage: Brass
Terminal pitch: 5mm
PCB Material: FR4
Input Cable Specification: 26-14 AWG / 0.5mm~2.5mm
Output Cable Specification: 26-14 AWG / 0.5mm~2.5mm
Contact resistance: 20 m
Rail Width: C45(35mm)
Size: 78mm x 48.6mm x 46.48mm / 3.07" x 1.91" x 1.83"(L x W x H)
Package inlcuded:
1x 2 in 12 Out DIN Rail and Panel Mounting Power Distribution Module
