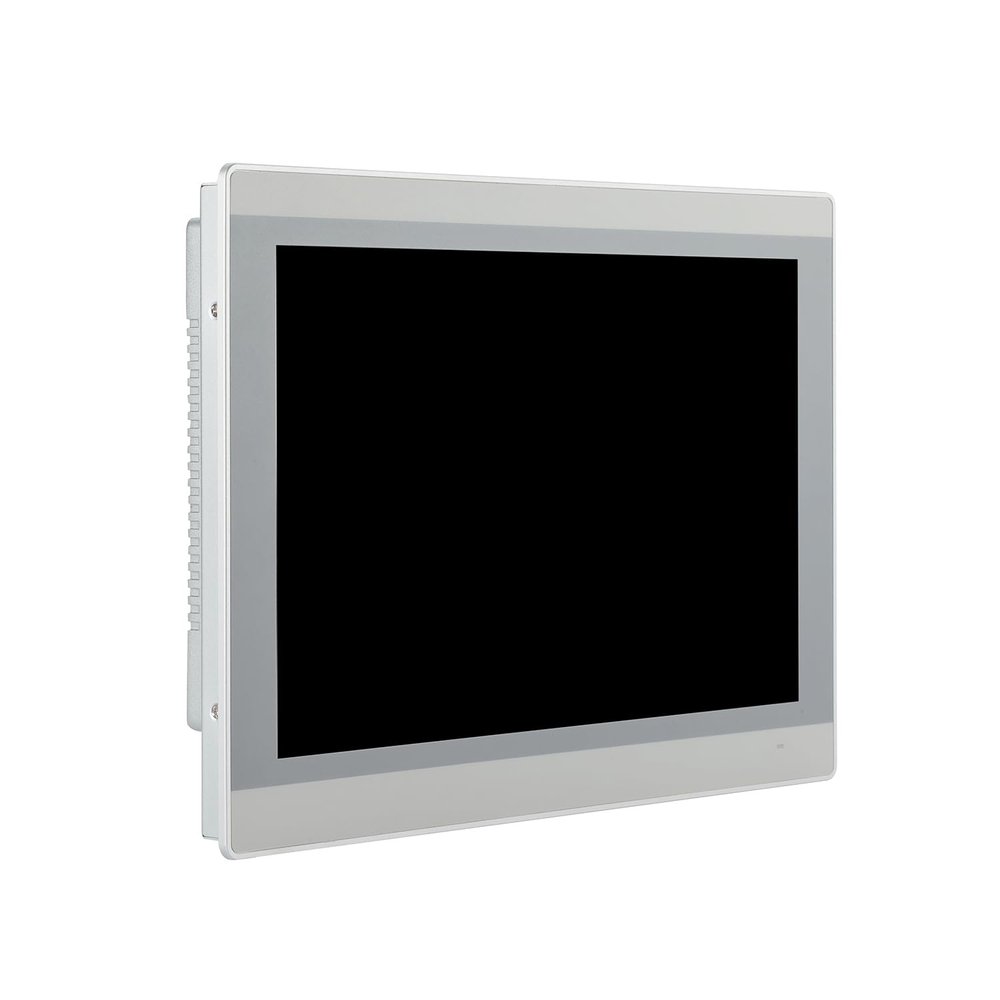

ANDAQI 13.3 Inch TFT LED Industrial Panel PC, High Temperature 5-Wire Resistive Touch Screen, 3th Core I5, PW31, VGA, HDMI, LAN, 2 x COM, 0 RAM, 0 Storage, Barebone No System

Description

• 13.3 inch tft led industrial grade touch panel pc, front panel protection IP65, high temperature 5-wire resistive touch screen, typical 1280 x 800 resolution, powered by intel gen 3th core i5 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
• HUNSN PW31 designed with 12v dc, hdmi, vga, 4 x usb2.0, lan, audio-in&out, 2 x com, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
• Size at 334.2 x 229.85 x 52.5mm, 3.4kgs, 12v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN PW31
Panel: 13.3" TFT LED panel, front panel protection IP65
CPU: Intel I5 Gen. 3th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 4 x USB2.0, LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 334.2 x 229.85 x 52.5mm
Weight: 3.4kgs
Opening Hole: 326 x 232mm
Resolution: 1280 x 800
Perspective: 70L, 70R, 55T, 55B
Brightness: 300cd/m2
Contrast: 800
Backlight Life: 20,000 hours min.
Touch Screen: High temperature five-wire resistive touch screen
Transmittance: 805% at 550 nm wavelength
Durability Touch Count: 35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50C with SSD, 0 ~ 40C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW31 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
