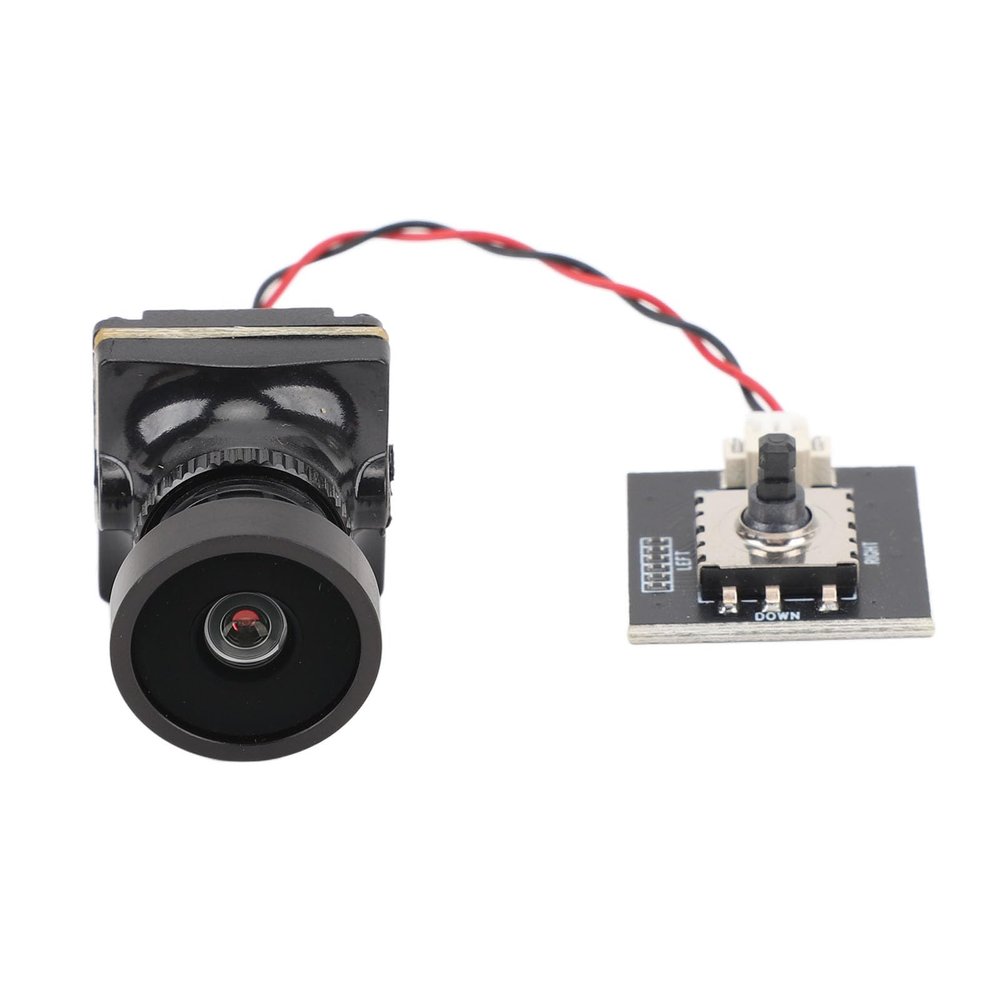

Alomejor 1500TVL WDR Wide Dynamic Range Starlight Sensor Miniature FPV Camera Lens 125 Degree FOV OSD Adjustment

Description

• Miniature FPV Camera: Wide Dynamic Range 1500TVL resolution, super wide dynamic range with WDR technology, captures vivid images in various conditions such as indoor, outdoor, and night scenes under sufficient lighting. FOV 125 for immersive visuals.
• Superior Image Sensor: Equipped with a 1/1.8'' starlight sensor, this miniature FPV camera features OSD internal adjustment, 0.00001 lx low light performance, and supports both NTSC/PAL and 16:9/4:3 image ratios for versatile use.
• Compact Size: Measuring 19mm x 19mm, this lightweight FPV camera is easy to install and great for FPV racing. It offers exceptional performance with 1500TVL resolution in a small and portable design.
• Wide Voltage Range: Operating on DC 4.527V, this miniature camera delivers low latency, low power consumption, and excellent stability. It is user friendly, allowing for easy installation and adjustment with JST connector.
• Sturdy Construction: Made of premium ABS material, this miniature FPV camera is lightweight and ensures good image quality while reducing weight on the drone. Enjoy clear and footage for a remarkable FPV flying experience.

1. Miniature FPV Camera: Wide Dynamic Range 1500TVL resolution, super wide dynamic range with WDR technology, captures vivid images in various conditions such as indoor, outdoor, and night scenes under sufficient lighting. FOV 125 for immersive visuals.
2. Superior Image Sensor: Equipped with a 1/1.8'' starlight sensor, this miniature FPV camera features OSD internal adjustment, 0.00001 lx low light performance, and supports both NTSC/PAL and 16:9/4:3 image ratios for versatile use.
3. Compact Size: Measuring 19mm x 19mm, this lightweight FPV camera is easy to install and great for FPV racing. It offers exceptional performance with 1500TVL resolution in a small and portable design.
4. Wide Voltage Range: Operating on DC 4.527V, this miniature camera delivers low latency, low power consumption, and excellent stability. It is user friendly, allowing for easy installation and adjustment with JST connector.
5. Sturdy Construction: Made of premium ABS material, this miniature FPV camera is lightweight and ensures good image quality while reducing weight on the drone. Enjoy clear and footage for a remarkable FPV flying experience.

Spec:
Item Type: FPV Drone Camera Lens
Material: ABS
Image Sensor: 1/1.8in
Horizontal Resolution: 1500TVL
TV System: NTSC and PAL (Selectable)
Image: 16:9 and 4:3 (Selectable)
WDR: Super WDR (HDR)
Minimum Illumination: 0.00001 lx
Lens: 5MP
Color: Black
Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000
S/N Ratio: >60dB
Video Output: CVBS
OSD: Supported
DNR: 3 DNR
FOV: 125 degree
Language: (English/Chinese/Traditional Chinese//Spanish/Italian/French/Polish/Portuguese/Japanese)
Wide Power Input: DC: 4.5-27V
Operating Temperature: -20C~+60C

Package List:
1 x FPV Lens
