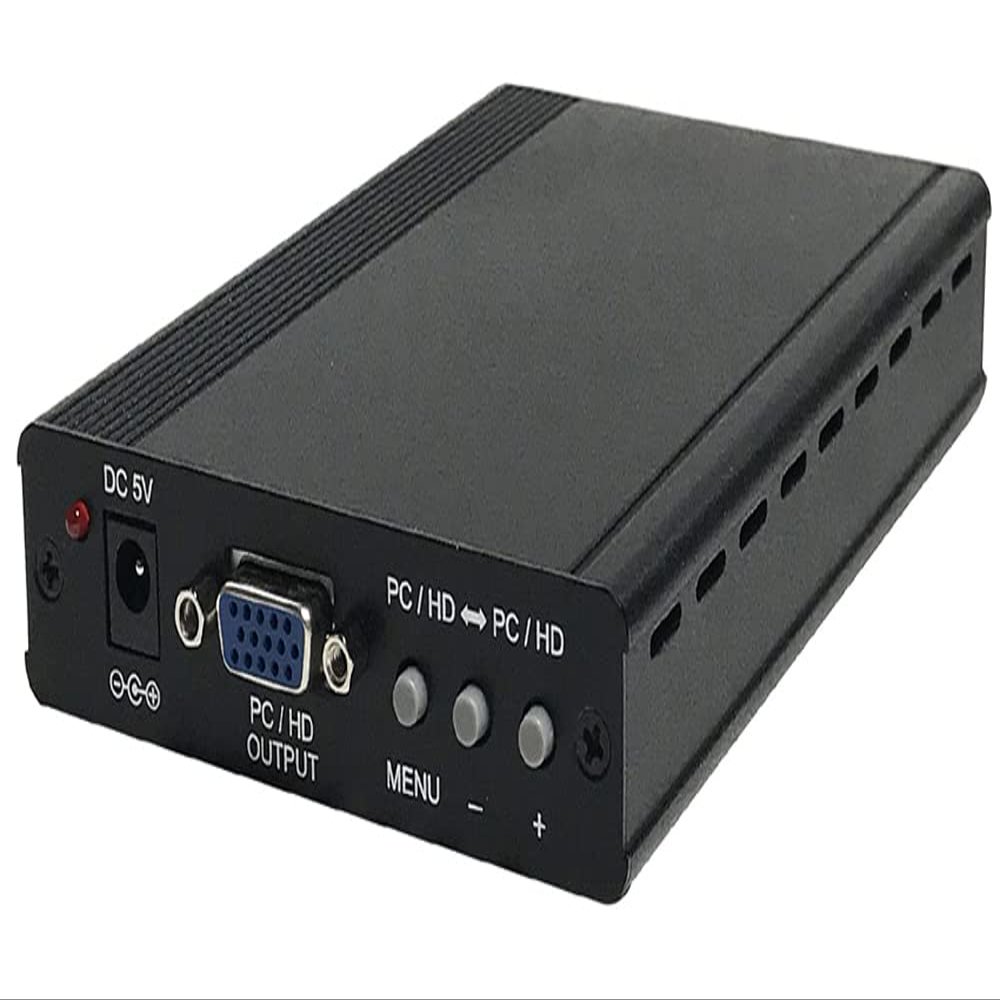

AllAboutAdapters All-in-1 RGB CGA VGA HD Component Video to VGA HD Component Video Scaler

Description

• All-in-1 video format converter and scaler solution for CGA RGB, VGA/RGBHV and HD component video feeds.Supports RGB inputs in the format of RGBHV, RGB H+V or RGsB(sync on G).Supports standard CGA type RGB signals that have 15K.62/15.73hz(Hf) with 50/60hz(Vf).
• Supports legacy computers with compatible RGB output timing.Great replacement display solution for those older CGA type RGB equipments.Supports video format cross conversion between VGA and component video
• Supports VGA to VGA up/down scaling and component video to component video up/down scaling.Converting computer VGA pixels to HD component video for big screen display.Scale PC or HDTV resolutions up or down to fit your needs
• Selectable VGA or component video output resolutions with resolution up to 1920x1200 or 1080p.Converting component video to VGA type for LCD monitor or projector displays.Displaying computer screen on a HDTV display through component video connection
• Auto detection of video input format and resolution.Automatic 3:2 pull-down and 2:2 pull-down detection and recovery. Built-in system memory for keeping user's last configuration after power-off.Easy on-screen OSD setup menu for input/out format selection, color element adjustment and so on

This multi-format video scaler is an all-in-1 solution for legacy RGB, computer VGA and HD component video resolution scaling up/down and video format cross conversion.

The output resolution and refresh rate is manually selectable via push buttons and on-screen system menu.

Selectable Component Video YPbPr Output And VGA Output
This PC HD video scaler can handle your HDTV and PC applications nicely with flexible video signal cross conversion between CGA, VGA and component RGB or YPbPr video input.

It can be set to output in HD/SD component video format or VGA format.

15Khz CGA To VGA Component Video Converter
This scaler can also upgrade the legacy 15Khz CGA type RGB video signals from sources like arcade game boards to VGA pixels or component YPbPr signal.

Legacy RGB devices including arcade game boards or older gaming computers with CGA type signal can be up converted by this scaler at VGA or HD resolution for display.

The supported CGA RGB input can be RGBHV, RGB H+V or RGsB.
[Note]: The horizontal frequency of the CGA input must be either Hf=15.734kHz or 15.625kHz.

PC VGA To Component Video Scan Converter
This scaler can also convert computer VGA type signal into component YPbPr or YUV format at selectable HD resolution up to 1080p.

Component YUV YPbPr Video To VGA RGBHV Scaling
This scaler can also convert component YPbPr or YUV video to selectable VGA resolutions for displaying HD video on a VGA display.

Computer VGA To VGA Scaling
This unit can scale up or down the VGA output resolution from computer or CCTV DVR as needed.

Component YPbPr to YPbPr Video Scaling
This scaler can scale up or down the component RGB input to different component YPbPr resolution up to 1080p.
