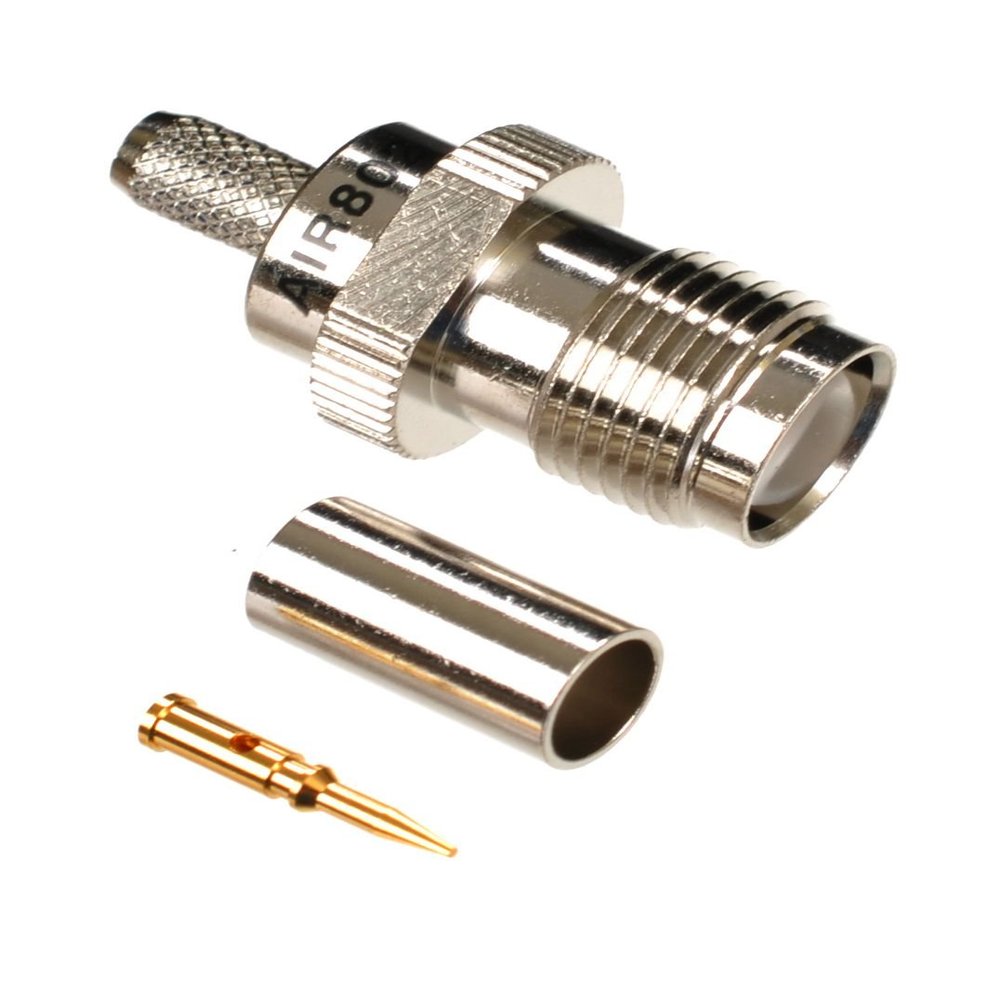

AIR802 Reverse-Polarity (RP) TNC Jack (Female) Crimp Connector for Cable Types CA195, RG58/141/142, Times Microwave's LMR195, Belden 8240/8219

Description

• Impedance 50 ohms
• Frequency Range DC ~ 11 GHz
• Gold Plated Brass Pin - Body Nickel Plated Brass
• Insertion Loss .20 dB Max.- Mating Torque 15 inch pounds Max.
• Cable Retention 30 lbs. Pull Mating 7/16-28 UNEF Threaded Coupling

AIR802 manufactures high precision and performance connectors. Connector selection is extremely important to insure proper operation and reliability. Poorly constructed connectors will cause higher VSWR and insertion loss resulting in electrical noise and intermittent issues. In choosing connectors, it is important to match one to the type of cable being used, the impedance (50 versus 75 ohms), the frequency support, insertion loss, voltage rating and environmental specifications. This connector is a RP-TNC jack (female) for RG58 and 195-Series cable. Connectors can be a bit confusing regarding the gender. There are also Reverse Polarity (RP) TNC and regular TNC connectors. RP-TNC is common with many wireless products. The RP-TNC jack is a female connector. The threads are on the outside and the pin protrudes from inside the connector. This causes confusion for many not familiar with various connector types leading them to believe that this is the male, however it is the female.
Specifications
Impedance: 50 ohms
Frequency Range: DC ~ 11 GHz
Voltage Rating: 500 Volts Peak
Dielectric Withstanding Voltage: 1500 Volts RMS
Insertion Loss: .20 dB Max.
Body: Nickel Plated Brass
Contact: Gold Plated Brass
Insulator: TFE
Ferrule: Nickel Plated Brass
Cable Attachment: Hex Braid Crimp
Center Conductor Attachment: Crimp or Solder
Cable Retention: 30 lbs. Pull
Mating: 7/16-28 UNEF Threaded Coupling
Mating Torque: 15 inch pounds Max.
Temperature: -67F to 185F (-55C to 85 C)
RoHS Compliant: Yes
Corrosion: MIL-Std. 202 Method 101 (Test Condition B)
Temperature Cycling: MIL-Std. 202 Method 102 (Test Condition D)
Altitude: MIL-Std. 202 Method 105 (Test Condition C)
Vibration: MIL-Std. 202 Method 204 (Test Condition D)
Moisture Resistance: MIL-Std. 202 Method 106
