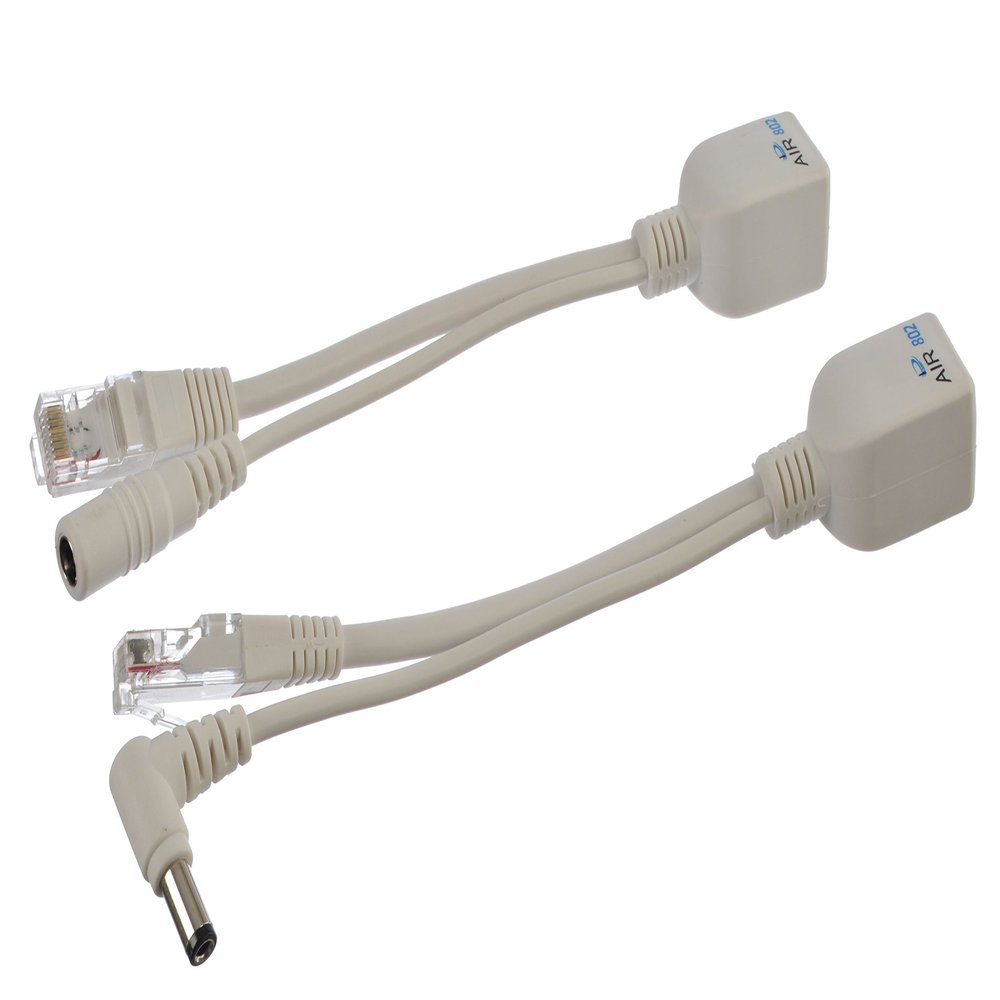

AIR802 Passive Power-Over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.5 mm Right Angle Jack DC Size Connectors

Description

• Passive PoE Injector-Splitter Kit with Right Angle Jack
• 5.5 x 2.5 mm DC Barrel Connectors

AIR802 part number POEPASS-02RA is a passive PoE injector/splitter kit with 5.5 x 2.5 mm size DC connectors. The jack is a right angle.
Injector Plug: 5.5mm x 2.5mm
Splitter Jack: 5.5mm x 2.5mm Right Angle
Overall Length: 19 cm (7.5 inches)
Network Type: 10BASE-T, 100BASE-T
Data Pins: 1&2 and 3&6
Power Pins: 4&5 and 7&8
Maximum Voltage: 60vdc
Operating Temperature: -40C ~ 60C (-40F ~ 140F)
Note: Voltage drop occurs over distance. The amount of voltage drop depends on the wire size (AWG), current and variables and should always be calculated to insure sufficient voltage will exist at the powered device. Devices using 5vdc input are most likely to have the issue. Consider the AIR802 model PSA612V-NA-B power supply with multiple voltage outputs to increase the available voltage.
