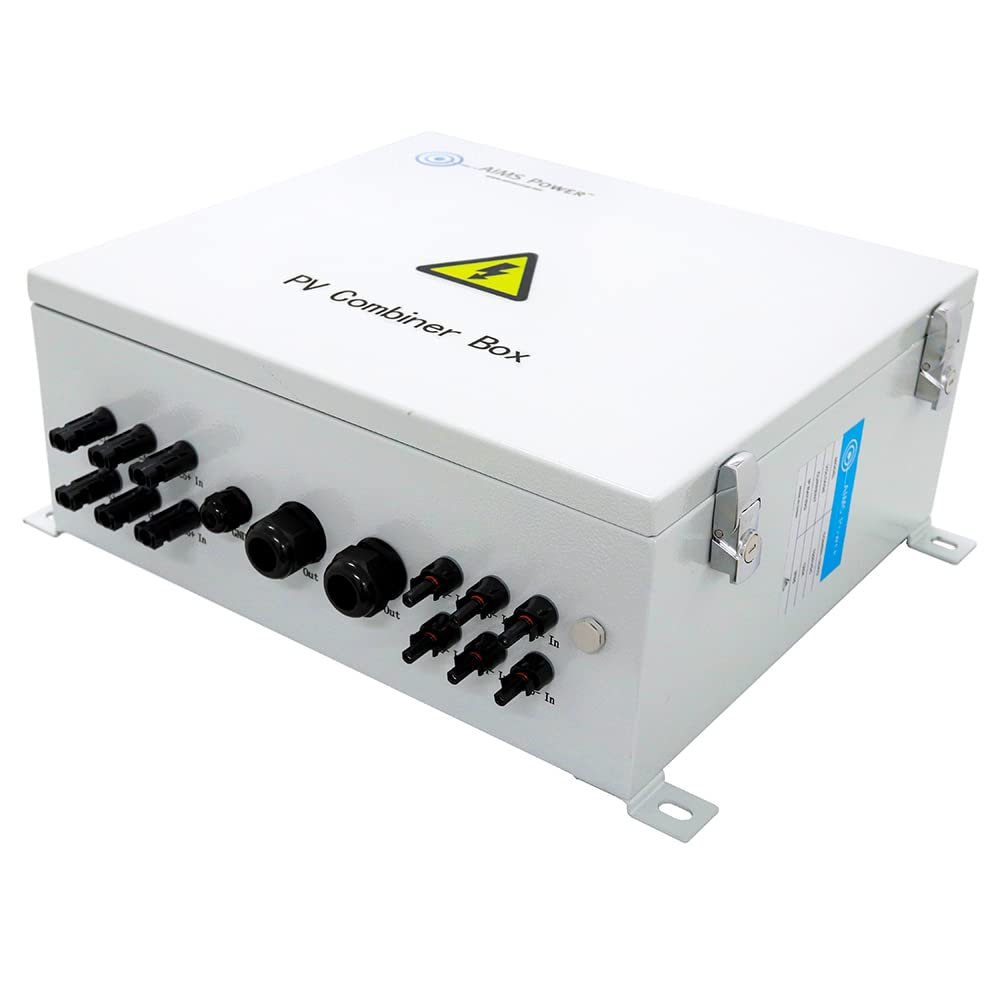

AIMS 6 String Solar Array Combiner Box 120A 200 V 6 Inputs 20KW Prewired

Description

• High Capacity Solar Array Combining: Supports up to 6 PV input strings and delivers up to 12KW output power, making it suitable for larger solar installations requiring centralized DC aggregation.
• Pre-Wired for Faster Installation: Factory-wired internal components reduce installation time and eliminate the need for separate branch connectors, breakers, or disconnect equipment.
• MC4 Plug-and-Use Connectivity: Integrated MC4 input and output connectors allow installers to connect solar strings quickly without hardwiring, simplifying system deployment and maintenance.
• Integrated Electrical Protection: Includes diode protection, lightning protection, DC output and ground protection, and a 125A resettable output breaker to safeguard solar arrays and downstream equipment.
• 30 Years of Power Engineering: Put serious technical experience into your setup. Count on an established brand that stands firmly behind its products.

Simplify large solar array wiring with a rugged 6-string combiner box that safely consolidates multiple PV inputs into one protected output. The AIMS Power Solar Array Combiner Box provides a centralized solution for combining multiple solar panel strings into a single output for easier installation, maintenance, and system management. Designed for large PV systems up to 12KW, this pre-wired 1000V DC combiner box reduces installation complexity by eliminating the need for separate breakers, branch connectors, or disconnect switches. With MC4 type input and output connectors, installers can quickly connect solar strings without hardwiring, making the system faster and safer to deploy. The heavy duty NEMA 3R / IP65 rated enclosure protects internal components from weather exposure while integrated protections help safeguard the system from electrical faults. Users: Consolidates multiple solar panel strings into one organized connection point, reducing wiring clutter and simplifying system maintenance. Installers: Pre-wired design with MC4 connectors, touch safe fuse holders, and integrated protection components speeds installation and reduces additional hardware requirements. AIMS Power designs solar balance-of-system equipment to handle demanding off-grid and grid-tied installations. This combiner box integrates pre-wired internal protection components, sealed weatherproof housing, and industrial-grade electrical hardware to ensure reliable long-term performance in high-power solar systems. The result is a durable, installation-ready solution built to simplify complex solar array wiring.
