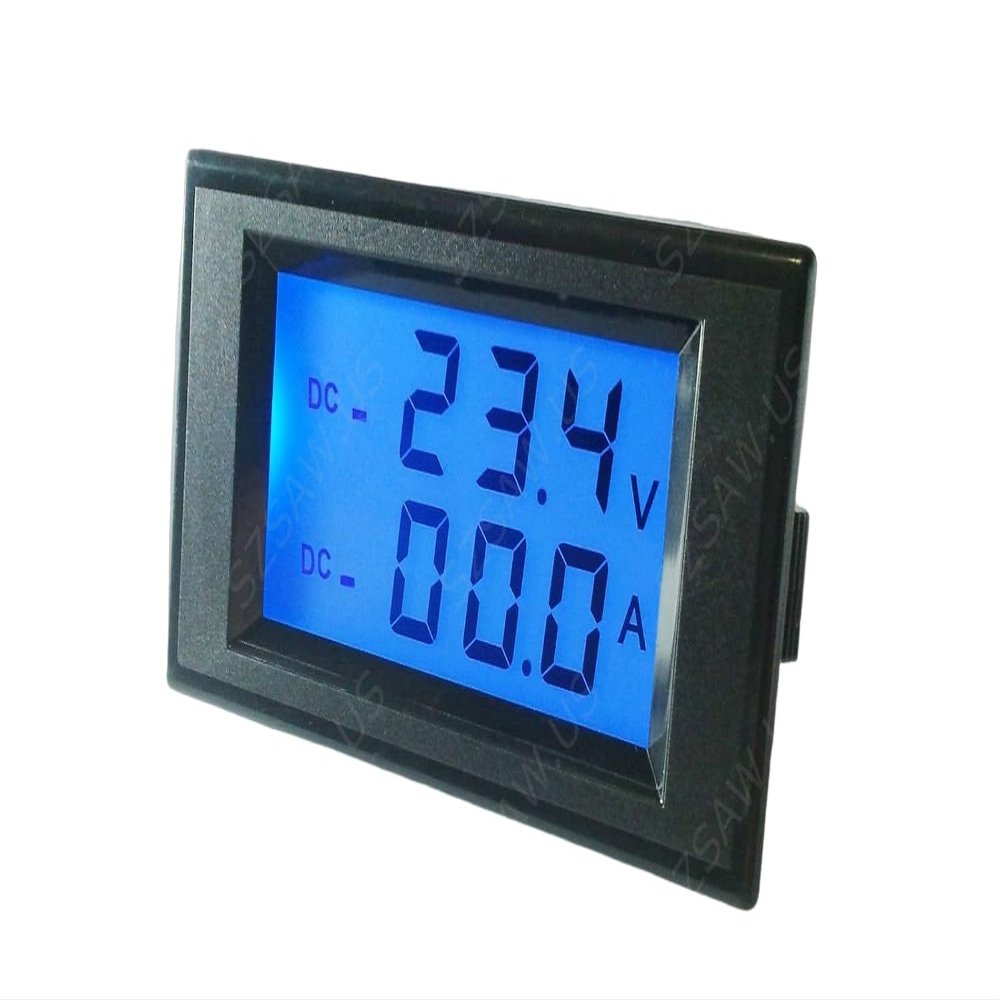

AILI DC Digital Panel Meter 0-200V +-20A Positive Negative Current Self-Powered Battery Detector

Description

• Combines two functions in one Current (A), Voltage (V)
• It can be powered by the same power being measured, no need ISOLATED power.
• It is miniature, accuracy, and more cost-effective.
• Micro switch on panel can change displaying value conveniently.
• 1 digital meter can use as 2, and save space and bring more economy for user.

Product Description:

Please contact us if you want the item that can be powered by 24Vdc.

Power Supply:12Vdc
Range:DC -199.9~+199.9V -20~+20A
Sampling rate:About 2-3 time / sec
Accuracy:+ / -1% + / -2LSB
Resolution:0.1V / 1A
Consumption:<30mA
Over Range:'1'
DIN Size:70mm(L)41mm(W)40mm(D)
Panel Cutout:68mm38mm
Meter Weight:30g

The auction includes
1*Combo meter
1*Shunt
1*Wiring diagram
