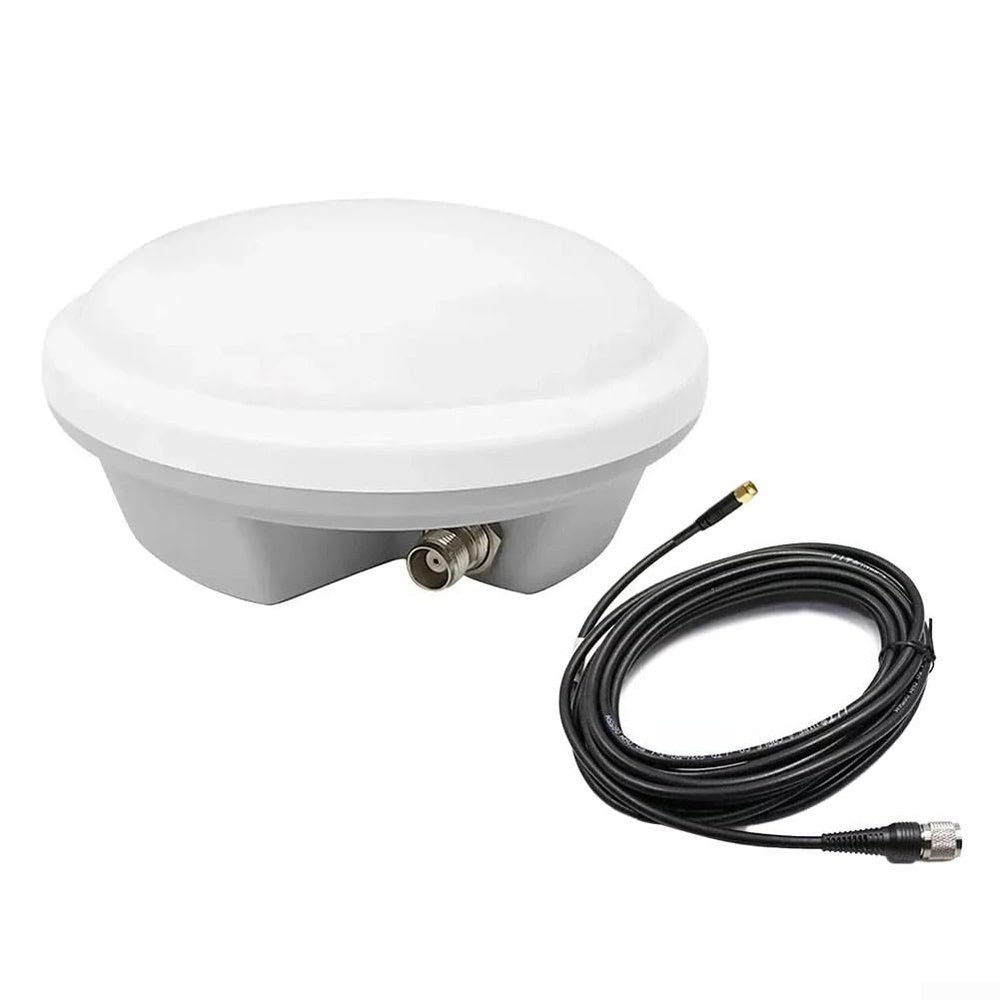

AG-35H GNSS Antenna L1 L2 L5 GPS BDS GLONASS/Galileo Full-Frequency Measurement With 5DBi Gain RHCP For Surveying And Agricultural Mapping, With Magnetic Mount, TNC Connector(TNC-SMA)

Description

• High-Precision GNSS Coverage: Designed for GPS, Glonass, BDS, and Galileo-systems, this AG-35H measurement GNSS antenna captures L1/L2/L5 and full-band signals, delivering stable reception across 360 for receiver use in challenging outdoor environments.
• Full-Frequency Measurement Capability: The four-star full-frequency antenna structure with four feed points supports multiple satellite bands including B1/B2/B3 and E1/E5a/E5b/E6, enabling accurate agricultural mapping or land survey applications.
• Enhanced Signal Performance: Featuring >5.0dBi gain, RHCP polarization, and 2.0mm phase center error, this GNSS high-precision measurement antenna offers consistent positioning accuracy with minimal deviation for professional fieldwork.
• Robust Build & Easy Installation: Made from ABS and metal for long lasting operation, includes magnetic suction cup and 5/8-11 mount options, plus side outlet for TNC-TNC or TNC-SMAM connecting wire, adapting to varied installation needs.
• Reliable Field Results: Double-layer superposition mechanism achieves 1.0mm phase center repeatability, combined with low noise gain of 402.0dB, insuring steady, precise data capture for agriculture, construction, and mapping tasks.

Features:
* Manufactured and tested under strict quality control standards.
* Stable performance and high reliability.
* AG-35H GNSS Antenna Magnet GPS L1 L2 L5 for Galileo Glonass BDs Car Roof for Agricultural Mapping AG35.
* Four-star full-frequency GNSS measurement antenna side outlet.

Specifications:
Part name: Full-frequency measurement antenna
Connecting wire (optional): TNC-TNCTNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: Four feed points, double-layer superposition structure
Supported satellite signals: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L-Band
Maximum gain: >5.0dBi@FC
Polarization: Right-hand circular polarization (RHCP)
Antenna axis ratio @ : <1.5dB
Horizontal coverage angle: 360
Characteristic impedance: 50 ohm
Phase center error: 2.0mm
Phase center repeatability: 1.0mm
Working frequency: 1164MHZ~1300MHZ;1525MHZ~1621MHZ
Low noise gain: 40+2.0dB (Typ. @25C)
Installation : 5/8-11 and magnetic suction cup

Package contents:
1 x full-frequency measurement antenna
1 x connecting cable
