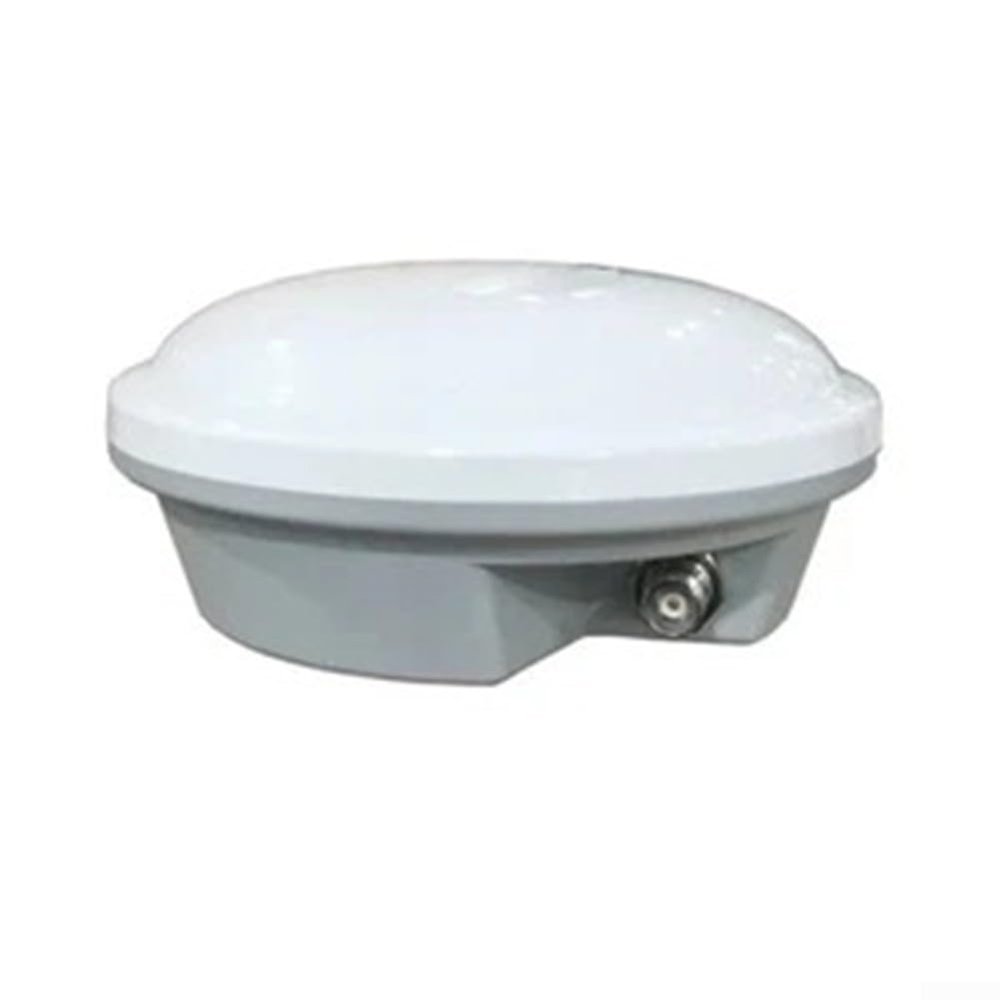

AG35 GNSS Measurement Antenna L1 L2 L5 GPS Fit For Galileo For GLONASS For Beidou, Precise Navigation Antenna Full Band High Gain For Farming Surveying And Mapping(Single antenna)

Description

• [DESIGNED FOR EXTREME CONDITIONS] Featuring an IP67 waterproof and dustproof casing that tolerates temperatures between -40C and 85C; for use in harsh farming environments.
• [INTERFERENCE RESISTANT DESIGN] Suppresses electromagnetic interference to steady signal reception in complex farmland scenarios.
• [QUICK AND SIMPLE INSTALLATION] Comes with an SMA/TNC interface that connects easily to agricultural machinery systems without any driving requirements.
• [LONG OPERATING LIFE] This sensitivity antenna supports up to 50,000 hours of continuous use; its durability is enhanced by a lifespan that exceeds ordinary antennas by 40%, catering perfectly to agriculture and land leveling needs.

Features:
* Support GPS L1/L2/L5, for Galileo, GLONASS, Beidou full-band signals, differential technology to achieve 2.5cm agricultural surveying and mapping accuracy.
* IP67 waterproof and dustproof shell, resistant to -40C~85C extreme temperature, suitable for tractors, seeders and other agricultural machinery operating environments.
* Suppress electromagnetic interference to stable reception in complex farmland environments.
* SMA/TNC interface is suitable for mainstream agricultural machinery systems, no need to drive, ready to install.
* High sensitivity antenna design, support 50,000 hours of continuous operation, 40% longer life than ordinary antennas.
* Suitable for high-load scenarios such as agriculture and land leveling.

Specification:
Part Name: Full Range Measurement Antenna
Connecting cable (optional): TNC-TNC, TNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: four feed points, double-layer superposition structure
Supported satellite signals: GPS: L1/L2/L5; BDSB1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L bands
Maximum gain: >5.0dBi@FC
Polarization: Right-handed circular polarization (RHCP)
Antenna Axis Ratio @ : <1.5dB
Horizontal coverage angle: 360
Characteristic impedance: 50 ohms
Phase Error: 2.0mm
Repeatability of the Phase Center: 1.0mm
Working frequency: 1164MHZ~1300MHZ; 1525MHZ~1621MHZ
Low noise gain: 40 2.0dB (typical @25C)
Cable length: 5M
Mounting thread: 5/8-11

Package Contents:
Listing 1: 1 x Full-range measurement Antenna
Listing 2: 1 x Full Range Measurement Antenna 1 x TNC-TNC Cable
Listing 3: 1 x Full Range Measurement Antenna 1 x TNC-SMA Cable
