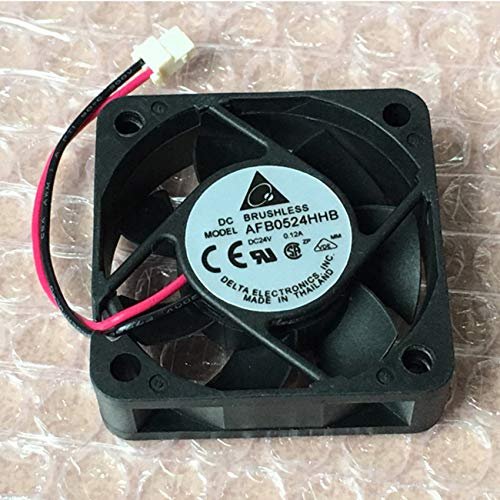

AFB0524HHB 5015 24V 0.17A 5CM 50X50X15mm Inverter Cooling Fan

Description

• Product Model: AFB0524HHB
• Rated voltage: DC 24V, input current : 0.12A.
• Size specification: 50*50*15MM
• Speed reference:6400 RPM,Air volume reference:16.24 CFM
• Wiring: 2-wire without terminal interface, Noise value:36 dBA

Frequency Converter Fan AFB0524HHB DC24V 0.12A Double Ball Axial Fan
Model: AFB0524HHB
Size: 50X50X15MM
Voltage: DC 24V
Voltage range: 14 ~ 27.6V
Current: 0.12A
Speed: 6400 RPM
Air volume: 16.24 CFM 0.460m3 / min
Wind pressure: 0.315 IN H2O
Noise: 36 d-BA
Temperature range: -10 .. 70 C
Estimated life: 25 C L10 estimated life of 40,000 hours
Bearing structure: maintenance-free double ball bearings
Direction of rotation: the wind is discharged from the bracket, facing the rotor counterclockwise rotation
Motor protection: fault protection and block lock protection
Material: glass fiber reinforced plastic, PBT shell, PA blade, environmental certification
Features: Maintenance-free double ball bearing, long service life, with adequate cooling air volume and wind
pressure
