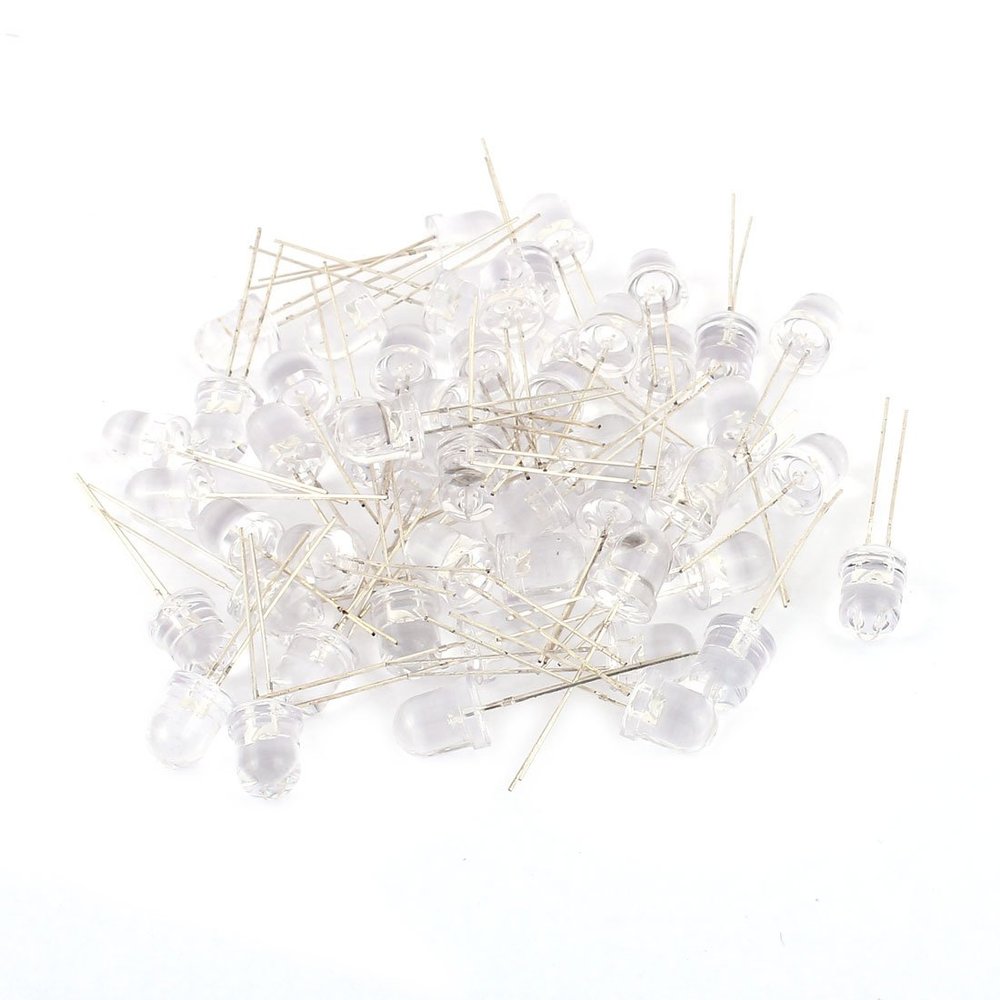

Aexit 50 Pcs Surveillance Video Equipment Low Power 850 Nano IR Infrared LED Diode SD-DR814C8 for Video Transmission Systems CCTV Camera

Description

• Country of Manufacture: CHINA; Material: Resin; Net Weight: 42g
• Package Content: 50 Pcs(+/-2%) x IR Infrared LED Diode; Model: SD-DR814C8
• Main Color: Clear; Size: 9.5 x 12mm(D*L)
• Input Voltage: 1.5V; Current: 60mA
• Terminal Number: 2; Wavelength: 850nm

Specifications:Absolute Maximum Rating:Ta=25C
DC Forward Current IF:50 mA
Pulse Forward current IFP:1000 mA
Reverse Voltage VR:5V
Power Dissipation PD:90 mW
Operating Temperature:Topr -40 ~ +95C
Storage Temperature:Tstg -40 ~ +100C
Pulse width=100s
Duty cycle=1/100
Electrical-Optical Characteristics:Ta=25C
DC Forward Current VF IF:20mA --- 1.45 1.50V
DC Reverse Current IR VR:5V --- --- 10 A
Dominant Wavelength D IF:20mA --- 850 --- nm
Radiant Intensity IV IF:20mA --- 48 --- Mw/sr
50% Power Angle 2 1/2 IF:20mA --- 60 --- deg
Suitable:CCTV Camera
IR light
Telecommunications
Medication
