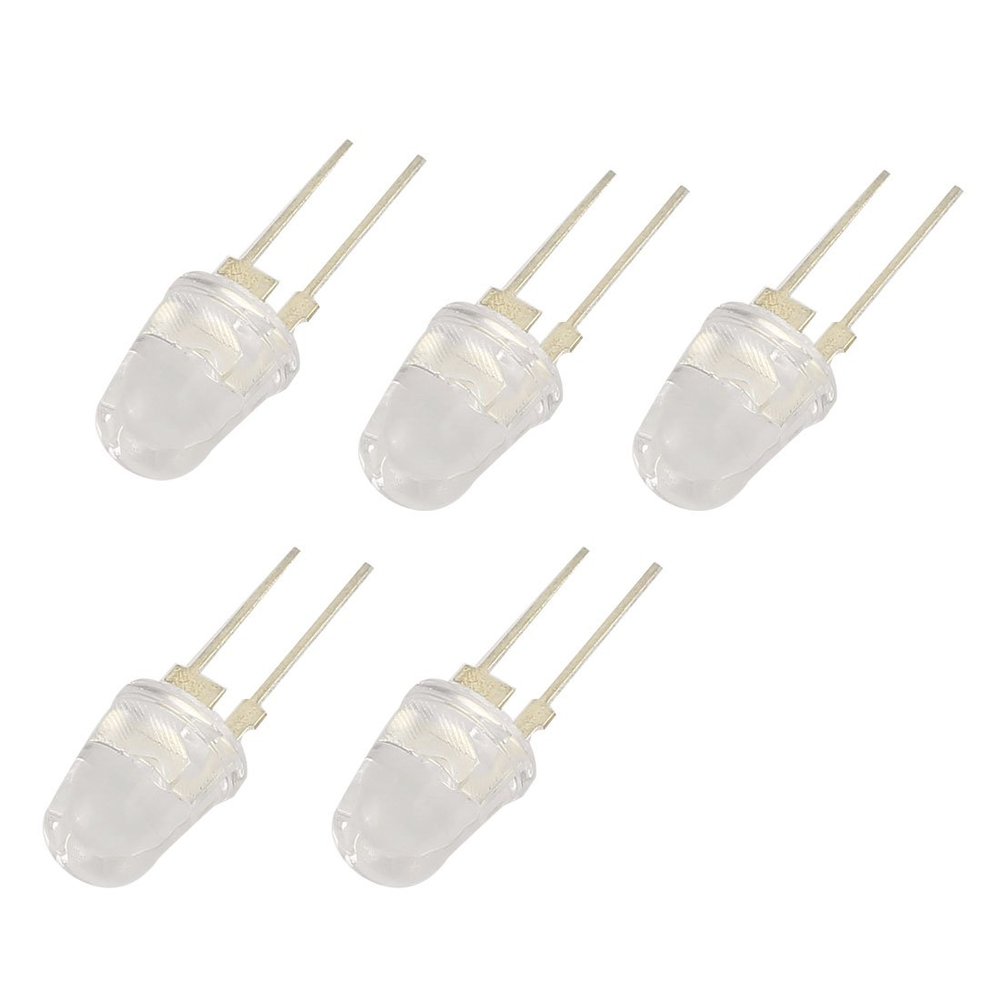

Aexit 5 Pcs High Power 850 Nano IR Infrared LED Diode SD-DR1040C8 For CCTV Camera (5aaeecbf3f0a1ed61c8daf0f668d503c)

Description

• Country of Manufacture: CHINA; Material: Resin; Net Weight: 11g
• Package Content: 5 Pcs x IR Infrared LED Diode; Model: SD-DR1040C8
• Main Color: Clear; Size: 10.5 x 13.5mm(D*H)
• Input Voltage: 1.5V; Current: 60mA (8656f8e0-2b17-11ea-990f-4cedfbbbda4e
• Terminal Number: 2; Wavelength: 850nm (Numro du terminal: 2; Longueur donde: 850 nm

Aexit 5 Pcs High Power 850 Nano IR Infrared LED Diode SD-DR1040C8 For CCTV Camera (5aaeecbf3f0a1ed61c8daf0f668d503c)
Specifications:Absolute Maximum Rating:Ta=25C
DC Forward Current IF:50 mA
Pulse Forward current IFP:1000 mA
Reverse Voltage VR:5V
Power Dissipation PD:90 mW
Operating Temperature:Topr -40 ~ +95C
Storage Temperature:Tstg -40 ~ +100C
Pulse width=100s
Duty cycle=1/100
Electrical-Optical Characteristics:Ta=25C
DC Forward Current VF IF:20mA --- 1.45 1.50V
DC Reverse Current IR VR:5V --- --- 10 A
Dominant Wavelength D IF:20mA --- 850 --- nm
Radiant Intensity IV IF:20mA --- 48 --- Mw/sr
50% Power Angle 2 1/2 IF:20mA --- 60 --- deg
Suitable:CCTV Camera
IR light
Telecommunications
Medication
Description in French
5 Pcs Haute Puissance 850 Nano IR Diode LED Infrarouge SD-DR1040C8 Pour Camra CCTV
Pays de fabrication: CHINE; Matire: Rsine; Poids net: 11g
Contenu de lemballage: 5 diodes infrarouges infrarouges IR x 5 pices; Modle: SD-DR1040C8
Couleur principale: Clair; Taille: 10,5 x 13,5 mm (D * H)
d'entre: 1.5V; Courant: 60mA
Numro du terminal: 2; Longueur donde: 850 nm
