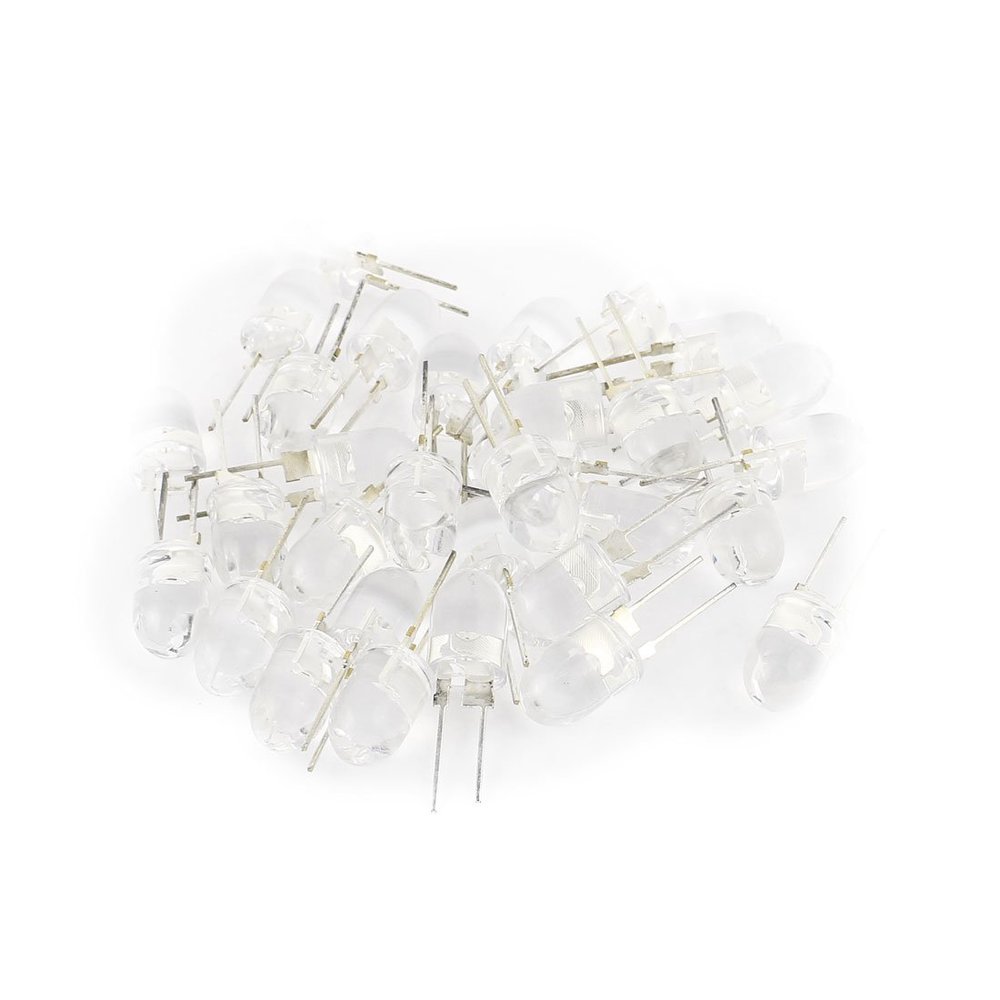

Aexit 30 Pcs High Power 840 Nano IR Infrared LED Diode SD-DR1040C9 For CCTV Camera (bae9f3be72d57da37c0c874da4bbf929)

Description

• Material: Resin; Net Weight: 50g; Package Content: 30 Pcs x IR Infrared LED Diode
• Model: SD-DR1040C9; Main Color: Clear
• Size: 10 x 15mm(D*L); Input Voltage: 1.5V
• Current: 60mA; Terminal Number: 2 (86573b8b-2b17-11ea-990f-4cedfbbbda4e
• Wavelength: 840nm; Country of Manufacture: CHINA (Longueur d'onde: 840nm; Pays de fabrication: CHINE

Aexit 30 Pcs High Power 840 Nano IR Infrared LED Diode SD-DR1040C9 For CCTV Camera (bae9f3be72d57da37c0c874da4bbf929)
Specifications:Absolute Maximum Rating:Ta=25C
DC Forward Current IF:50 mA
Pulse Forward current IFP:1000 mA
Reverse Voltage VR:5V
Power Dissipation PD:90 mW
Operating Temperature:Topr -40 ~ +95C
Storage Temperature:Tstg -40 ~ +100C
Pulse width=100s
Duty cycle=1/100
Electrical-Optical Characteristics:Ta=25C
DC Forward Current VF IF:20mA --- 1.45 1.50V
DC Reverse Current IR VR:5V --- --- 10 A
Dominant Wavelength D IF:20mA --- 850 --- nm
Radiant Intensity IV IF:20mA --- 48 --- Mw/sr
50% Power Angle 2 1/2 IF:20mA --- 60 --- deg
Suitable:CCTV Camera
IR light
Telecommunications
Medication
Description in French
30 Pcs Haute Puissance 840 Nano IR Infrarouge Diode SD-DR1040C9 Pour Camra CCTV
Matriel: Rsine; Poids net: 50g; Contenu de l'emballage: 30 pcs x diodes infrarouges infrarouge
Modle: SD-DR1040C9; Couleur principale: Transparent
Taille: 10 x 15mm (D * L); dentre: 1.5V
Courant: 60mA; Numro de terminal: 2
Longueur d'onde: 840nm; Pays de fabrication: CHINE
