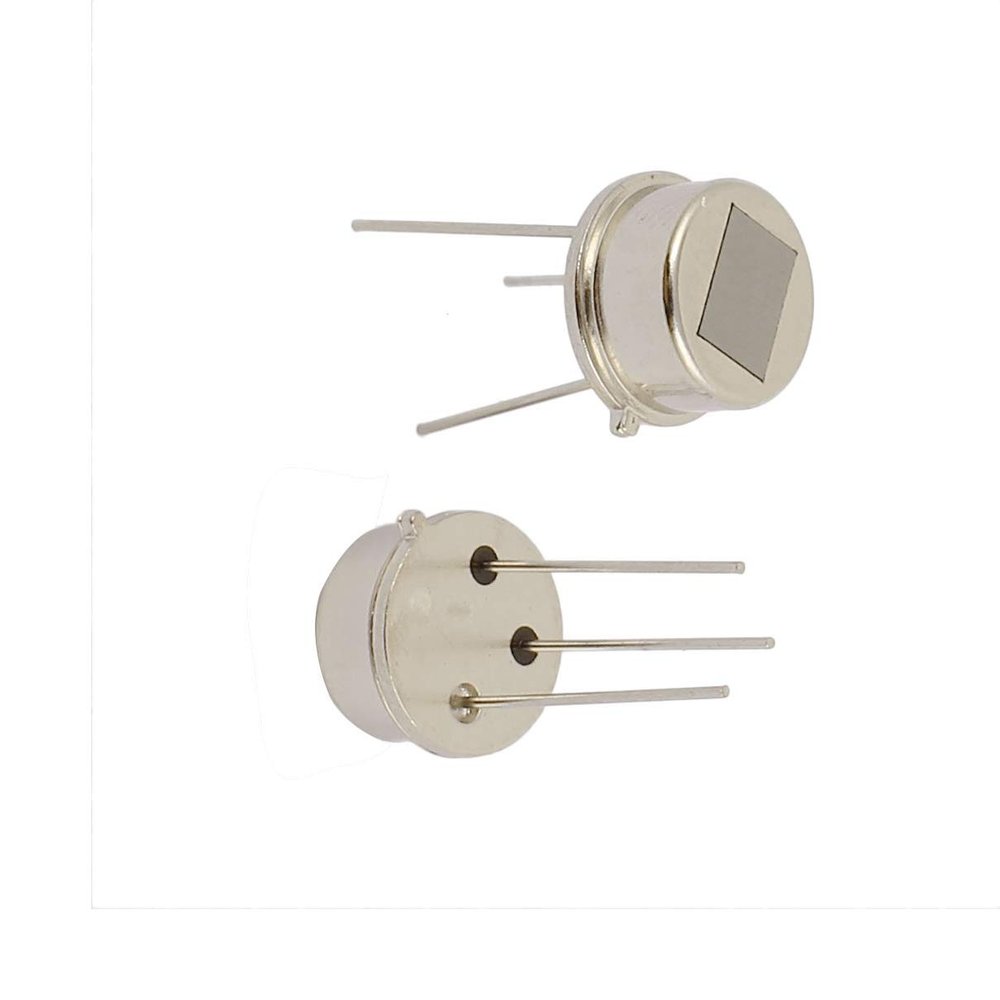

Aexit 2 Pcs Semiconductor Products D204B Pyroelectric Infrared Radial PIR Microprocessors Sensor Detector

Description

• Material: Metal; Net Weight: 2g; Package Content: 2Pcs x PIR Sensor; Model: D204B; Main Color: Silver Tone
• Body Size: 8 x 4mm/0.31" x 0.16"(D*T); Sensitive Area Size: 5 x 3.8m/0.2" x 0.15"(L*W); Pin Number: 3; Pin Size: 12 x 0.5mm/0.47" x 0.02"(L*D); Encapsulation Type: TO-5
• Supply Voltage: DC 3-15V; Offset Voltage: DC 0.3-1.5V; Operating Temp: -30C to +70C; Storage Temp: -40C to +80C; Wavelength: 5-14um
• Mini. Transmittance: 75%; Mini. Signal Output Vp-p: 3500mV; Mini Sensitivity: 3300V/W; Mini Detectivity: 1.4x108 cmHz 1/2/W
• Max. Noise Vp-p: 70mV; Max. Output Balance: 10%; IR Receiving Electrode: 2x1mm, 2 ; Country of Manufacture: CHINA

Description:Dual compensated sensing are applied to suppress the interference resulting from temperature variation with the EMI components. As a result, the operating stability of the sensor is greatly improved.
Applicance:
Widely used in security systems, burglar alarms, Induction door. light switch control and intellectualized toy, etc.
