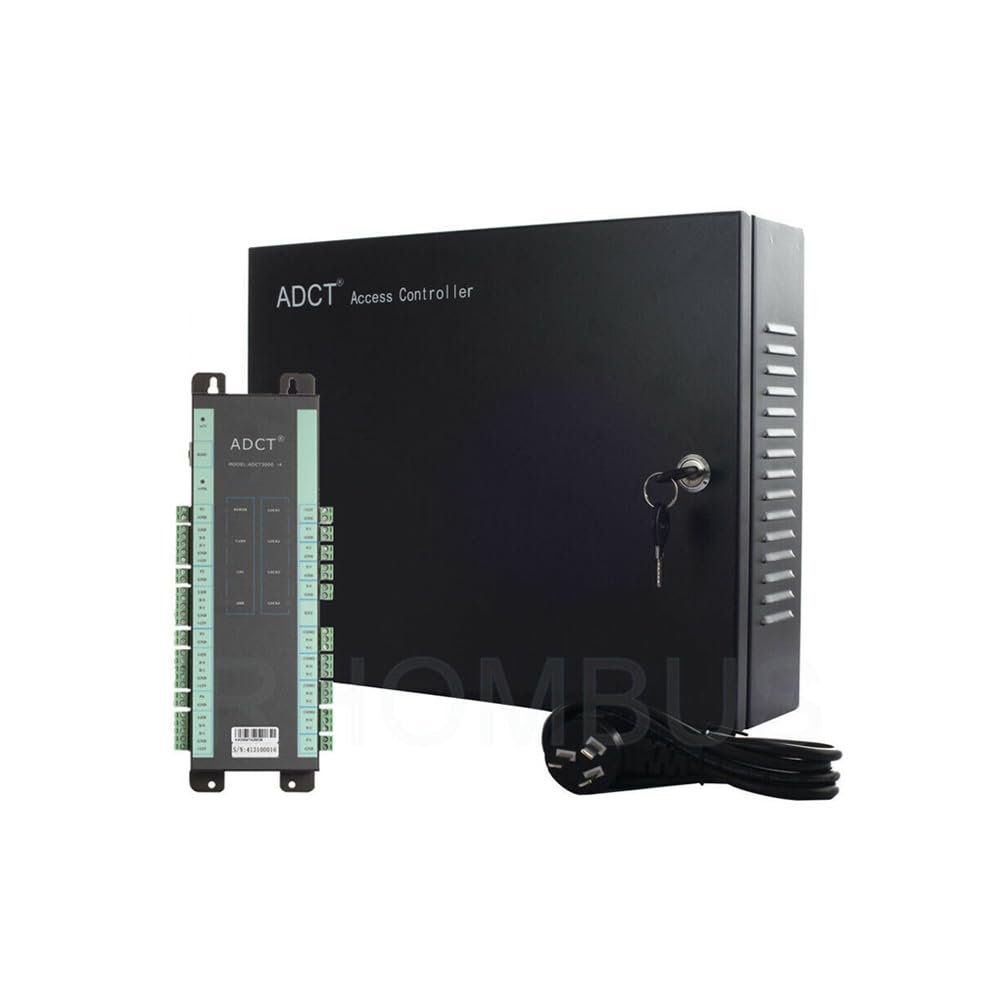

ADCT3000-4 Series High-end Industrial Access Controller W/Power Supply

Description

• Series High-end TCP/IP Industrial Access Controller W/ Power Supply

ADCT Series Hi-end Access Control Set ( With power supply and case)

Access controller is the soul and information hub of access control system.
ADCT3000 series access controller is specified designed as industrial level for hi-end access control user.
Name: ADCT3000Series Hi-end Access Control Set ( With power supply and case)
Models: ADCT3000-1 ADCT3000-2 ADCT3000-4
Door controlled: 12 4
Card reader input communication formatWiegand 26-40bit
Card users: 200,000
Event buffers storage: 200,000
Communication Type: TCP/IP
Package specification (with carton)40.5 * 30.5 * 9.6 cm
Package net weight(with carton)6.45kg
Net size: 37 * 29 * 9 cm
Net weight: about6.1 kg
Supported Software: English
Supported database: SQL2008 (compatible SQL2000, SQL2005)

ADCT3000 Series

High-end industrial Access controller
Based on 32-bit CUP High-speed intelligent ARM Platform,limitless expansion space
200,000 users 2000,000 event buffers Far above mass storage than the same class items.
Even thousand of large-scale access control system,swiping card records is real-time uploaded instantaneously.

Models: ADCT3000 -4

Basic parameter:
Door controlled4
Card Reader Connected4
Card reader input communication formatWiegand 26-40 bit
Card users200,000
Event buffers storage 200,000
Communication TypeTCP/IP
Function DescriptionControl 4 doors and 4 card readers ,four readers for enter ,four exit button
Size28 * 9.5 * 3.5 cm
Wiegant593 g
Case Sizeoptional37 * 29 * 9 cm
Poweroptional12VDC 4-7A
Circuit board power dissipationoptional> 500mA
Input for Card ReaderWiegand 26-40 bit(Compatible with all card reader under this protocol,such as Motorola , HID ,EM,Mifare etc.
Qty of Reader4 Pcs
Door Controled4 Pcs
Door opening time extending setting1-600 Seconds (Adjustable)
MAX Qty of ControllerNo Limit
Operation Temperature-40-70 advise -35-65
Operation Humidity10-90RHNon-condensation
Qty of User200,000 Users
Events Buffers200,000 Events buffers record
Power ProtectionHigh speed flash memery ,Never lose
Max distance from reader to controller100M , suggest within 80M
MAX distance between cotnrollersDepand on the network parameter of LAN or WAN
PackageAccess Controller ,Power Supply ,Case ,Cable ,Software CD ,User Manual ,Key

Package1x Access controller + 1x Iron box power supply
