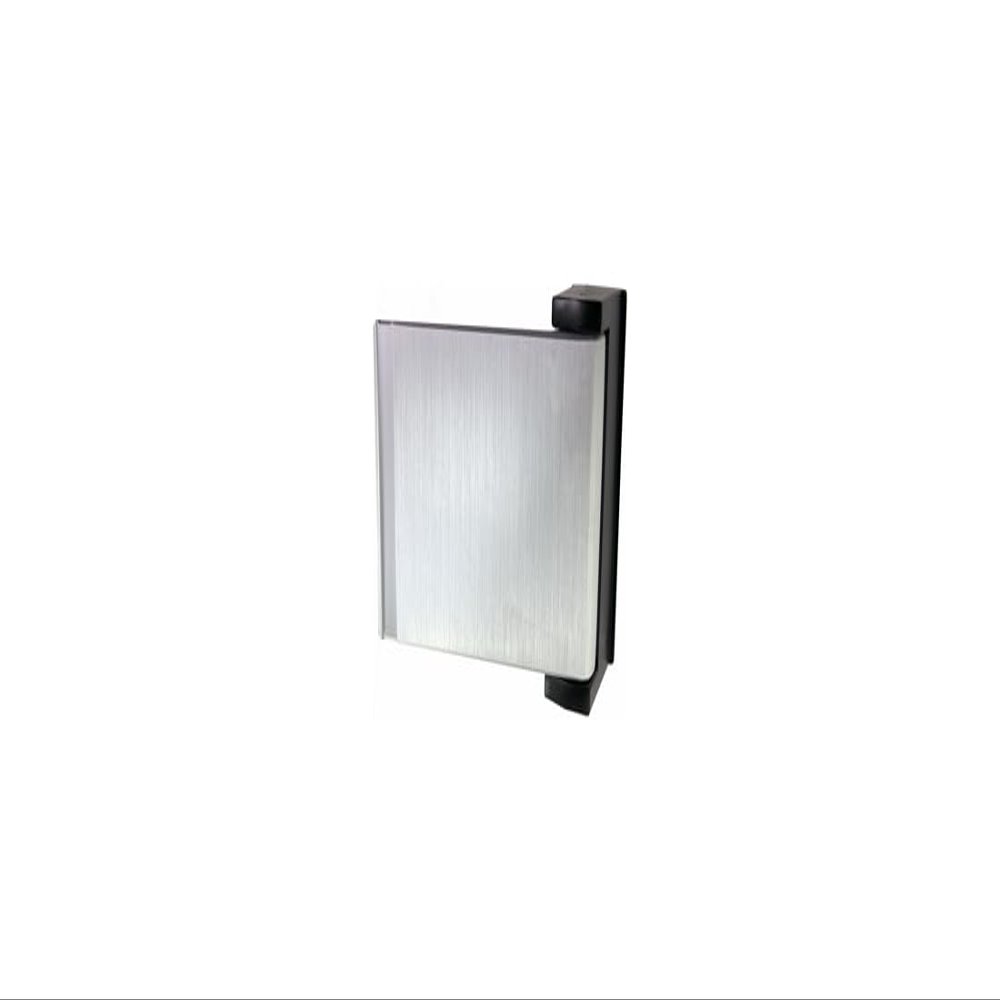

Adams Rite 4590-04-00-628 Aluminum Door Trim

Description

• Deadlatch Paddle
• Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one ? just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Latch, or 2190/2290 Interconnected Deadbolt/Deadlatch.
• Operation: Available in four modes: push to left, push to right, pull to left, and pull to right.
• Specifications:
• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
• Operates with a Simple Push or Pull
• Ergonimcally-Friendly Alternative to a Knob or Lever
• Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Latch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
• Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3/4?. See dash table on catalog page.

4590 SeriesDeadlatch Paddle
The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull. Function - An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one ? just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.Operation:Available in four configurations:push left, push right, pull left, and pull right.Features: Paddle:Extruded aluminum. Escutcheons:Zinc alloy with black finish.Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction. Cam Plug:Furnished for use with 4300, 4500 and 4900 Series Deadlatches.Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch.Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins. Standard Package:Individually boxed with mounting hardware.Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight:1-1/2 lb[0.68 kg]Options:First dash number specifies operation, handing and compatible latch.If required, use second dash number to specify nonstandard units for doors thicker than 1-3/4" [44.5 mm].Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.
