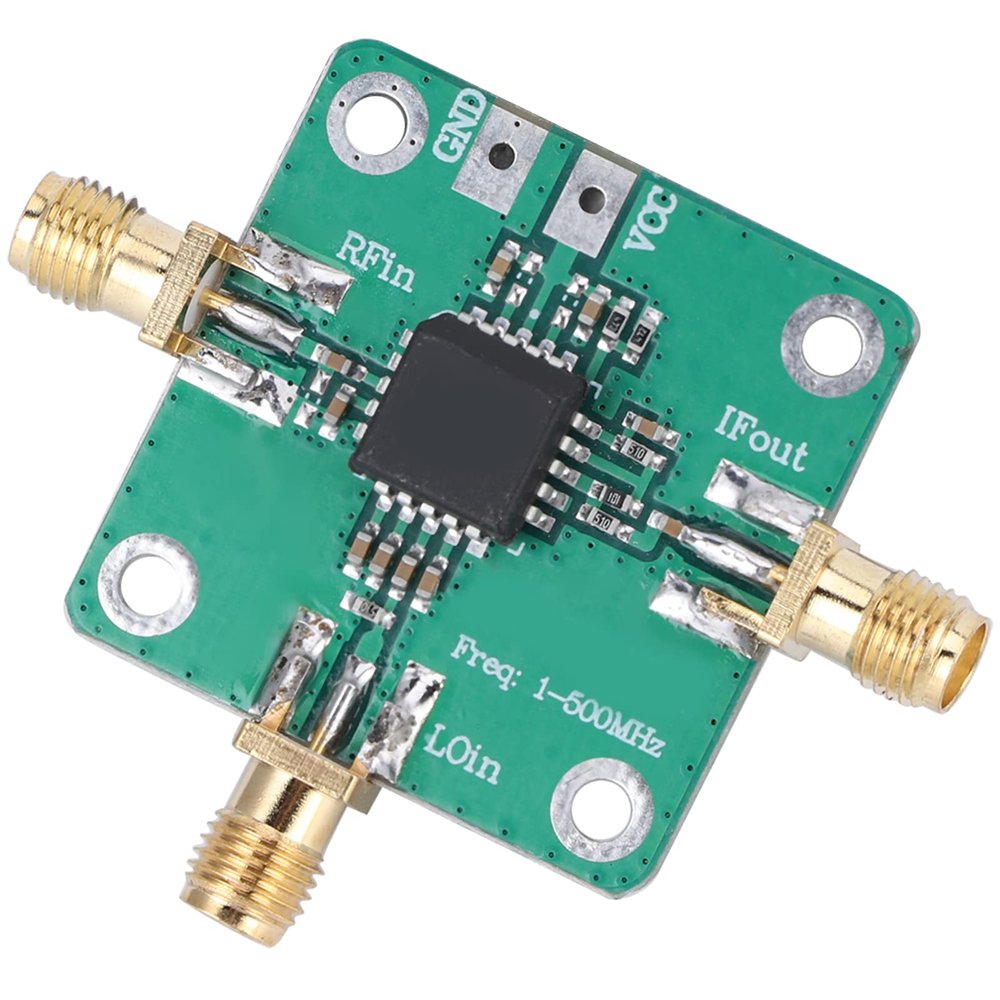

AD831 RF Mixer Module 1-500MHz Board, Low DC Offset, +24dBm IIP3, Quadrature Demodulation, Easy to Use for HF/VHF Receiver, Electronic Component, Drive Inverter Amplifier

Description

• [Enhanced Performance] With no shielding or isolation issues, this mixer improves system performance and reduces overall costs compared to passive mixers.
• [Low Dc Offset Characteristics] The amplifier's low dc offset characteristics make it ideal for dc, baseband frequency conversion and quadrature amplitude demodulation.
• [ Functionality] Boasting a +24 dbm third, order intermodulation point, it achieves -10 dbm lo power without requiring a high power lo drive.
• [Easy to Use Design] Designed as a single power supply, the mixer features rf, if, and lo ports with dc isolation capacitor for convenient usage.
• [Versatile Application] for hf and vhf receiver rfif frequencies, serving as a second mixer in dc baseband conversion, and quadrature demodulation.

[Enhanced Performance] With no shielding or isolation issues, this mixer improves system performance and reduces overall costs compared to passive mixers.
[Low Dc Offset Characteristics] The amplifier's low dc offset characteristics make it ideal for dc, baseband frequency conversion and quadrature amplitude demodulation.
[ Functionality] Boasting a +24 dbm third, order intermodulation point, it achieves -10 dbm lo power without requiring a high power lo drive.
[Easy to Use Design] Designed as a single power supply, the mixer features rf, if, and lo ports with dc isolation capacitor for convenient usage.
[Versatile Application] for hf and vhf receiver rfif frequencies, serving as a second mixer in dc baseband conversion, and quadrature demodulation.

Spec:

Item Type: RF Mixer Module and nbsp;
RF Input: 1, 500mhz
RF input + 10dBm (1dB compression point)
Lo Input: 1, 500mhz
Lo Input: - 10dBm
If Output: 1, 200mhz
Power Supply Voltage: 9 -- 11V single ended power supply

Package List:
1 x RF Mixer Module
