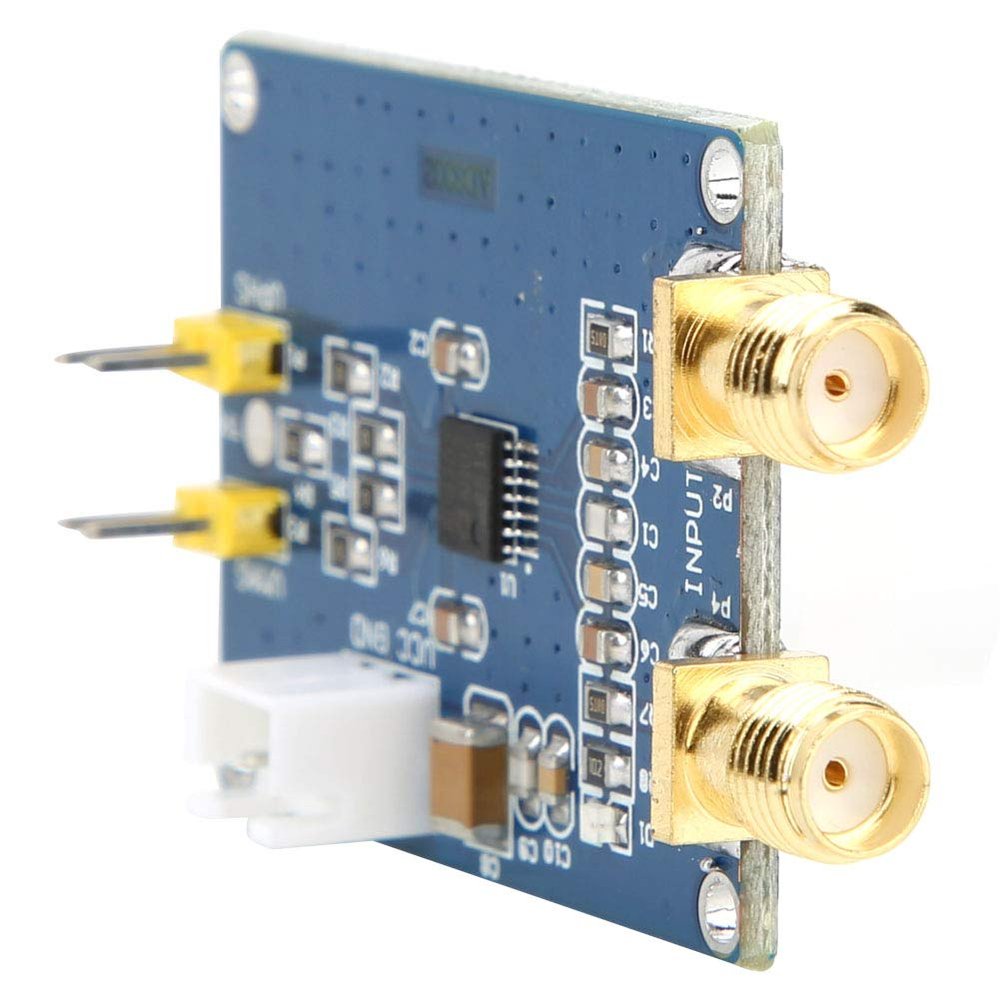

AD8302 Amplitude Phase Detection Module Wide Band Broad Band Amplifier Module for RF Signal Measurement and Analysis

£43.81 £73.02

Save 40% (£29.21)

Buying Bulk?

Buying Bulk?

Description

[Wide Band PERFORMANCE] The AD8302 Amplitude Phase Detection Module operates up to 2.7 GHz, making it ideal for high-frequency RF signal analysis. Its dual demodulating log amplifier and phase detector ensure precise measurements of gain, loss, and phase differences in various RF applications.
[WIDE INPUT POWER RANGE] This module supports an input power level range of -60dBm to 0dBm, perfect for phase difference measurement systems with a 50 characteristic impedance. Its robust design ensures reliable performance across a broad spectrum of signal strengths.
[PRECISION AMPLITUDE MEASUREMENT] Featuring an accurate amplitude measurement scale factor of 30mV/dB, this module delivers typical nonlinearity of less than 0.5 dB. Its high precision makes it a trusted tool for detailed RF signal analysis and testing.
[ACCURATE PHASE DETECTION] With a phase measurement scale factor of 10mV/degree and typical nonlinearity under 1 degree, this module provides exceptional accuracy for phase difference measurements. Its ideal for applications requiring meticulous phase analysis.
[VERSATILE OPERATING MODES] The module offers three operating modes: Measurement, Controller, and Level Comparator Mode, providing flexibility for various RF testing scenarios. Its compact size (42 x 30.5 mm) and 5V supply voltage make it easy to integrate into your setup.
