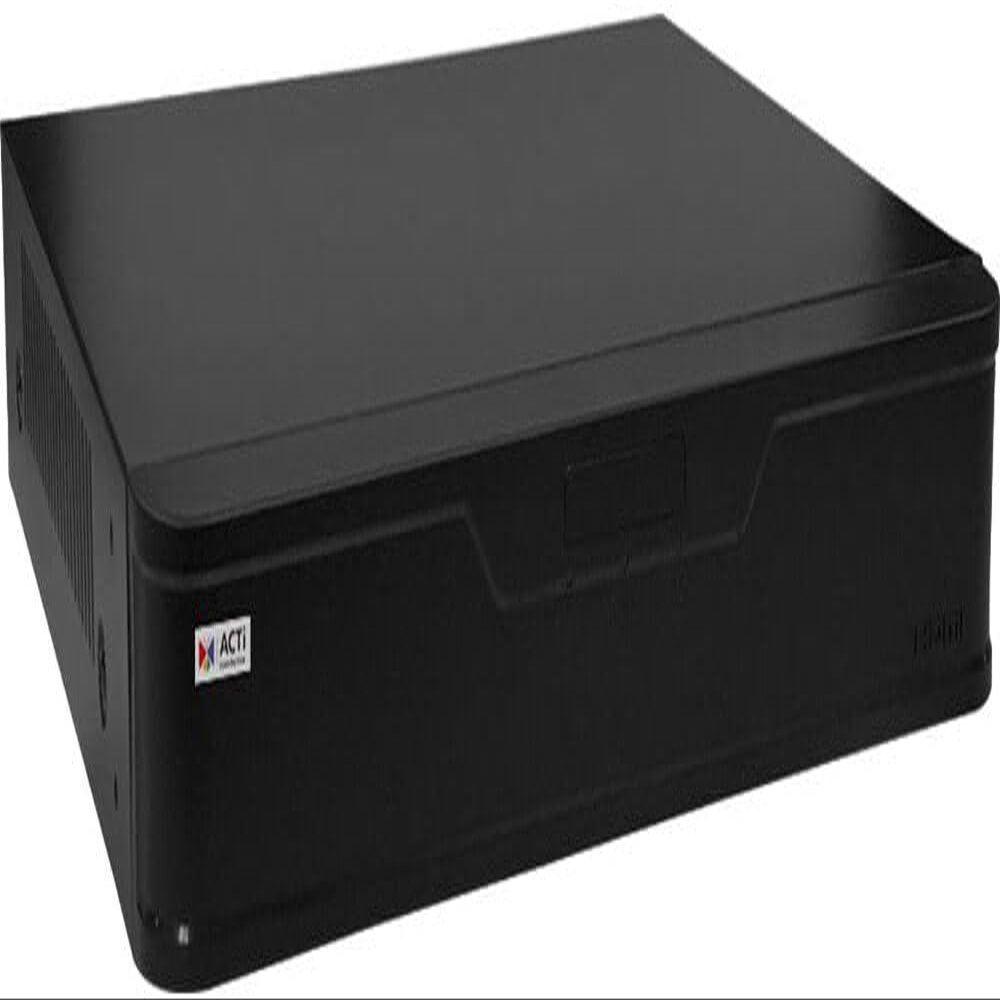

ACTi YVR-121 12-Channel 1-Bay H.265 Mini Standalone Hybrid DVR with Recording Throughput 32 Mbps, Supporting Video Source from TVI, AHD, CVI, CVBS and IP Camera, Web Client, Audio, DC 12V

Description

• 8 BNC connector, supports TVI/AHD/CVI/CVBS
• HDMI and VGA Port, Remote Access
• 12 Maximum Number of Video Devices: 8 (for Analog cameras)/4 (for IP video devices, up to 8-ch if no analog cameras are connected.)
• Event trigger, response and notification
• Free license included for maximum 8-channel Analog Camera and maximum 4-channel IP Camera

ACTi YVR-121 12-Channel 1-Bay H.265 Mini Standalone Hybrid DVR with Recording Throughput 32 Mbps, Supporting Video Source From TVI, AHD, CVI, CVBS and IP Camera, Web Client, Audio, DC 12V

KEY FEATURES
- 12 Maximum Number of Video Devices: 8 (for Analog cameras)/4 (for IP video devices, up to 8-ch if no analog cameras are connected.)
- 8 BNC connector, supports TVI/AHD/CVI/CVBS
- HDMI and VGA Port, Remote Access
- 8-Channel Synchronized Playback
- Web Client
- Event trigger, response and notification
- Free license included for maximum 8-channel Analog Camera and maximum 4-channel IP Camera

SPECIFICATIONS
- Maximum Number of Clients: Local: 1, Remote: 128
- Supported Screen Resolution: HDMI/VGA: 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
- Compression: H.265, H.264
- Maximum Frame Rate vs Resolution: (TVI/AHD) 12 fps at 5MP 15 fps at 4MP 30 fps at 1080P 30 fps at 720P (CVI) 30 fps at 1080P 30 fps at 720P
- Audio Type: 2-way, Line-in, Line-out
- Audio Compression: G.711 u-law
- Network Protocol & Service: IP, TCP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, UPnP
- Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
- Maximum Outgoing Throughput: 64 Mbps
- Maximum Recording Throughput: 32 Mbps
- Event Response: Play alert sound, Send E-mail Notification, Pop-up window
- Server Operating System: Linux
- USB: 2-Port USB 2.0
- Storage Bay: SATA, Max. 1 Disk(s) (without storage disks)
- HDD Size: 2.5", 3.5"
- Maximum Recording Capacity: 20TB x1
- Audio Interface: 1/1, RCA Jack
- Analog Video Input : 8x BNC connector, supports TVI/AHD/CVI/CVBS
- Local Display Interface: HDMI x1, VGA x1
- Power Source: DC 12V
- Power Supply: 40W
- Operating Temperature: -10C ~ 55C
- Operating Humidity: 10% - 90% RH
- Dimensions (WxHxD): 10.2" x 1.8" x 8.9"
- Weight: 2.42lb
