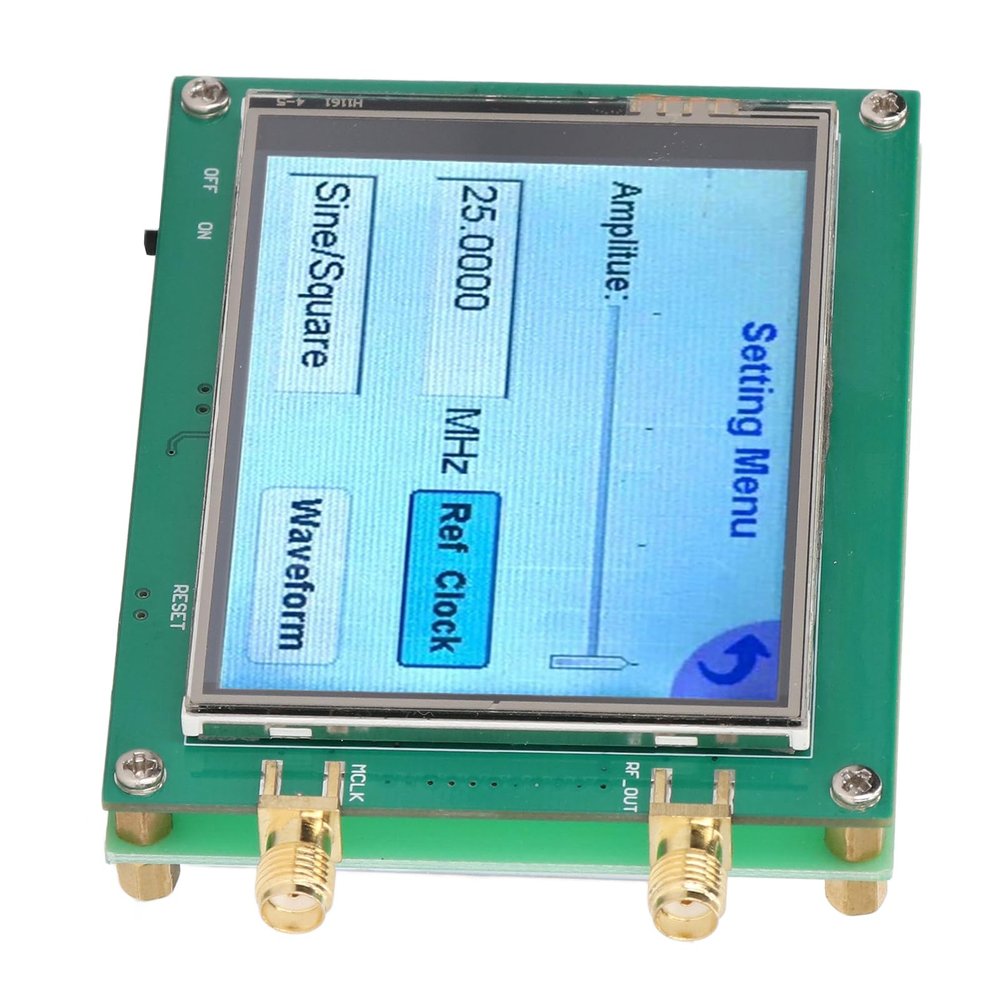

Acouto RF Module with PC Control & Wide Frequency for Precise RF Testing (ADF4350 138m4.4g)

Description

• User-Friendly Design - Equipped with a dedicated data cable, this module connects effortlessly to your PC, allowing for intuitive control of the RF source. The included PC software is user-friendly, providing an interactive platform for users to customize their parameters efficiently. Users can generate sweep patterns and frequencies , enhancing their workflow greatly and saving valuable time during complex testing scenarios.
• PCB Construction - Crafted from premium PCB material, this RF is built to last. The robust design offers excellent heat , ensuring stability during prolonged use and safeguarding your investment potential warping and erosion. By employing materials, the lifespan of this module is extended, making it a choice for both amateur and professional enthusiasts looking for reliability.
• Versatile Application - Whether you are involved in research, development, or production testing, this RF module serves various purposes effectively. Its versatility makes it ideal for fields such as telecommunications, RF design, and electronic testing. Users can implement it in countless applications, from simple frequency analysis to complex RF system testing, making it an essential tool in any electronics .
• Compact and Portable - Designed with portability in mind, this RF module is lightweight and easy to handle. Its compact form allows users to set it up in tight spaces while still providing extensive functionality. for field testing or classroom demonstrations, this device can easily be transported without hassle, enabling users to take their RF experiments on the go without compromising performance.
• Wide Frequency - This RF features a robust frequency from 23.5MHz to 6000MHz. Users gain unparalleled flexibility to test various RF applications, ensuring maximum adaptability across diverse systems. With a reference clock frequency reaching up to 200MHz, researchers can explore different modulation schemes seamlessly while maintaining compatibility with .8V control logic for precise integration into existing setups.

1. Full Touch Screen Frequency Input: The RF signal source module is a full touch screen frequency input, the output frequency mode is point frequency, and the frequency sweep is optional.
2. SMA Female Output Interface: This RF signal source module adopts SMA female output signal interface with stable connection performance.
3. High Performance Chip: The chip for this RF signal source features a 23.5MHz to 6000MHz base frequency VCO, with an output binary buffer or driver for extended frequency ranges, a reference clock frequency of up to 200MHz, and compatibility with 1.8V control logic.
4. Equipped With Data Cable: This RF signal source module is equipped with a data cable, which can be connected to a PC to control the RF signal source, and PC software is provided.
5. Excellent PCB Material: This RF signal generator is made of excellent PCB material, which is solid and high temperature , not easy to be warped, not easy to be eroded, and has a long service life.

Spec:
Item Type: RF Signal Generator
Material: PCB
Power Supply And Communication Interface: TYPE C 5V at 0.2A
Refer to ADI official evaluation board circuit and layout.
Output Signal: 2.2-4.4G Fundamental (Sine Wave),35m-2.2g Fundamental (Sine Wave)
Point frequency sweep full touch control can realize point frequency, sweep frequency.
4 Levels of Amplitude Control.
Can be connected to an external reference clock.
Output Signal Interface: SMA Female Connector
Can be realized through the PC control, provide PC software, send the data line.

How to Use:
Use directly.

Package List:
1 x RF Signal Generator
1 x Data Cable
