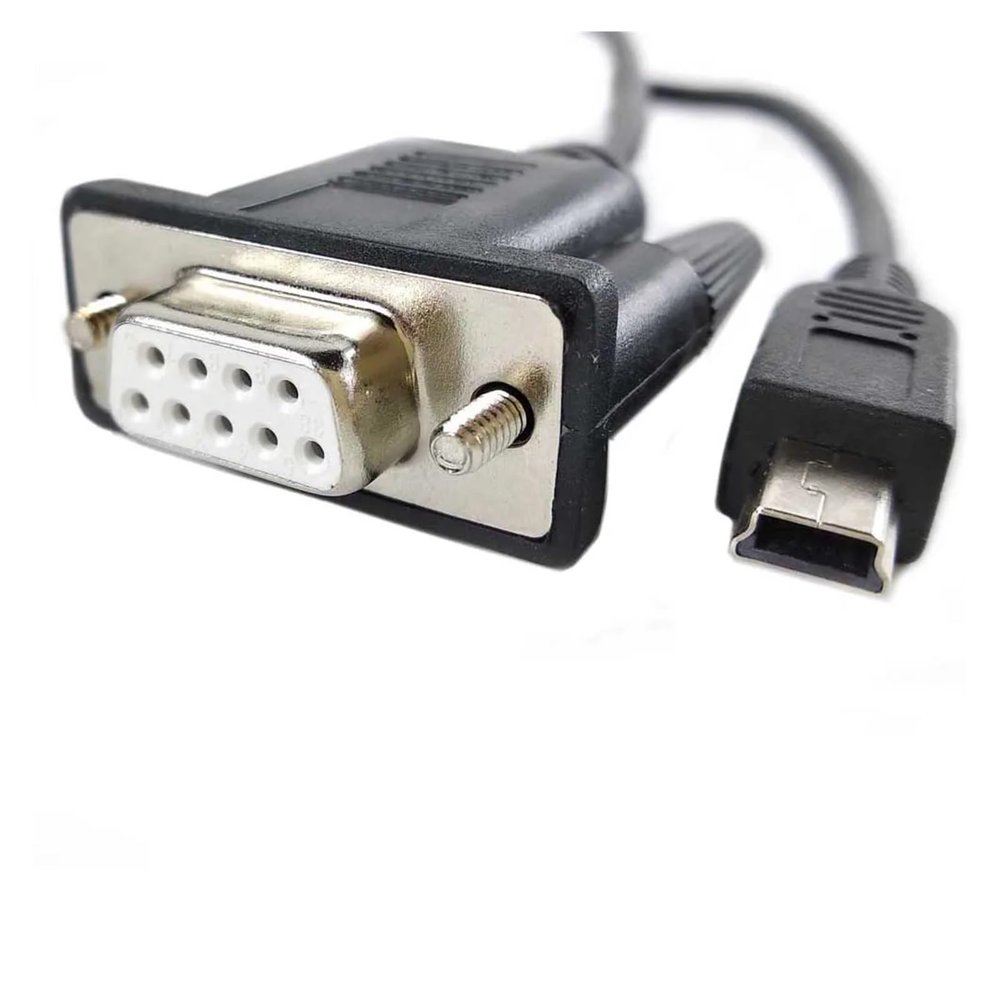

ACGTUY Tablet Panel PC M/i/ni USB Host to RS232 Adapter DB9 Male p/Lug Or Female Socket F/;TD/;1 Chip VCP Driver Cable(6ft(180cm),DB9F 2RX 3TX 5G 7RT)

Description

• Single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled on the chip. No USB specific firmware programming required.
• Fully integrated 2048 byte EEPROM compatible with the storing device descriptors and CBUS I/O configuration.
• Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
• Data transfer rates from 300 baud to 3 Mbaud.

F/;TD/;1 FT231X M/i/ni USB to RS232 DB9 adapter cable M/i/ni USB 5P p/lug otg
It is a M/i/ni USB(USB signals) to DB9 RS232 converter cable. NOTDB9 RS232 to M/i/ni USB(M/i/ni usb side RS232 signals)
M/i/ni USB side with OTG, support mobile , tablet pc with M/i/ni usb 5p socket
M/i/ni usb side 1.5mtr.
USB2.0 standard, full speed 12M support
USB1.0, USB1.1 compatible
About FT231X
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM compatible with the storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow compatible with the high data throughput.
F/;TD/;1 royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement compatible with the USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support compatible with the 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter compatible with the USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull ups and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated
