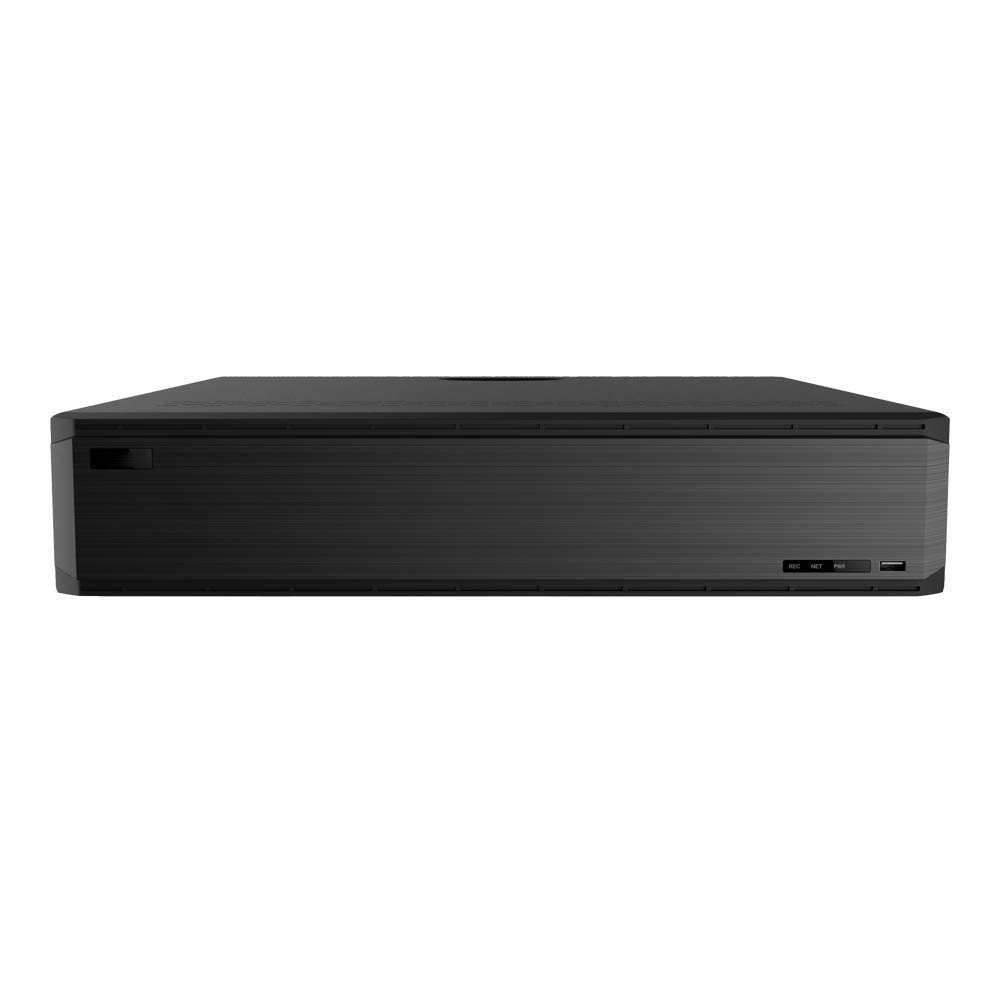

ACELEVEL 64 Channel 4K NVR, 16MP, H.265, 8xSATA, HDMI/VGA, Mobile Surveillance

Description

• Please note: This NVR does not include a hard drive. To enable recording, a compatible hard drive must be installed
• ADVANCED RECORDING: Features 64-channel input with 16MP resolution support, H.265/H.264 compression, and massive 640Mbps bandwidth for superior recording quality
• STORAGE CAPACITY: Equipped with 8 SATA bays supporting up to 10TB per drive, plus 2 eSATA ports for external storage expansion
• DISPLAY OUTPUTS: Multiple monitor support with 4 HDMI outputs (8K/4K/1080p) and VGA output, enabling comprehensive surveillance monitoring
• COMPREHENSIVE CONNECTIVITY: Dual Gigabit network ports, USB 2.0/3.0 ports, RS485 interface, and supports up to 128 simultaneous users for flexible system integration

More Information System Compression Standard H.265, H.264 Operating System Embedded Linux IP Camera Input 64CH Video Output HDMI 1: 4K 2K/19201080 HDMI x 2: 19201080/12801024 VGA 1 : 19201080/12801024 Audio In RCA 1 Audio Out RCA 1 2 Way Audio Supported Recording Resolution 5MP / 4MP / 3MP / 1080P / 960P / 720P Recording Mode Manual, timer, motion, sensor Record Stream Dual stream recording Playback Channels 16CH Playback Search Time slice / time / event / tag search Playback Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events Playback Function Play, pause, FF, FB, digital zoom, etc. Alarm Mode Manual, sensor, motion, exception Alarm In 8CH local alarm input, support IPC alarm input Alarm Out 4CH Trigger Events Record, snap, preset, e-mail, etc. Network Interface RJ45 10 / 100 / 1000 Mbps 2 Incoming Bandwidth 320Mbps Outgoing Bandwidth 320Mbps Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP Network Max. Users Web Client: Max 10 users online PoE Ports N/A Mobile iPhone, Android RS485 N/A USB USB 2.0 2 , USB 3.0 1 Remote Connections Optional Power Supply ATX Power Consumption 15W ( without HDD ) Internal HDD SATA 8, max 10T per HDD e-SATA e-SATA 2 Operating Conditions -10 50 10% 90% humidity Dimensions 430mm 450mm 90mm ( W D H )
