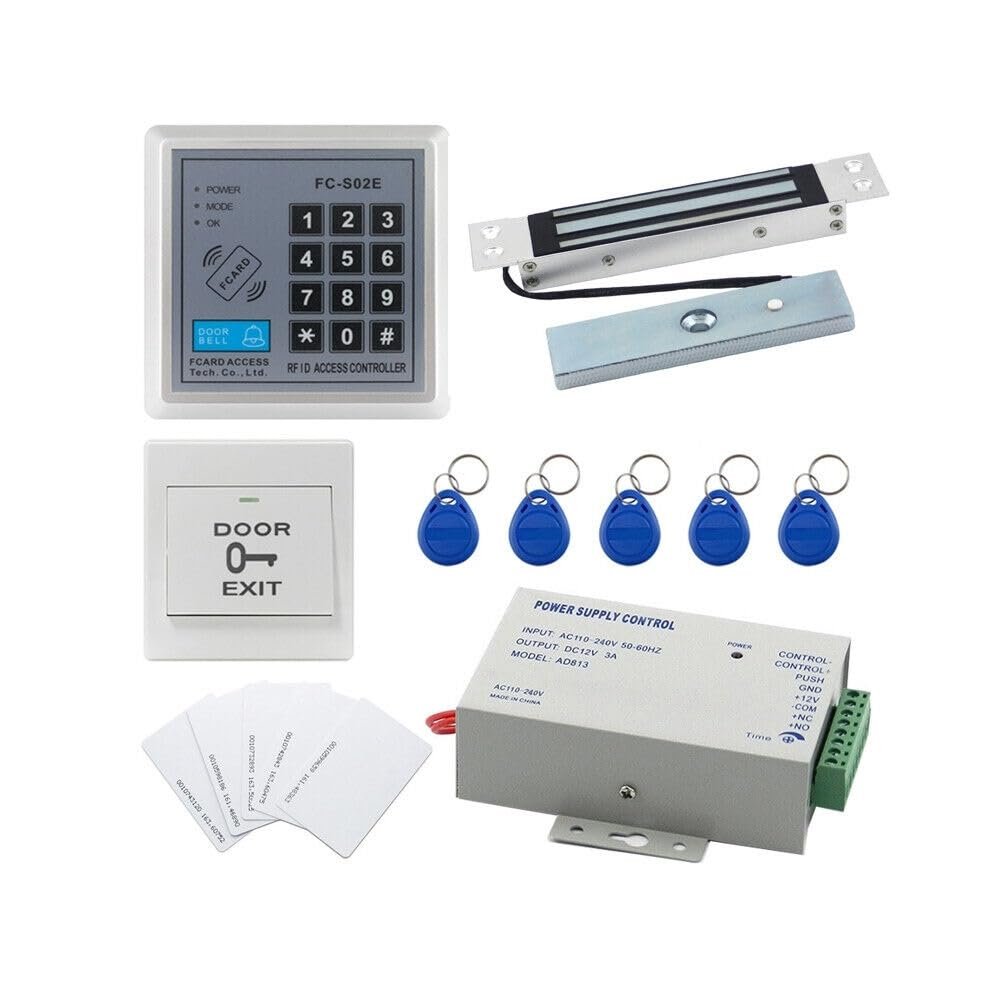

Access Control System w/280kg Electronic Lock+Power Supply+Exit Button+10EM Card

Description

• Access Control System w/280kg Electronic Lock+Power Supply+Exit Button+10EM Card

Access Control: This is a NEW Access Control RFID ID Reader Keypad, which can update the safety of your home and office.
It is perfect for Homes, Office, Factory and many other fields!
Contactless RFID transponder technology
Full programming from the keypad
Support Card, PIN, Card + PIN
Connection for external release button(Exit button)
Build in RFID reader
User capacity: 1000 users (each card only can add one password)
Does not need to connect on the computer, it can work

Specification:
Operating Voltage:12VDC+10%;Current 1.2
Lock Relay:12VDC/2A
4-digits public PIN Capacity:1
Proximity Reader Frequency:125KHz
Compatible Cards:EM or EM compatible cards
Card Reading Distance: 5-15CM
Dimension: 120mmx120mmx18mm

Power Supply: This AC110V-240V Power supply controller is a transformer which provides stable output
voltage for access controller, lock, and exit button.
Can reduce the load of access controller, save wiring to reduce the hidden trouble Set NC /
NO outputs, can control various types of electric locks Based delay control circuit, lock
time can be in 0-15 seconds The circuit board has remote control port.

Specification:
Input Voltage: AC110-240V
10~220V 50~60Hz
Output Voltage: DC 12V 3A
Outer Dimensions: 103 x 68 x 33mm

Electric Lock:

Lock Size: the long 250x wide46x thick25 (mm)
Armature plate: the long 180x wide 38x thick 11 (mm)
Maximum tension: 280kg straight line Rally
Input voltage: DC12V +10%
Operating Current: 12V/300mA
The applicable door type: file cabinet and shopping cabinet small door
Surface Temperature: Within +20 degree below ambient temperature
Suitable temperature: -10 to +55 DEGREE(14-131F)
Suitable Humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
The lock processing: environmentally friendly zinc plating processing
Suction plate processing: environmental protection zinc plating processing
Product Weight: 1.8kg

RFID Cars/Keyfobs:

These are 5pcs 125KHz RFID Proximity Keyfobs and 5pcs ID cards, they can work
with the product which has 125Khz RFID card reader.
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.

Exit button:

This exit button widely used in the door access control system.When you want to
go out, you just need to press this Exit Button,
then you can go out:
Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.

Specification:
Working voltage: DC12V
Working current: 3A
Faceplate Dimension: 85mmx85mm

PackageA set of products
