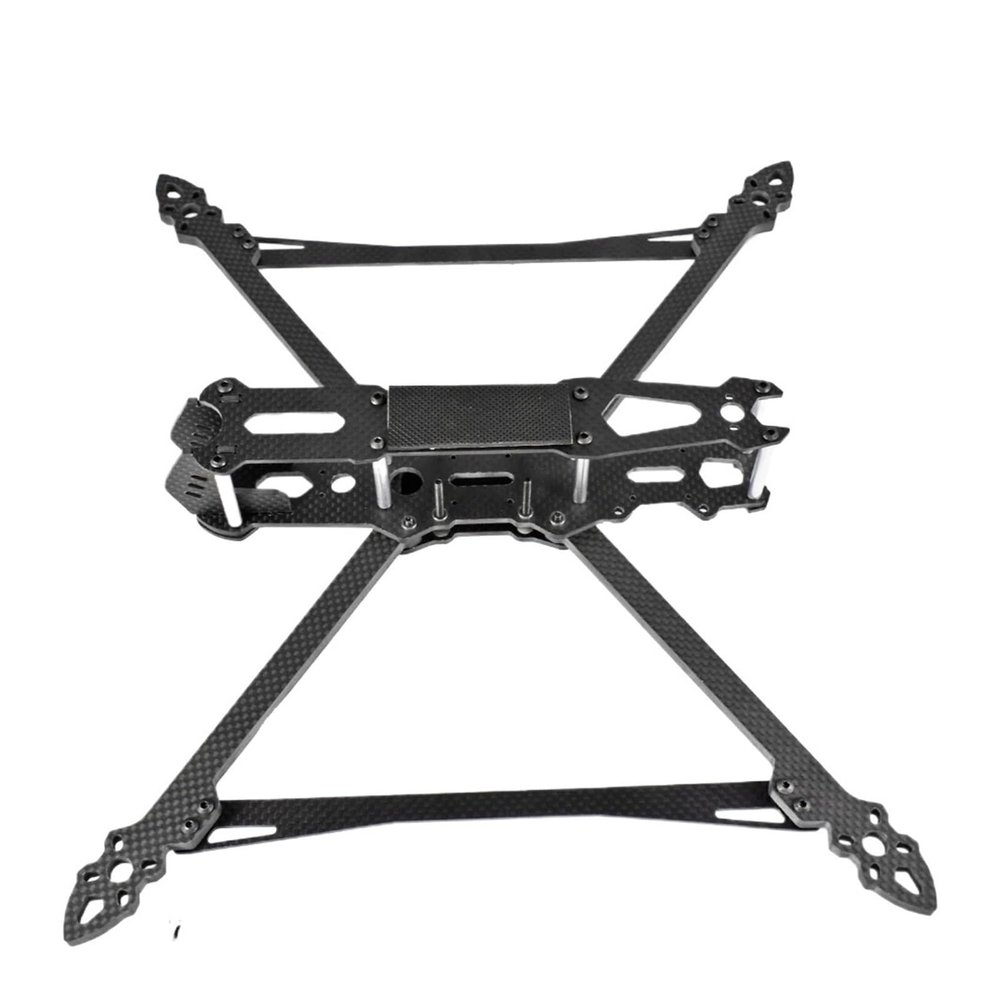

9IMOD MAK4 V2 RC FPV Frame 7/8/9/10inch 3K Carbon Fiber For RC FPV Freestyle Quadcopter(7 inch)

Description

• Multiple Sizes for Adaptability: Available in 7-inch, 8-inch, 9-inch and 10-inch sizes, with wheelbases of 295mm, 367mm, 387mm and 427mm respectively, meeting the needs of different flight styles and scenarios.
• High-Quality Carbon Fiber Material: Made of 3K carbon fiber, it is high in strength and light in weight. For example, the 7-inch model weighs only 121g, enabling the aircraft to fly flexibly while remaining sturdy.
• Precise Mounting Holes: The camera mounting hole spacing is 19mm. The flight control and image transmission mounting holes support 20x20mm and 30.5x30.5mm, and the motor mounting holes are 16x16mm and 19x19mm, facilitating the installation of various accessories.
• Reasonable Internal Space: The internal space height is 35mm, providing sufficient space for electronic components. It is convenient to install various flight controllers, batteries, etc., to ensure the stable operation of the equipment.
• Unique Structure Design: The X-type frame structure ensures a stable flight attitude. The thick arm design of 6mm (7/8/9 inches) or 7.5mm (10 inches) provides strong impact resistance and makes the flight safer.

9IMOD MAK4 V2 7/8/9/10inch 295/367/387/427mm 3K Carbon Fiber 6mm Arm For RC FPV Freestyle Long Range Racing Drone Quadcopter
Features:
1. 7/8/9/10 inch FPV Frame-The frame is really solid and well balanced, perfect balance between performance and durability.
2. Full 3K carbon fiber material, make the drone light weight but very strong,perfect balance between performance and durabilit
3. 6mm thickness frame arm, compact design greatly reduce the total weight, small wind resistance coefficient.
4. Easy to assemble, suitable for FPV enthusiasts who pursue high-performance and diverse flight experiences,can fly outdoors or indoors in a large space.
Descriptions:
The upgraded version of the new MARK4 V2,which is beautiful and durable,light in weight and high in strength,easy to assemble, suitable for both beginners and senior players.
Model: MAK4 V2 7inch
Frame structure: X-Type
Wheelbase: 295mm
Weight: 185g
packing: electrostatic bag
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 305305mm
Flight control installation hole spacing 2020mm & 305305mm
Inner space height 35mm
Motor installation hole position 16*16mm & 1919mm
Recommended configuration not included
Propeller 7-inch
motor: 2806.5/2807/2810/2812
flight control: F4/F405/F7/F722
electric: 45A-65A ESC
Camera: 19 * 19MM
Battery: 6S-3000MAH-6500Mah
Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 305305
