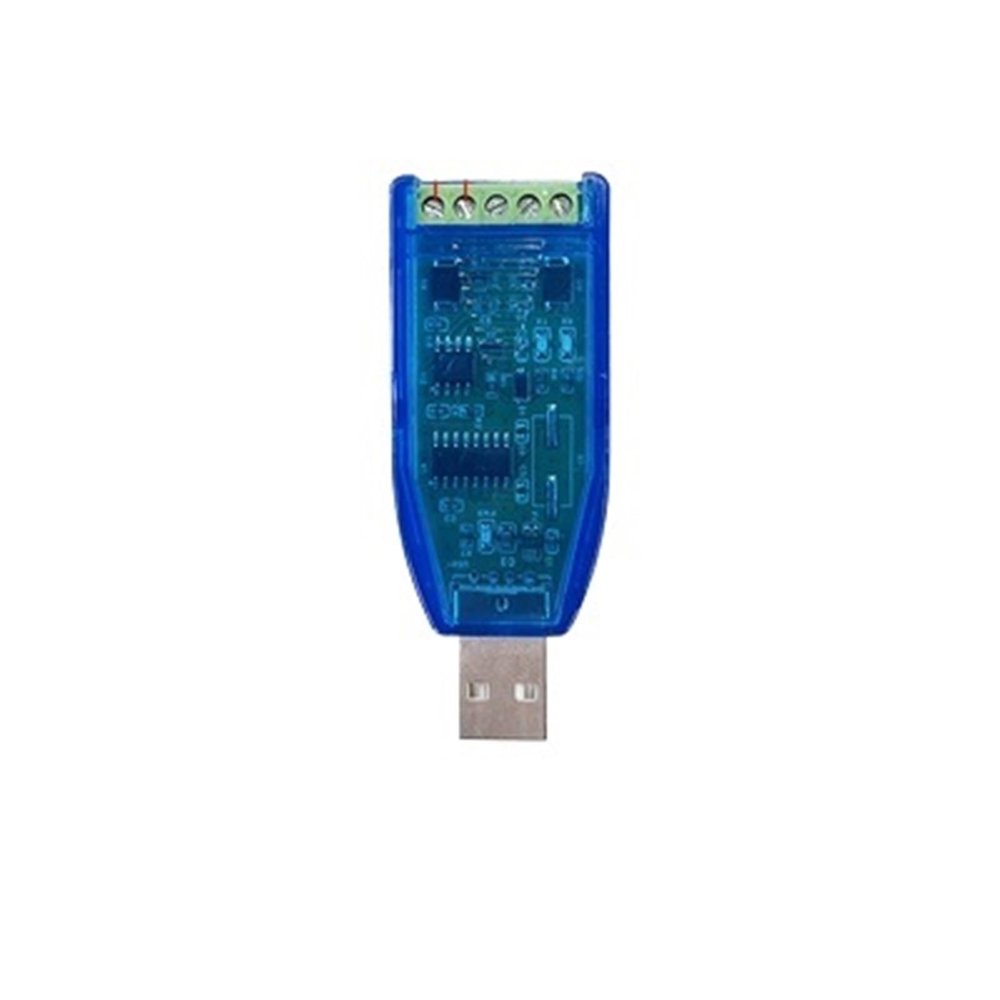

8-Port RS485 HUB 8-Channel Splitter Sharer Industrial Grade Optically Isolated Repeater Guide Rail Collector Distributor Divide(USB to RS485)

Description

• Modules

Modules
8-Port RS485 HUB 8-Channel Splitter Sharer Industrial Grade Optically Isolated Repeater Guide Rail Collector Distributor Divide
8-way hub is an RS-485 line split hub (HUB) designed specifically for industrial automation communications, which addresses RS-485 bus star structure networking, and requirements of RS485 large systems in complex electromagnetic fields. Supports transmission rates up to 115.2KBPS, and RS-485 interface uses isolation technology. A 600W surge protection circuit provides 1000V isolation voltage to effectively suppress and ESD protection.
discrimination circuit used in RS-485 operating mode can automatically sense direction of data flow, and automatically switch enabling circuit, easily solving RS-485 transceiver conversion delay problem. RS-485 interface has a transmission distance greater than 3000 meters and stable performance. Widely used in highway toll collection systems, road monitoring systems, and power acquisition systems, it is a data interface conversion product with excellent performance and excellent .
Product Parameters
Industrial Grade Isolated RS-485 HUB
Interface Characteristics
Interface compatible with EIA/TIA RS-485 standards
Electrical Interface
RS-485 Interface is a ten position terminal post
Transmission Medium
Twisted pair or shielded wire
Mode
Asynchronous half duplex
Working Power Supply
9-40VDC/500mA
Signal Indication
11 Signal indicator lights power supply (PWR), transmit (TD), receive (RD), fault (E1-E8)
Isolation Degree
Isolated voltage 2500V RMS 500VDC continuous DC/DC module
Transmission Speed
300bps-115.2Kbps
Protection Level
RS-485 interface 600W surge protection per line
Transmission Distance
0-3KM(300-115,200bps)
Size
122x72x26mm
Usage environment
-40~85, relative humidity is 5%~95%
Electrical Interface and Definition
Interface compatible with EIA/TA RS-485 Standards
Terminal
Mark
Definition
1 GND
Negative pole of power supply
2 VCC
Power supply 9-40V
3 485B
IN RS-485-
4 485A
IN RS-485+
5 485B
E8 RS-485-
6 485A
E8 RS-485+
7 485B
E7 RS-485-
8 485A
E7 RS-485+
9 485B
E6 RS-485-
10
485A
E6 RS-485+
Terminal
Mark
Definition
1 485A
E1 RS-485+
2 485B
E1 RS-485-
3 485A
E2 RS-485+
4 485B
E2 RS-485-
5 485A
E3 RS-485+
6 485B
E3 RS-485-
7 485A
E4 RS-485+
8 485B
E4 RS-485-
9 485A
E5 RS-485+
10
485B
E5 RS-485-
