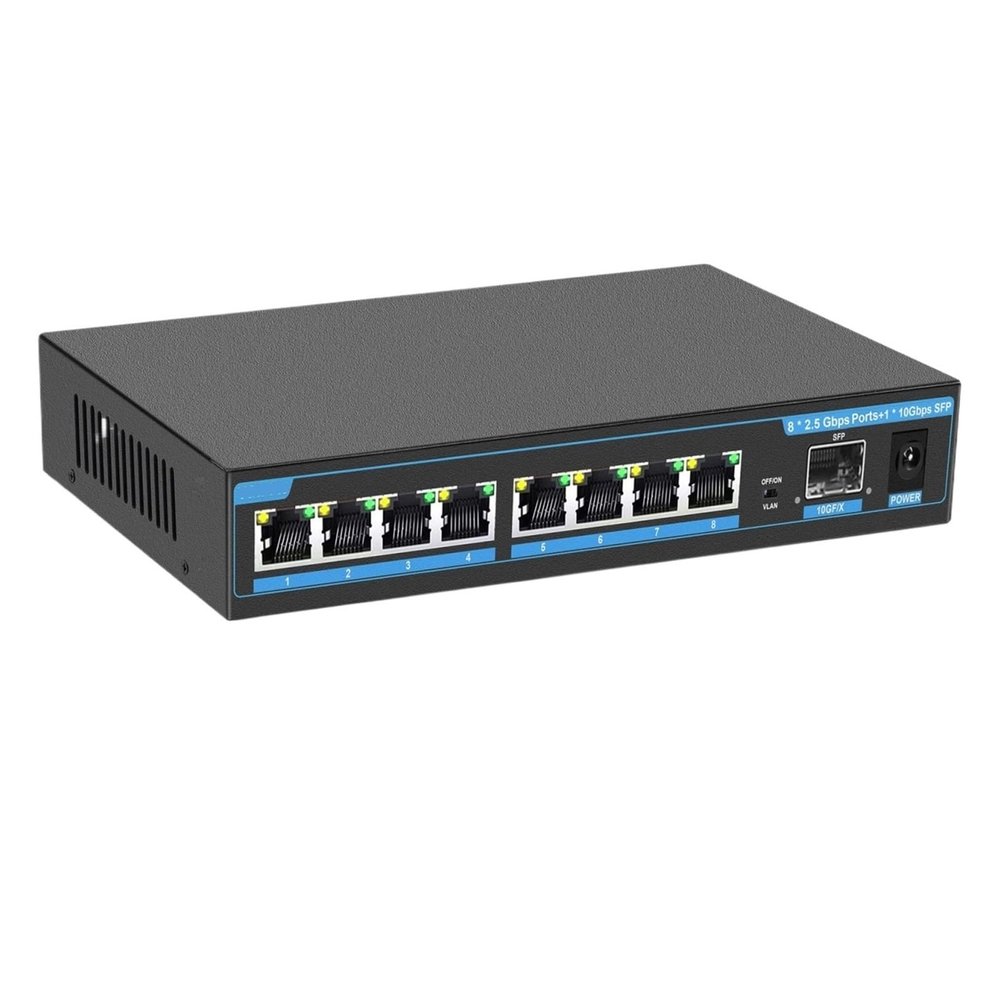

8-Port 2.5G POE Switch Gigabit Switch Ethernet Switch POE 10G SFP RJ45 Connector(Non POE Switch 9Port)

Description

• Hubs

Hubs
Provides 8 2.5G POE high-speed data forwarding power data ports without packet loss, 1 10Gb uplink SFP optical port, and 1 DC48-55V input port;
Has one-click vlan function.
vlan: switch command
OFF: When the control key is adjusted to this position, it means that ports 1-8 of the POE switch can communicate with each other.
ON: When the control key is adjusted to this position, it means that ports 1-8 of the POE switch are isolated from each other and can only communicate with the upstream SFP optical port respectively.
Product model: POE switch 9 ports
Forwarding mode: store and forward
Transmission distance: port: 0-100m; Optical port: with optical module
Signal pin: 1 2 3 6 4 5 7 8
Standard power supply: DC 52V120W
Power pin: 1.2 is positive and 3.6 is negative
Protocol: IEEE 802.3AT IEEE802.3AF
Voltage specification: DC48-55V
Network media: Use Category 6 or Category 6e unshielded twisted pair cables
Backplane bandwidth: 60Gbps full duplex
Dimensions: (length*width*height) 210mm*110mm*33mm
Power supply port: Ports 1-8 are POE ports, and ports 1-8 support VLAN mode.

Product model: POE switch 6 ports
Forwarding method: memory forwarding
Transmission distance: port: 0-100 meters; Optical port: with optical module
Signal leg position: 1 2 3 6 4 5 7 8
Standard power supply: DC 52V 65W
Power pin: 1.2 is positive and 3.6 is negative
Protocol: IEEE 802.3AT IEEE802.3AF
Voltage specification: DC48-55V
Network media: Category 6 or Category 6e unshielded twisted pair cable
Backplane bandwidth: 60Gbps full duplex
Dimensions: (length*width*height)160mm*110mm*33mm
Power supply port: Ports 1-4 are POE ports, and ports 1-4 support VLAN mode.

Product model: Non-POE switch 9 ports
Forwarding method: store and forward
Transmission distance: port: 0-100m; Optical port: with optical module
Signal length: 1 2 3 4 5 6 7 8 wavelength (with opt
