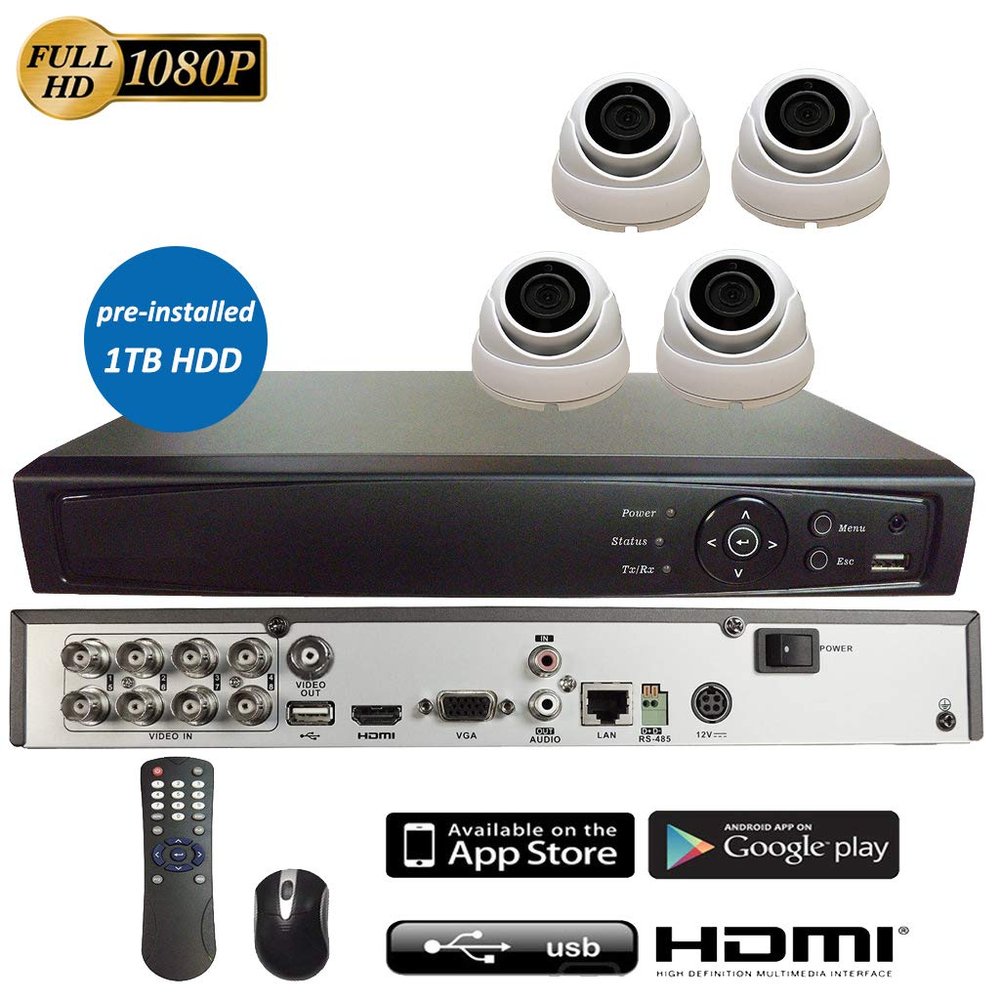

8CH 5in1 (IP, TVI, AHD, CVI, Analog CVBS) Surveillance DVR + 2MP 1080P 2.8mm Lens Dome Camera (with 1TB HDD, 4 x 2MP 2.8mm Fixed Dome)

Description

• 8CH HD DVR w/ 1TB HDD. DVR can connect 8 HD/SD cameras by using wired cable with BNC connectors and 2 IP Network cameras by using IP address. Triplex: Live / Playback, Record, Network. Standard H.264 Video Compression with low bit rate and better image quality. Support 1 x SATA HDDs (Each HDD can go up to 6TB Storage Capacity). Exceptionally strong password and anti hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
• Pre-Alarm Recording and Motion Detection. Motion activated full screen alarm call up protection with optional audible warning. Dual-stream: network video and local recording. CMS and web-based remote monitoring software on PC. Up to 1080P HDMI, 1920 x 1024 VGA, and 700TVL BNC Video Output Resolution. USB Backup and USB Mouse.
• Multiple video formats output including Full HD/TVI/CVI/AHD, SD/960H/composite video, and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. Multiple Video Out connectors for extra viewing needs including: BNC/HDMI/VGA/IP network video monitoring.
• User friendly setup instructions including QIG (Quick Installation Guide) for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. Recording Resolution: Regular Mode: 1080P resolution up to 12FPS, 1080P Lite (960x1080) and 720P/under) can up to 30FPS, US Local Support (Office Hour 8:00AM - 5:30PM, Mon to Fri, Pacific time). 3 Years DVR/2 Years HDD Manufacturer Warranty.
• with 2-8 of 2MP 1080P cameras: 2 Megapixel 2.8mm Lens Fixed Dome Camera with Progressive Scan CMOS Sensor and TVI / HD-CVI / HD-AHD / CVBS. It has OSD Menu, 2D DNR. DWDR, True Day/Night,Support UTC Function for both Indoor Outdoor. *The camera default Setting is HD-TVI (2MP), if your system is not TVI 2MP, please follow the instruction in the menu to switch camera mode to the same as your system or contact us. Thank you.*

8CH DVR with pre-installed 1TB HDD
Model: LTD08TCB2-1T

- H.264 compression with low bit rate and better image quality
- HDMI Output x1(1080P), VGA Output x1 (resolution up to 1920 x 1080) ; CVBS (BNC) Output x1; Audio Input x1; Audio Output x1.
- Up to 1080p@30fps recording with 1080P efficient mode on.
- All 8 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback.
- Support One SATA HDD to record; each HDD up to 6TB storage.
- Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network
- Support schedule for motion detection, linked channels recording once motion triggered on certain channel
- Support PELCO-D and PELCO protocol for PTZ control
- Support mobile surveillance on iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet
- Support 3 Years Manufacturer Warranty
================================================================
2MP 1080P 2.8mm Fixed Dome Camera
Model: 2FDT-28W

Image Sensor: 1/2.9" 2Megapixel CMOS Sensor
Effective Pixels: 1930(H)x1088(V)
Signal System: NTSC
Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS
Mini Illumination: 0.001 Lux / F1.2
Lens: 2.8mm Fixed Lens
WDR: On/Off
White Balance / Gain Control: Auto
S/N Ratio: More than 45 dB
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
Weatherproof: IP66
Operation Temp: 14F~122F (-10C~50C)
Storage Temp: 14F~140F (-10C~60C)
Dimensions (mm): 94.5(W) x 76(H)
Power: DC12V/ 500mA
IR Range: 20m IR Range w/ 18pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF
Weight: 400g
