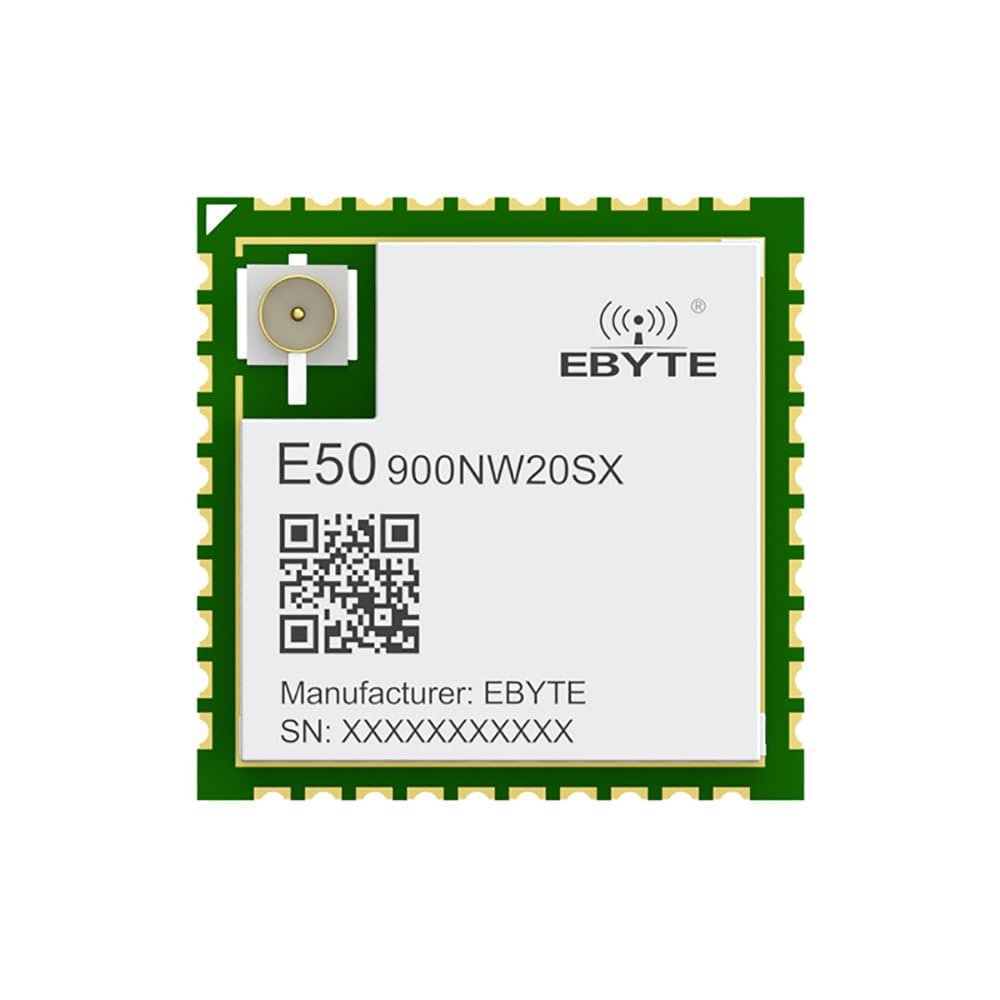

868MHz 915MHz EFR32FG23 WM-Bus Wireless SoC Module E50-900NW20SX RF IC Long Distance 2.5KM M-Bus Low Power Ipex Antenna Interface Star Networking

EBYTE

868MHz 915MHz EFR32FG23 WM-Bus Wireless SoC Module E50-900NW20SX RF IC Long Distance 2.5KM M-Bus Low Power Ipex Antenna Interface Star Networking

£46.49 £77.48
Save 40% (£30.99)
Buying Bulk?
  • Order within 15 hours and 15 minutes to get between May 21 - May 27
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • Low power wireless system on chip; High-performance 32-bit 78 MHz ARM Cortex-M33 with DSP instructions and floating-point unit for efficient signal processing. Up to 256 kB Flash program memory; RAM data memory up to 32 kB Up to +20 dBm transmit power
  • Rich and diverse selection of MCU peripherals;Exports up to 31 general-purpose I/O pins with output status retention and asynchronous interrupt capabilities; Analog-to-digital converter (ADC);12-bit@1 Msps ; 16-bit@76.9ksps ;2 Analog Comparator (ACMP) ; 2 digital-to-analog converter (VDAC) ;Low Energy Sensor Interface (LESENSE) ; 8-channel DMA controller ; 12-Channel Peripheral Reflective System (PRS) ; 4*16-bit timers/counters with 3 compare/capture/PWM channels.
  • 1*32-bit timer/counter with 3 compare/capture/PWM channels; 32-bit real-time counter; 24-bit low-power timer for waveform generation; 2 watchdog timer;3 upgraded universal synchronous/asynchronous receiver/transmitter (EUSART); 1 Universal synchronous/asynchronous receiver/transmitter (UART/SPI/SmartCard (ISO 7816)/IrDA/I2S) ; 2* I2C interfaces supporting SMBus Chip temperature sensor with 2C accuracy over entire temperature range -40 to +85 degrees Celsius
  • Supported modulation formats 2/4 (G)FSK with fully configurable moldingcapabilities;OQPSK DSSS;(G)MSK;OOK.Wide working range;1.8 to 3.8 V power supply ARM TrustZoneSecure Boot (trust the root of the secure loader);Secure debug unlock;Tamper proof Protocol support;Proprietary Product Private Agreement;WM-BUS;Sidewalk; CONNECT Encapsulation;Patch stamp hole 16mm (length) x 16mm (width) x3mm (height)
  • Chip-level security features-AES128/192/256, ChaCha20-Poly1305, SHA-1, SHA-2/256/384/512, ECDSA+ECDH (P-192, P-256, P-384, P-521), Ed25519 and Curve25519, J Hardware encryption acceleration of PAKE and PBKDF2; True Random Number Generator (TRNG) 12-Channel Peripheral Reflective System (PRS);4*16-bit timers/counters with 3 compare/capture/PWM channels.
