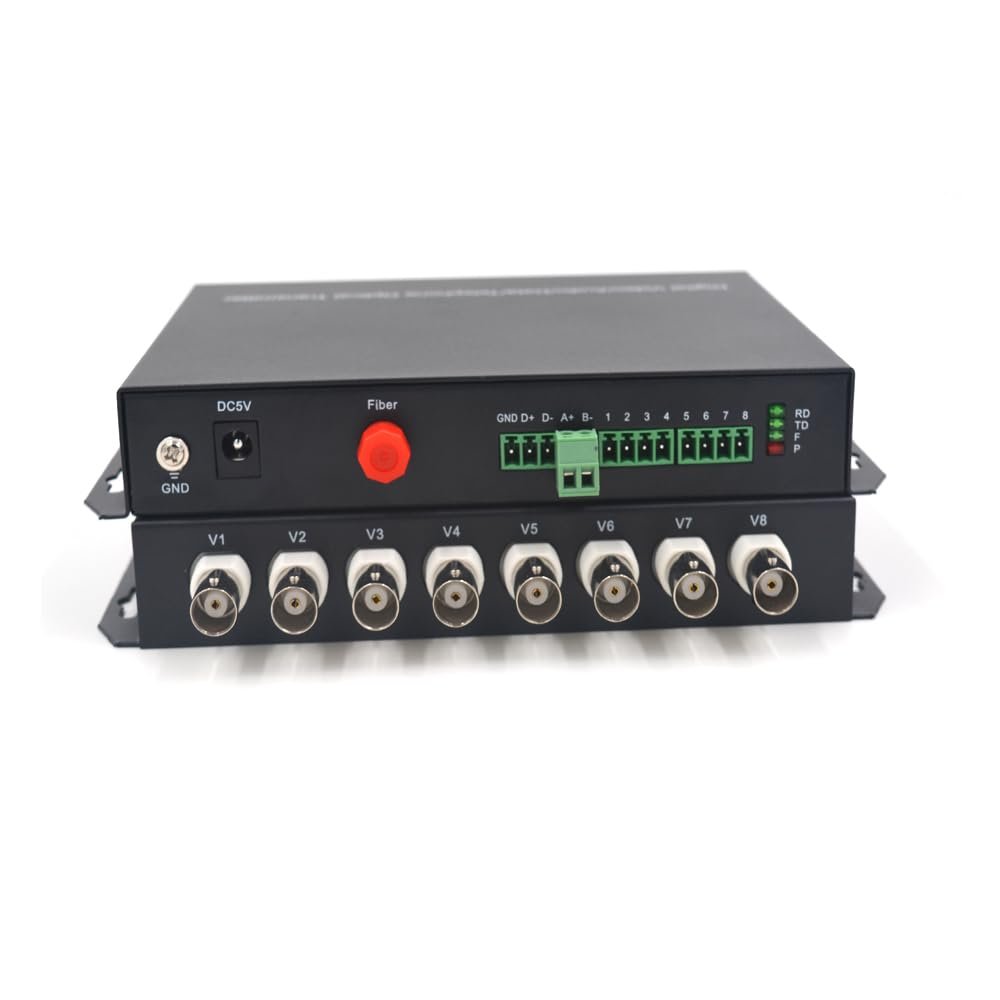

8 Port Video Fiber Optical Media Converters, Multi Mode M/M Fiber Optic 2Km 1 Set, FC Connector, for Analog Cameras(Mutlimode 0-2Km)

Description

8 channels Video Fiber Optical Media Converters- Transmitter and Receiver This is a pair of 8 channels Optical Fiber Media Converter, it is 8CH Video+1CH RS485reverse data signal transmission. It is with FC connector for the fiber transmission . It works with Single Modecable & Multi Mode cable, the transmission distance up to 20KM for Single Mode and 2Km for Multi Mode. .. Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis. Optical interface: FC Abundant signal interface, such as video, audio Up to 20km Transmission Distance by singlemode, 0~2Km by multimode fibe Specification Optical: Wavelength: 1310nm Output Power: -5 to 0dBm Optic fiber: 9/125u single mode Rx sensitivity: -30dBm Optical connector: FC Distance: 20KM / 2KM Single(Simplex) Fiber Video: Number of Channels: 8 Input/output impedance: BNC 75 ohm (unbalance) Video bandwidth: 5HZ to 8MHZ Standard video input/output voltage: 1.0Vp-p Video voltage range: 0.6 to 2.0Vp-p Differential Gain: 60dB (8 bit) Connector: BNC Operating Voltage: DC 5V Operating Temperature : -10 degree C to +75 degree C Storing Temperature : -40 degree C to +85degree C Humidity: 0 to 95% Non-condensing MTBF: >= 100000Hours Data: RS-485 (reverse direction,PTZ cameras controllable) Transfer Rate : 400Kbps Error rate : less than 10 square minus 9 .. Packing Contents 1 x 8 ch Video Fiber Media Converter Transmitter 1 x 8 ch Video Fiber Media Converter Receiver 2 x Power Supply (default US, EU/AU/UK Available) ..
