775 DC Motor DC 12V - 24V Max 12000 RPM Ball Bearing Large Torque High Power Low Noise Gear Motor Electronic Component Motor 2-Packwith Bracket

Description

• This DC motor has the characteristic of high speed, and small size
• The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
• Select high-quality raw materials, good gloss, simple and generous
• This motor is adopted of pure copper wire coil, with low heat and low loss
• Suitable for electric tools, electric screwdriver, electric fan toys, juice machine, paper shredder, vacuum

The following are the measured parameters of the motor for reference:

Rated voltage: 12V ~ 24V

Rated current: 4A, 10A, 12A (recommended starting current 10A)

Rated speed: about 12V/24V----10000RPM/20000RPM

Motor step height: 4.5mm

Motor step diameter: 17.5mm

Shaft length: 16mm (shaft length above step level)

Shaft diameter: 5mm shaft

Motor diameter: 42mm

Motor length: 66.5mm

Step height of motor tail: about 7mm

Length of shaft out of motor tail: about 4.5mm

Mounting hole pitch: about 29mm

Mounting hole diameter: M4 screw

Motor weight: about 700g(2 x 775 Motor --2x Motor bracket)

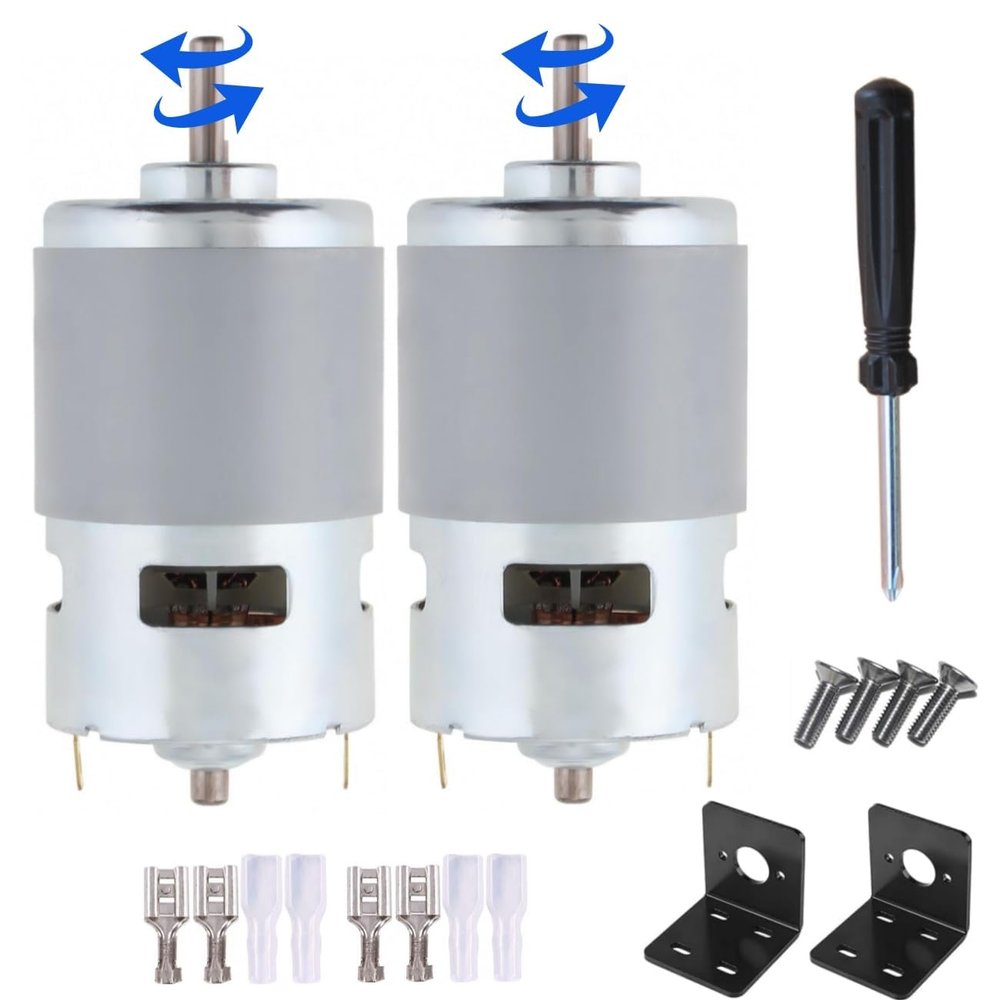

Package included

2 x 775 Motor

2x Motor bracket

4x Fixing screw

Notes:

1. Manual measuring, please allow 1 ~ 3mm error,thank you.

2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
