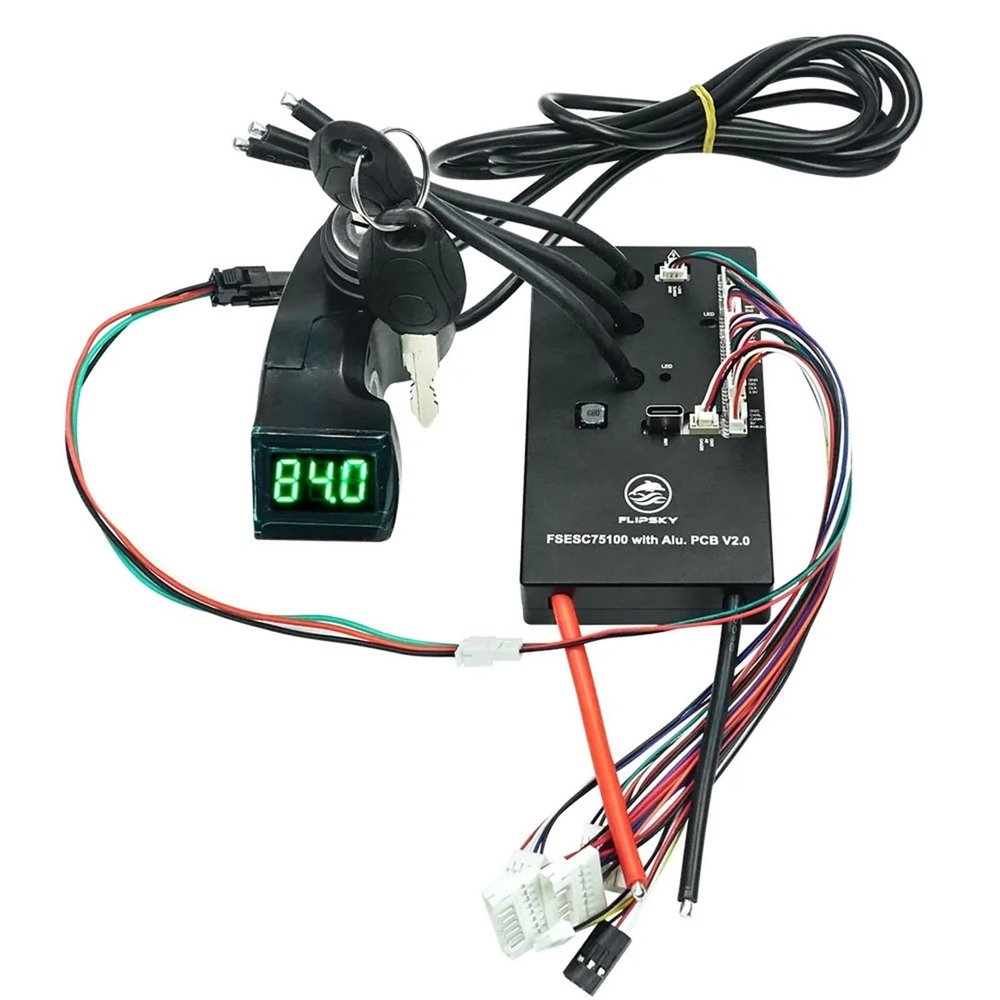

75100 V2.0 with Aluminum PCB with Power Key Switch Button Based on VESC for Electric Skateboard/Scooter/Ebike(with Key Switch)

Description

75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2)
with overheat and over current protection, regenerative braking capacity.
It's designed with aluminum case, with good heat dissipation and max working voltage can be
20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates
power on / off switch and key switch for Ebike / Escooter etc.
Specs:
Size: 103X58X24mm
Voltage:14-84V (4-20S)
Continuous Current: 100A
Peak Current: 250A
Firmware: 5.02; firmware upgrade available (Phase filter needs to be turned off for firmware 5.03 or newer)
BEC: 5V@1A
Modes: DC,BLDC,FOC(sinusoidal)
Control Interface Ports: USB,CAN,UART
Supported Sensors: ABI,HALL,AS5047,AS5048A
Input Set Support: PPM,ADC,NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes
Power Switch Button: Red
Wiring diagram:
==========
Hign-concerned Chemical : None
Is Electric : No Battery
Quantity : 1 pcs
For Vehicle Type : Motorcycles
Tool Supplies : Battery
Four-wheel Drive Attributes : Motors
Remote Control Peripherals/Devices : ESC
Upgrade Parts/Accessories : Lithium Battery
RC Parts & Accs : Speed Controllers
Material : Metal
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
