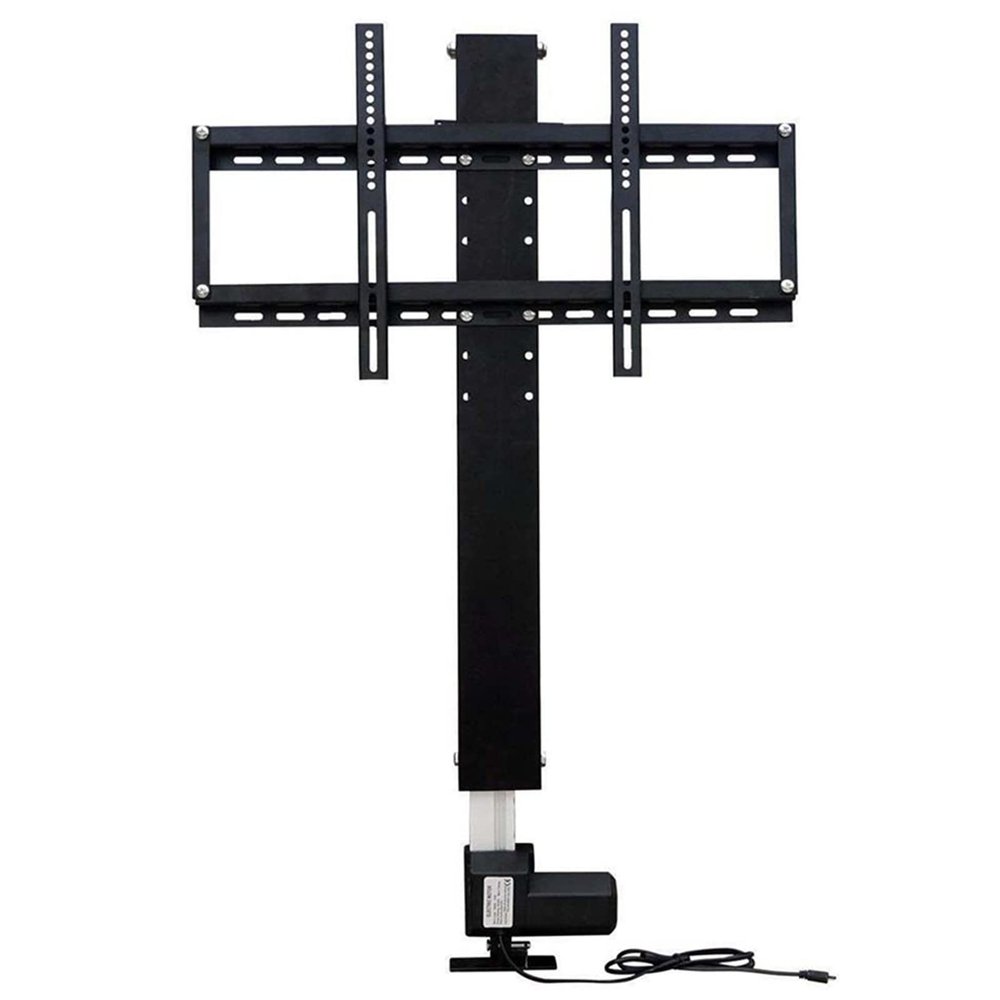

700mm Stroke Motorized TV Lift Bracket DC24V Motorized TV Mount Lift with Remote Control, Adjustable Lifter for 26 to 57inch TV, 20mm/s TV Automatic Lift Stand TV Lift Mechanism TV Lift Mount Bracket

Description

• Durable & Versatile TV LiftThis electric TV stand lift fits 26"-57" LCD, LED or OLED TVs. Enjoy unmatched strength and reliability with its elegant compact construction and ruggedized design
• DC24V Permanent Magnet MotorThe electric TV lifter has a stroke of 700mm, which can provide you with a maximum thrust of 1000N/80kg and a speed of 20mm/s. Set up your TV in your favorite home space almost instantly. Quiet DC24V motor can lift and lower in a short time
• Remote ControlOur quiet and powerful motor lifts respond quickly to commands from a remote remote for convenient use in home and commercial environments, including offices, hotel lobbies and sports bars
• Heavy-Duty Steel ConstructionThis TV lift is professionally designed and made of solid aluminum alloy and steel, high-strength plastic housing protects the motor and gears for unmatched strength and stability
• ApplicationTV lift is easy to use and install, Unexposed Dimension: 945mm, Extension Size: 1645 mm. Each lift comes with a TV mounting bracket, making it easy to mount your TV using a universal hardware kit and quick connect system

Specification:
Current: DC24V Permanent Magnet Motor
Maximum Thrust: 1000N/80kg
Speed: 20mm/s
Duty Cycle: Max 10% or 2minutes Continuous Use Followed by 18 Minutes Not in Use
Ambient Temperature: -5 To +40
Standard Protection Class: IP20
Noise Level: 48db, Actuaor Not Loaded
Standard Stroke: S = 700mm
No Extension Length: 945 mm
Extended Total Length: 1645mm
Product Size: 17.7cm x 7.6cm x (94.5-164.5cm)/7 x 3 x (37.2-64.76)
Net Weight: 6.9kg

Installation:
The minimum installation size (the distance between the two holes before and after the return of the putter) is:
L = 700mm(stroke)+100+ 157mm
The distance between the push rod and the two holes before and after is extended to
=2x700mm(stroke) +100+157mm

Features:
Height-strength plastic housing protecting motor and gears
Elegant and compact design with very small installation dimensions
Color: Black plastic parts and natural an-odizds aluminum profile
Built-in limit switchs(not adjustable)
Application: electric TV Lift 26"-57" TVs

Packages:
1x Remote Control (R-F)
1x 700mm Adjustable Lifter
1x Tv Mounting Bracket
