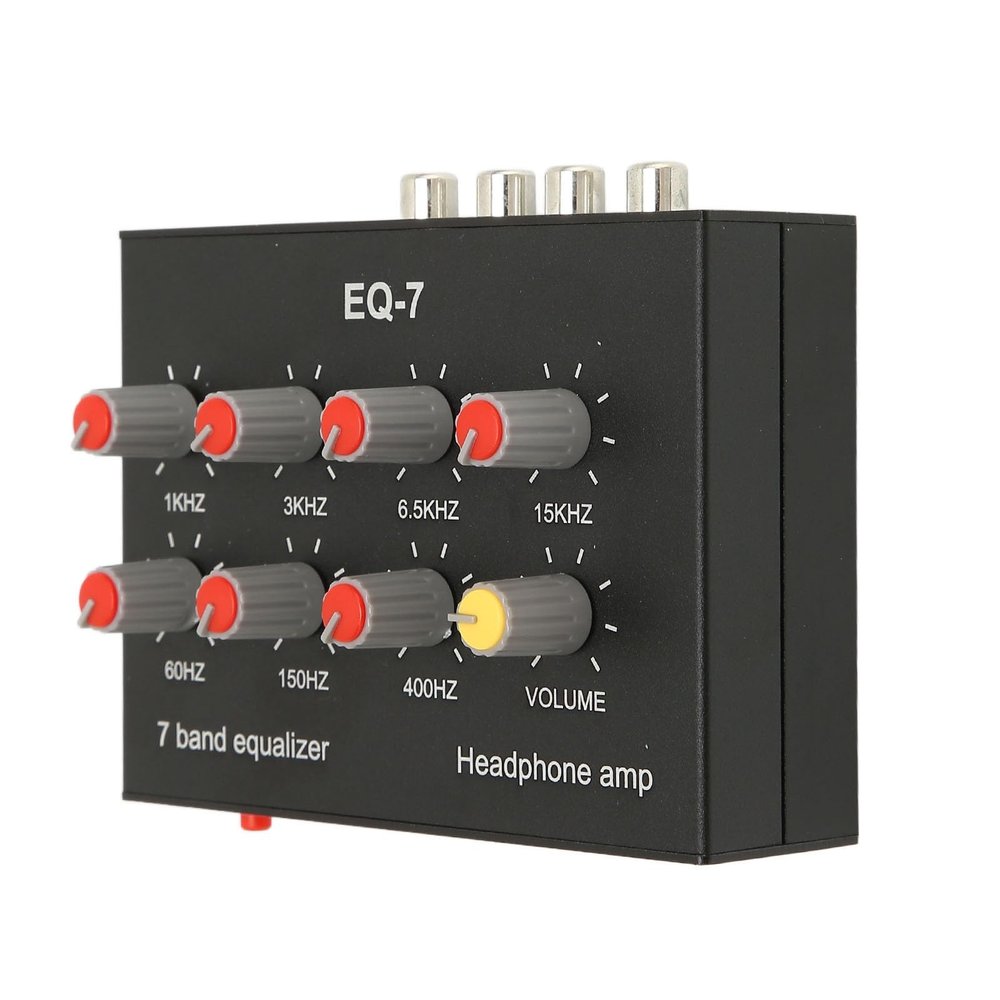

7 Band Dual Channel Digital Equalizer, Car Sound System with 12dB High Bass Adjustment, Output Input

Description

• 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group interface is available.
• Basic Parameters: 7 band sound equalizer preamplification gain, 4580 op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
• Control Range: 7 band equalization circuit control range 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
• 3.5MM INTERFACE: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group interface is available. This car graphic equalizer has adjustable subwoofer level control to fine tune your bass on the fly.
• Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, resistance, stable performance, DC5V12V power supply, dual channel sound.

1. Control Range: 7 band equalization circuit control range 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.
2. Basic Parameters: 7 band sound equalizer preamplification gain, 4580 op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
3. Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.
4. 3.5mm Interface: 3.5mm input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group interface is available.
5. Aluminum Alloy: The 7 band car sound equalizer is made of aluminum alloy, high strength, resistance, stable performance, DC5V?12V power supply, dual channel sound.

Spec:
Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Power Supply: DC5V-12V
Interface Specification: 5.5x2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: 12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

PackageList:
1 x 7 Band Sound Equalizer
1 Supply Cable
