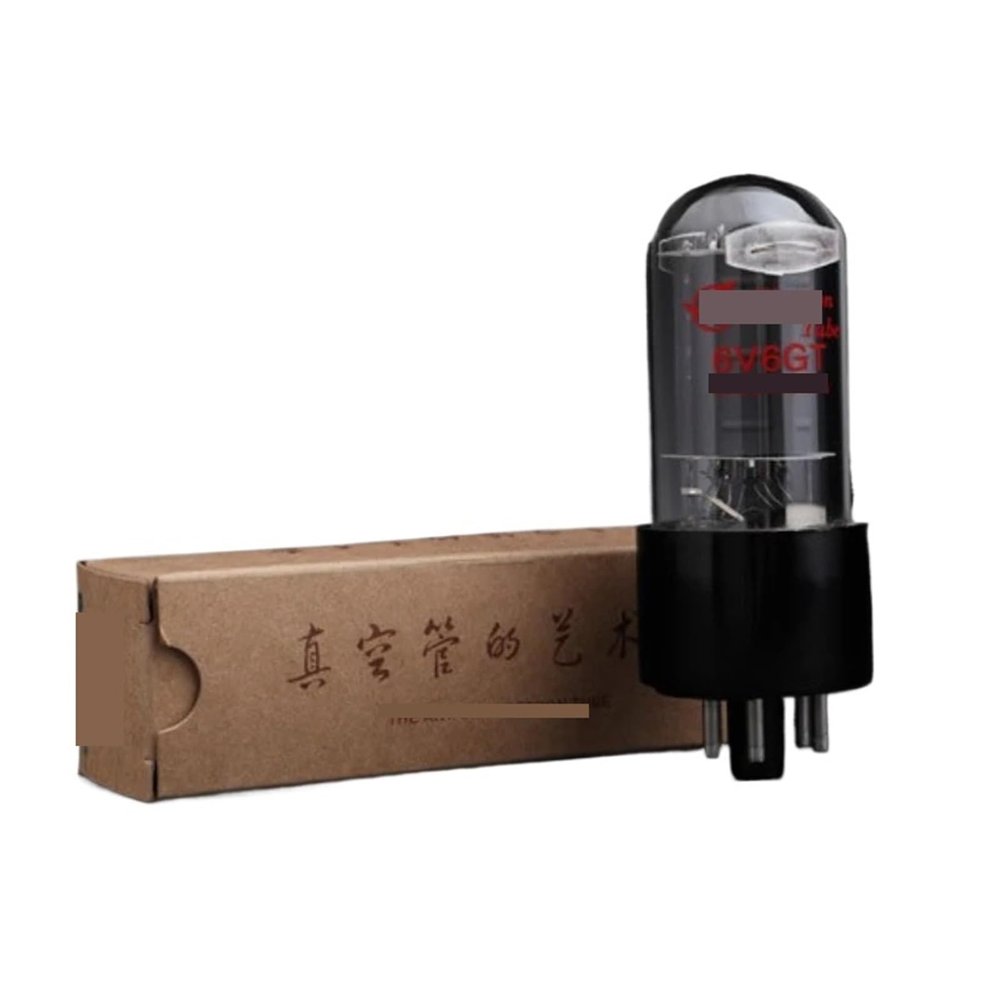

6V6GT Upgrade Tube 6V6G Tube(Matching 2PCS)

Description

• Signal Amplifiers

Signal Amplifiers
Buy 2pcs 4pcs 8pcs = exact match (matching set).
The beam power tetrode 6V6GT is a glass-encapsulated eight-pin tube with an anode maximum dissipation power of 12W, and is used for A1 and AB1 power amplification.
6V6-GT (6P6P) are similar and can be used interchangeably.
Hot wire heating
Uh................................6.3V
IH........................0.45 A
Interelectrode capacitance
Input capacitance .................................9 2.6 pF
Output capacitance................................0.7 0.7 pF
Cross-circuit capacitance .................................4 3.8 PF
Recommended working status (reference value)
Single tube A1 level amplification limit rating
Anode voltage................................315V
Second gate voltage.................285 V
Anode power dissipation..................12W
Second gate power dissipation....................2 W
Hot wire cathode voltage............100 V
First gate resistor
Fixed bias voltage........................0.1 M
Self-bias voltage... ...
Working status
Ua........................180 250 315 V
Ug2........................180 250 225 V
-Ug1........................8.5 12.5 13V
g (peak)...................8.5 12.5 13 V
Ia(0)................................29 45 34 mA
Ia (maximum signal)............30 47 35 mA
Ig2(0) ................3 4.5 2.2 mA
Ig2 (maximum signal).........4 7 6 mA
Miles................................................50 50 80 k
Gm................................3.7 4.1 3.75 mA/V
RL........................5.5 5 8.5K
Ponte................................2 4.5 5.5 W
Total dryness................................8 8 12%
Push-pull AB1-level zoom
Working status (dual tube value)
Ua........................250 250V
Ug2......................250 285 V
-Ug1........................15 19V
g(g1-g1.pk)................30 38V
Ia(0)...................
