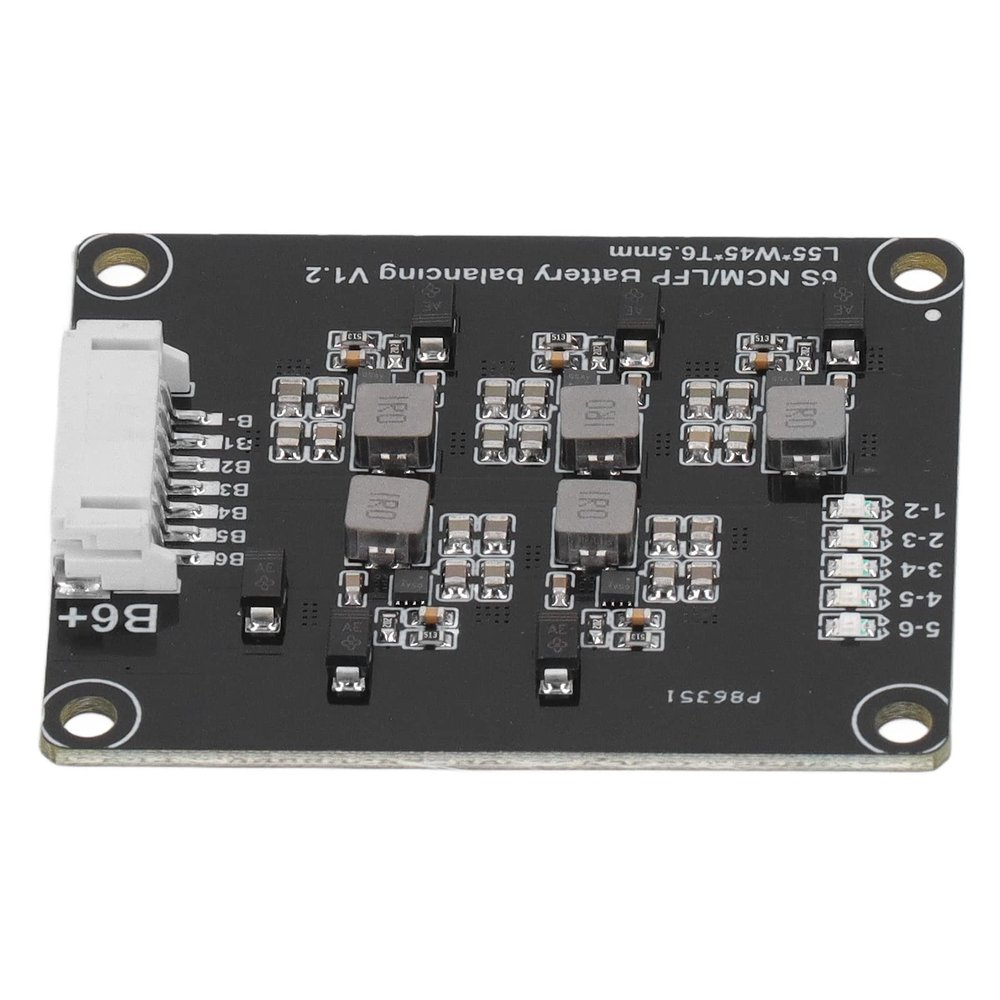

6S Battery Balance Board Battery Balancer Equalization Board Inductive Active Equalizer Balancer with Cable Light Indicator 1.2A 2.0V to 4.5V

Description

• GOOD PERFORMANCE: Built in improved ultra low internal MOS, balance current from 0 to 1.2A, achieving smaller battery voltage difference.
• APPLICATION: Inductive battery balance board, which can significantly balance the battery voltage and improve the overall efficiency of the battery pack.
• AUTOMATIC The active equalizer module is the balance of adjacent voltage difference, the voltage difference between adjacent batteries reaches more than 0.1V, the chip will the balance work, and stop working until the voltage difference between adjacent batteries is within 0.03V.
• LOW POWER CONSUMPTION: The smaller the voltage difference, the smaller the equalizing current, and the static power consumption does not exceed 20A, energy saving.
• SAVING COST: Battery pack voltage error will also the balance board, and it will be pulled back to an ideal value, reducing battery maintenance cost.

Spec:
Item Type: Battery Balance Board
Material: PCB
Harness Specification: 22AWG
Technical Parameter:
The Working Voltage is 2.0V-4.5V, the Ternary Iron Lithium Battery is Common, and the LTO Lithium Titanate Battery is not Suitable.
Balance current:
The Adjacent Voltage Difference is More Than 0.1V (the Current is About 0.5-0.7A);
The Adjacent Voltage Difference is More Than 0.2V (the Maximum Equilibrium Current is 1.2A);
The Smaller the Voltage Difference, the Smaller the Equalizing Current.
Wiring Definition:
B-, the Total Negative Pole of the Battery Pack (the Negative Pole of the First Battery)
B1, the Positive Pole of the First Battery
B2, the Positive Pole of the Second Battery
B3, the Positive Pole of the Third Battery
B4, the Positive Pole of the Fourth Battery
B5, the Positive Pole of the Fifth Battery
B6, the Positive Pole of the Sixth Battery

PackageList:
1 x Battery Balance Board
1 x Cable

Note:
1. Adjacent equalization works and cannot be used as a maintenance tool. 2. To connect to the battery, use it together with the lithium battery .
3. The voltage difference generated by charging and discharging will the work of the equalizing plate to achieve energy transfer equalization
