6-Channel DIN Rail Power Distribution Module, Fused Terminal Block, DC Input

Description

• 6 Channels output, each channel maximum output current 3 Amps (Factory-installed fuse value 5 Amps, you can replace the fuse to support up to 10 Amps.)
• Fuse holders for Medium Blade ATO/ATC Fuse, the fuse can be removed and replaced very easily.
• With fuse fail indication function, when you connected load and the fuse has blown or has been unplugged, green indication LED will turn on.
• FR-4 fiberglass dual copper layers PCB.
• High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.

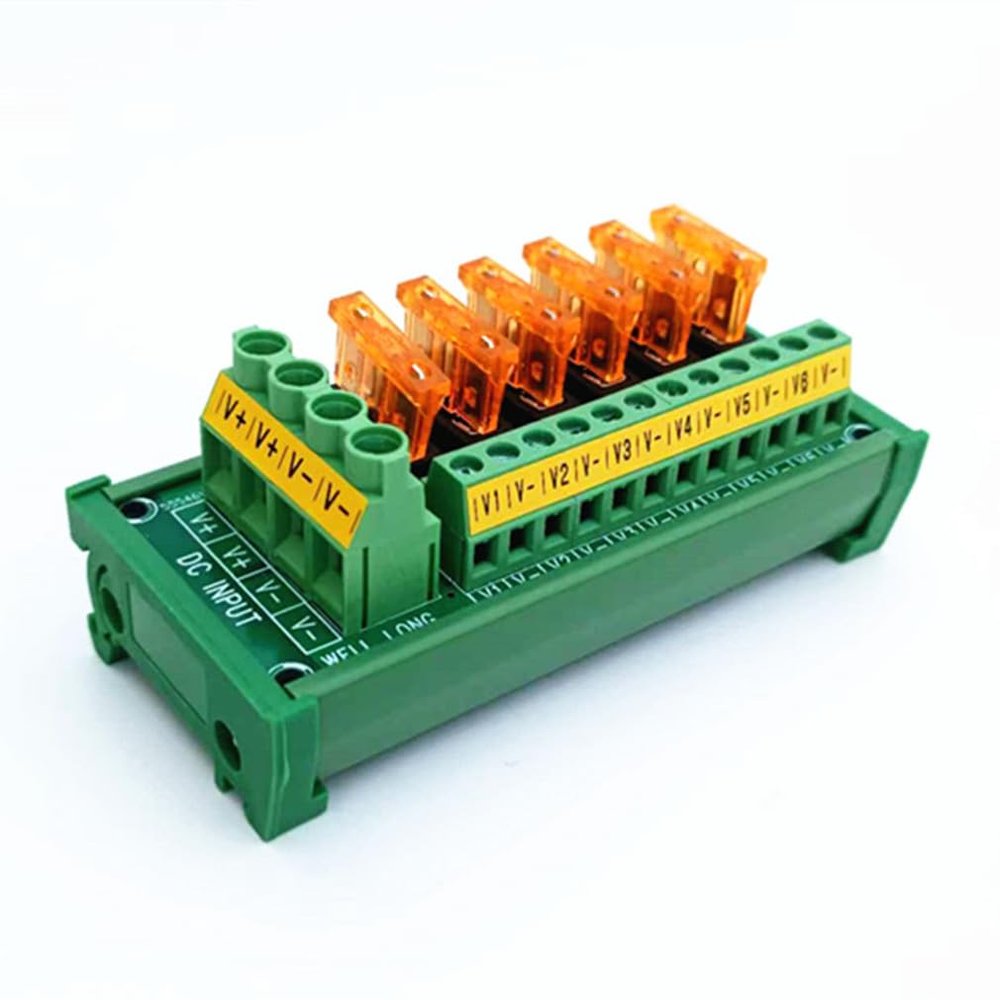

This versatile 6-channel DIN rail power distribution module offers a professional solution for DC power management in industrial control systems. The module features six individually fused circuits with orange-colored 5A fuse for easy visibility and quick status checks. Each channel includes secure screw terminal connections, making wire installation and maintenance straightforward. The robust green PCB construction provides reliable power distribution while the clear terminal labeling ensures proper wiring. The module includes DC input terminals and six separate output channels (V1-V6), perfect for organizing multiple DC powered devices in control panels or electrical enclosures. The DIN rail mounting capability allows for quick installation in standard industrial cabinets, while the compact design helps maximize space efficiency. This terminal block module is ideal for applications requiring protected power distribution, such as automation systems, machine controls, or other industrial electrical installations. Working Voltage: DC 5 to 32V. Maximum Total Input Current: 30 Amps.6 Channels output, each channel maximum output current 3 Amps (Factory-installed fuse value 5 Amps, you can replace the fuse to support up to 10 Amps.)Fuse holders for Medium Blade ATO/ATC Fuse, the fuse can be removed and replaced very easily. With fuse fail indication function, when you connected load and the fuse has blown or has been unplugged, green indication LED will turn on.FR-4 fiberglass dual copper layers PCB.Width42mm High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.Input Terminals: pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.Output Terminals: pitch 5.08mm/0.2", wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
