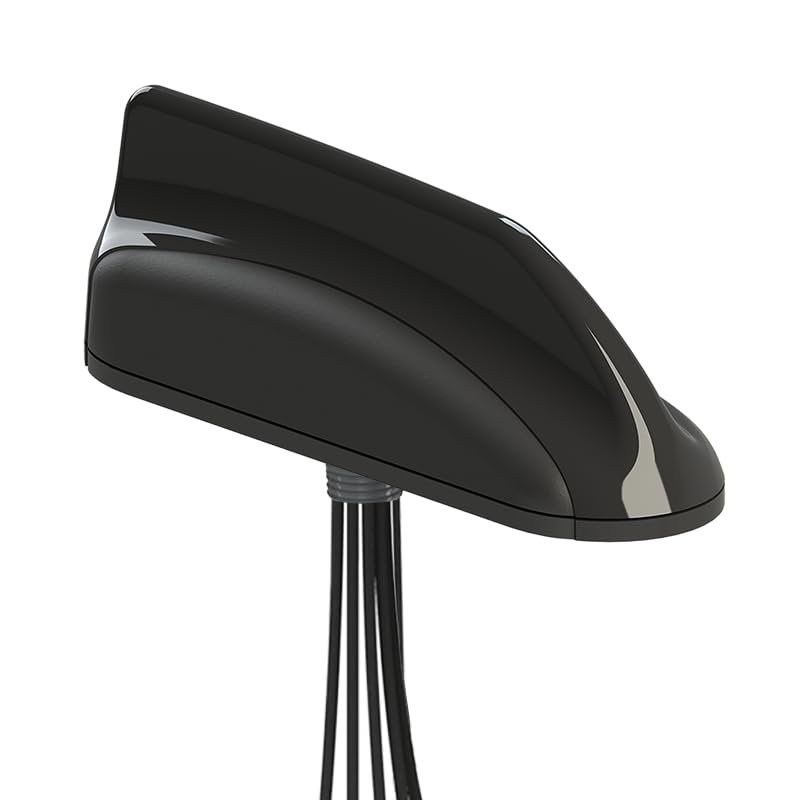

6-Cable MXFG602 6-in-1 LTE 5G Surface Mount MaxFin Antenna 2X 5G/LTE, 3X WiFi 6E, GNSS by Mobile Mark - Black- 15Ft

Description

• Cables 1&2: 694-960 MHz/1710-3700 MHz
• Cables 3-5: 2.4-2.5 GHz/ 4.9-6 GHz
• Cable 6 (GNSS): 1561, 1575, & 1602 MHz
• Measuring 7.50 (19cm) in length, 2.25 (5.7cm) width, and 2.50 (6.4cm) tall the MXFG602 significantly takes up less space than multiple antennas.
• 15 Feet LL-195 with SMA Plug (x2) 2.4-2.5/4.9-6 GHz = 15 Feet LL-195 with Rev Pol SMA Plug (x3) GPS/GLONASS = 15 Feet RG-174 with SMA Plug
• MountingThru Hole, Ground Plane Dependant
• Shock & VibrationIEEE1478, EN 61373, MIL-810G, TIA 329.2-C
• Water IngressIP67
• Vehicle Fleet Management; will cover Cellular/WiFi/GNSS Fixed Site such as RSU or Traffic Management Use with Multiband modems with 3 WiFi Ports
• MobileMark Part # MMK-MXFG602-3C3C3J3J3J2C-BLK-180

Mobile Marks MXF602 Multiband Diversity/MIMO antenna contains six separate antenna elements, all in one compact antenna housing: two broadband LTE/Cellular antennas, three dual-band WiFi antennas, and one GNSS antenna. The GNSS element operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. The MXFG602 covers Cellular LTE frequencies from 694-3700 MHz, including the new CBRS band at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
MobileMark Part # MMK-MXFG602-3C3C3J3J3J2C-BLK-180
