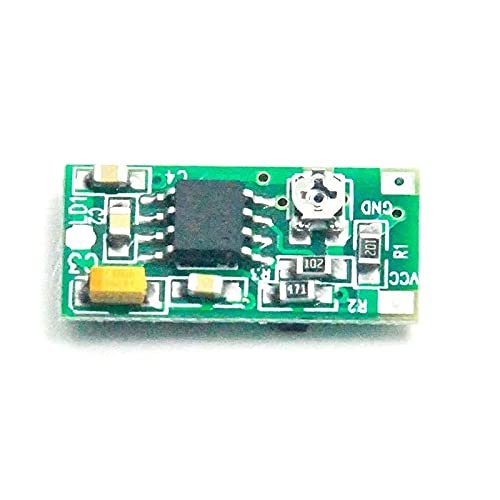

650nm 780nm 808nm 850nm 980nm Red IR Laser Diode Power Driver Circuit Board

Description

• Wavelength: 650nm, 780nm, 808nm, 980nm
• Recommended Operating Voltage: 4.75-5.25V
• Operating current: 50-300mA
• Generally, the current is only within 50 ~ 300mA, but if you need to make it larger, you need to properly drop the two resistance of 100 and 10

650nm 780nm 808nm 850nm 980nm Red IR Laser Diode Power Driver Circuit Board
Parameters
Wavelength: 650nm, 780nm, 808nm, 980nm
Recommended Operating Voltage: 4.75-5.25V
Operating current: 50-300mA
Constant Current Control and Operatable:
660nm 50-300MW
780nm 50-300MW
808nm 50-300mw
850nm 50-300mw
980nm 50-300mw
Dimensions: 10x25mm
Generally, the current is only within 50 ~ 300mA, but if you need to make it larger, you need to properly drop the two resistance of 100 and 10.
Package
650nm 780nm 808nm 850nm 980nm Red IR Laser Diode Power Driver Circuit 50mW-300mW
