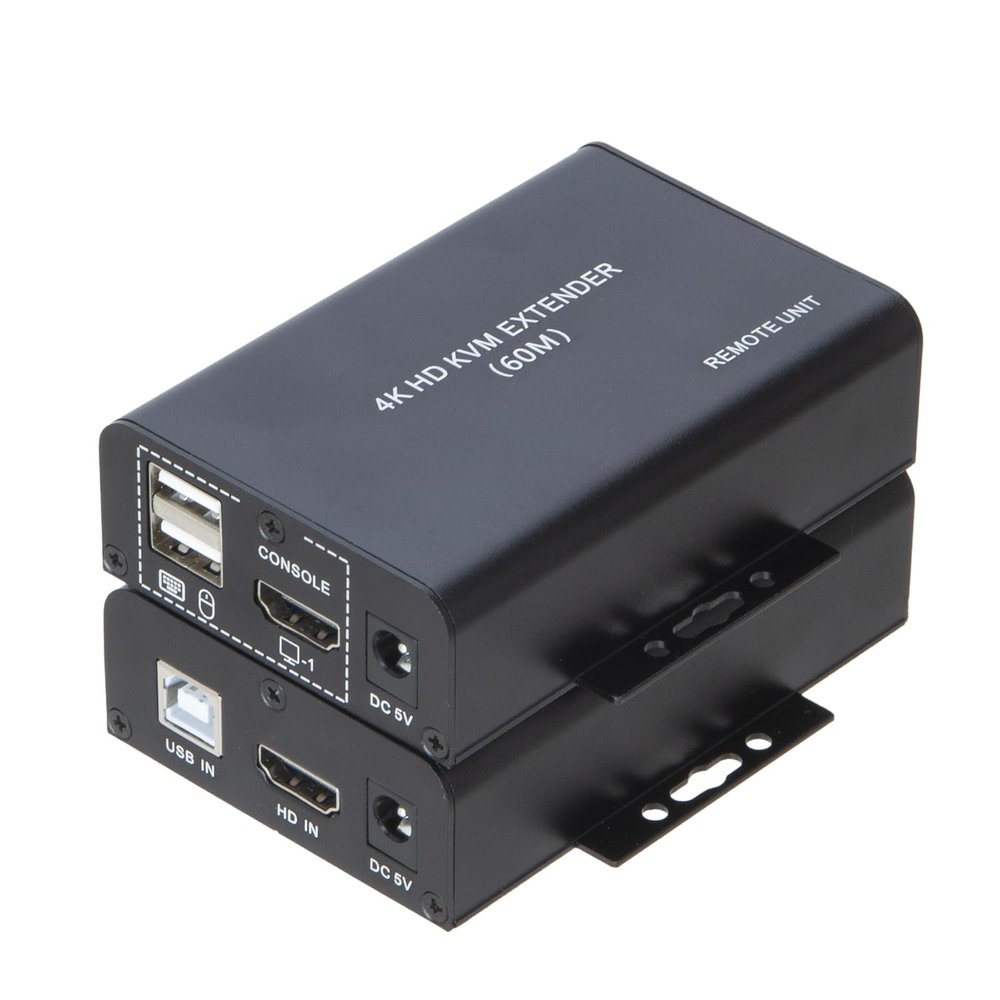

60M HDMI KVM Extender Over Cat5e Cat6 4K30Hz HDMI USB KVM 60M Extender Transmit with Supports Dual Loop Output Function USB Keyboard Mouse Extension

Description

• A:Long-distance transmission capability: A single CAT-5E/6 network cable can extend HDMI signals and USB keyboard/mouse signals up to 60 metres, overcoming the distance limitation of standard HDMI cables, which require customisation beyond 10 metres, to meet long-distance cabling needs.
• B:High-resolution support: Supports 4Kx2K@30Hz resolution with a signal transmission rate of up to 3.4Gbps, delivering clear and detailed imagery. Ideal for scenarios with high visual quality requirements, such as home theatres and high-definition displays.
• C:Flexible cabling and compatibility: Uses CAT-5E/6 network cables as an alternative to HDMI cables, which are widely available and allow users to handle cabling themselves, making the process simple. Compatible with both HDMI and DVI interfaces (with an adapter), and supports HDCP, making it compatible with a wide range of devices.
• D:Rich interfaces and functions: The transmitter features HDMI video output, independent audio output, and infrared output; the receiver has independent audio output and infrared input, meeting requirements for independent audio output and infrared control.
• E:Convenient operation and setup: no additional setup is required when used in pairs. The default resolution for first-time use is 1920x1080@60Hz. If adjustment is needed, the video can be quickly initialised via a hotkey to resolve resolution mismatch issues.
• F:Notes: Standard CAT-5E/6 cables must be used; non-standard cables may affect transmission quality. The network cable length must be 5 metres; otherwise, there may be no display. If the Power indicator is dim, check if the power supply is sufficient.

4K 60M HD KVM Extender
Product Description
This product is a 4K 60M HD KVM Extender that extends HDMI signals and USB keyboard/mouse signals over a single CAT-5E/6 network cable for up to 60 metres. It supports a maximum resolution of 4Kx2K, overcoming the distance limitations of traditional HDMI cables and enabling flexible cabling. It is suitable for various applications such as home theatres, data control centres, and meeting rooms.
Core Features
Long-Distance Signal Transmission
Utilises CAT-5E/6 network cables (compliant with the IEEE-568B standard) to replace HDMI cables, achieving a transmission distance of up to 60 metres. This addresses the challenge of customising HDMI cables beyond 10 metres, while network cables can be easily cut and routed for convenient installation.
High-definition quality and compatibility
Supports 4Kx2K@30Hz resolution with a signal transmission rate of 3.4Gbps, compatible with HDCP protocol; when paired with an HDMI-to-DVI adapter, it supports DVI interfaces, compatible with set-top boxes, DVD players, projectors, and other devices.
Multiple interfaces and audio support
Transmitter end: includes HDMI video output, independent audio output, and infrared output;
Receiver end: Includes independent audio output, infrared input, and supports lossless compressed audio (such as LPCM) and compressed audio.
Plug-and-play: No additional setup required when used in pairs; default resolution is 1920x1080@60Hz, and resolution can be quickly adjusted to match the display using a hotkey (such as the SCROLL LOCK key combination).
Stable performance: Standard CAT-5E/6 cables ensure signal transmission quality within 60 metres.
Package contents
Extender transmitter 1, receiver 1
DC5V power adapter 2
USB A-B data cable 1
Infrared receiver cable 1, infrared transmitter cable 1
User manual 1
