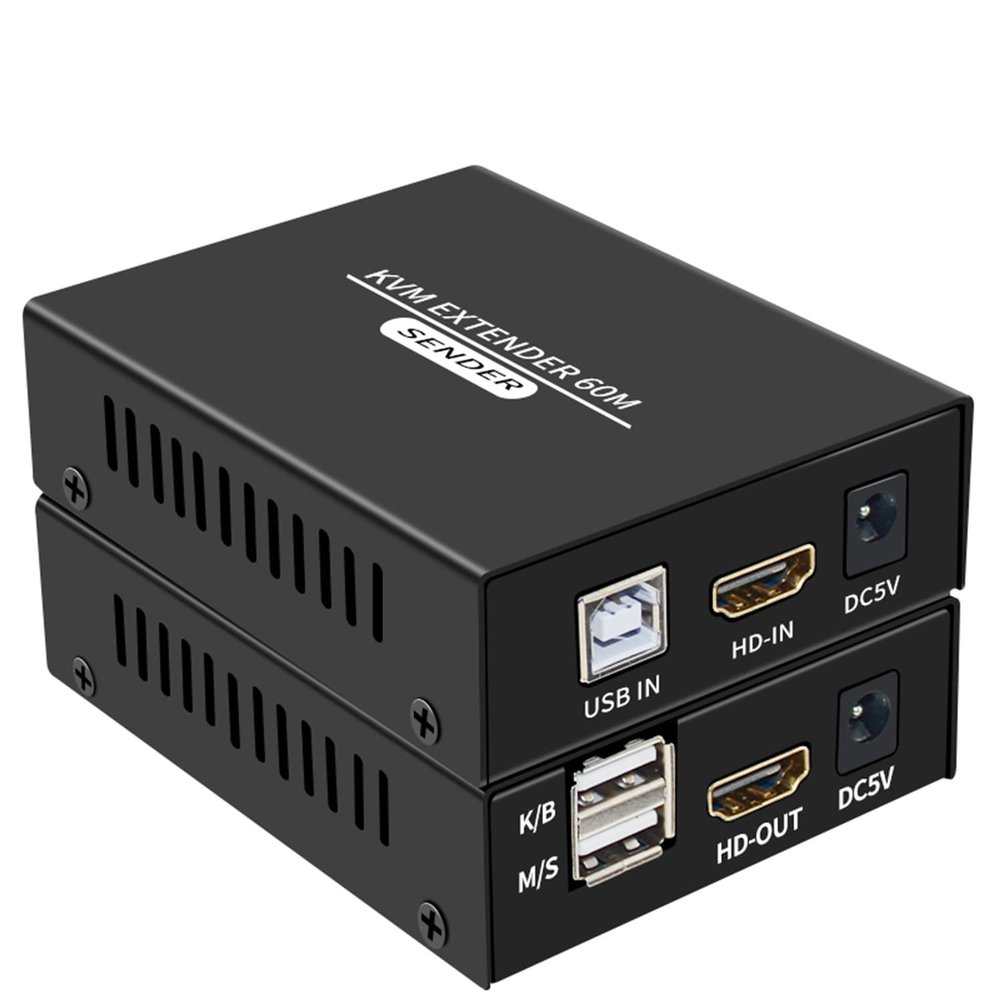

60M HDMI KVM Extender Over Cat5e Cat6 1080P HDMI USB KVM Extender Transmit with Loop Out Support USB Keyboard Mouse Extension

Description

• *One pair as a full functional module, no need of setting.
• *Support 1080P/60Hz;*Support local loop-out;*Support 60m long distance transmission
• *Low power consumption, low temperature and high safety;-Support mouse and keyboard extension;*CAT-5e/6 follow the standard of IEEE-568B
• *The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
• *Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.
• *With this extender, the transmission distance can be up to 60 meters while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 mete

Introduction :
The KVM Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost.
The Extender is designed to supply for long distance transmission of high definition signal.
It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories,
space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Specifications:
Length of CAT-6/CAT-5E cable between Rx and TX Up to 60 meters
HDMI Input 1080p/1080i/720p/576p/576i/480p/480i
HDMI Output1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth150MHZ
Max baud rate4.5Gbps
Input video signal0.5~1.5Volts p-p
Output DDC signal5Volts p-p (TTL)
Input HDMI cable distance10m AWG26 HDMI standard cable
Output HDMI cable distance15m AWG26 HDMI standard cable
TX Max working current450mA
RX Max working current350mA
Power adapter formatInput:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +45 C)
Operating Humidity range 5 to 90%RH (No Condensation)
Package:
1* transmitter
1* receiver
2*DC5V power Plug
1* One USB A-B cable
