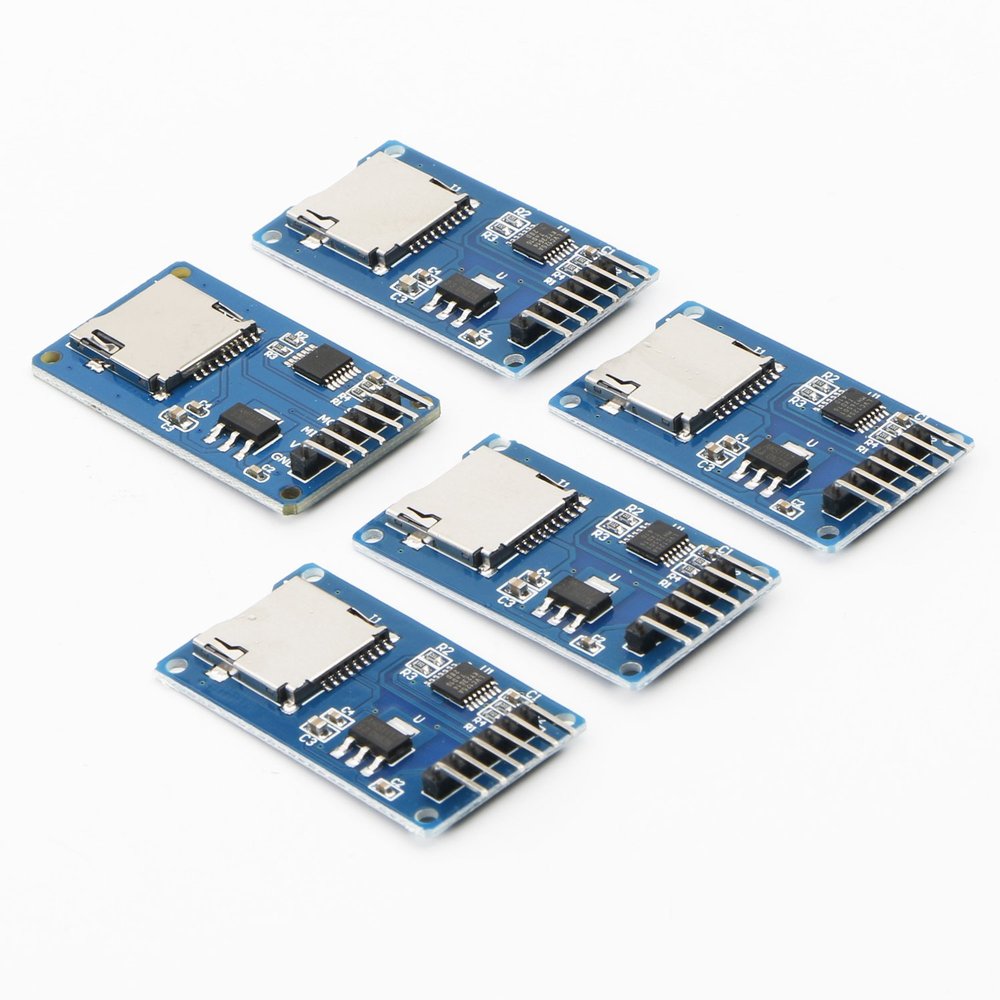

5PCS Micro SD Card Micro SDHC Mini TF Card Adapter Reader SPI Interface Driver Module for Arduino

Description

• Circuit: Level conversion circuit board that can interface level is 5V or 3.3V
• Power Supply: 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
• Communications Interface: A standard SPI interface
• Easy to Use: 4 M2 screws positioning holes for easy installation
• Micro SD Card Connector: Self bomb deck, easy card insertion

Description:
The module (MicroSD Card Adapter) is a Micro SD card reader module for reading and writing through the file system and the SPI interface driver,
SCM system can be completed within a file MicroSD card
Support Micro SD Card, Micro SDHC card (high speed card)
Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK for SPI bus, CS is the chip select signal pin;
3.3V regulator circuit: LDO regulator output 3.3V for level conversion chip, Micro SD card supply;
Level conversion circuit: Micro SD card to signal the direction of converts 3.3V, MicroSD card interface to control the direction of the MISO signal is
also converted to 3.3V, general AVR microcontroller systems can read the signal;
Micro SD card connector: self bomb deck, easy card insertion.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, so the module is easy to install positioning, to achieve inter-module combination.

Package Content: 5 pcs Micro SD Card Module
