5MP Cmos USB Microscope Camera, Digital Electronic Eyepiece Industrial Camera Digital Electronic Eyepiece Camera for Science Education and Classroom

Description

• High-speed USB0 InterfaceThe camera features a high-speed USB2.0 interface, allowing for data transfer speeds of up to 480Mb/s.
• Large Area Array CMOS Image SensorEquipped with a large area array CMOS progressive scan image sensor, the camera supports both static and dynamic image capture. The exposure time is adjustable, ensuring optimal image quality.
• Uncompressed Raw Image DataWith 8-bit uncompressed raw image data and software implementation Bayer-color conversion, the camera provides reliable and stable images. It is easy to install and supports plug and play functionality.
• Wide ApplicationThe camera is suitable for a variety of applications including pattern recognition, industrial testing, traffic management, machine vision, and microscope imaging. It is compatible with various microscope models and can be used in different scenarios.
• C-Mount Eyepiece InterfaceDesigned specifically for microscopes, the camera has a C-mount eyepiece interface (adapter) that can be easily inserted into 2mm, 30mm, and 30.5mm openings.

Features:
*High-speed USB2.0 interface, up to 480Mb / s.
*Large area array CMOS progressive scan image sensor.Support for static and dynamic image capture.Exposure time: any adjustable.
*8bit uncompressed raw image data, software implementation for Bayer color conversion and play installation.
*The image is stable and reliable, after a long period of rigorous testing performance indicators.
*Can be widely used in pattern recognition, industrial testing, traffic management and machine vision and other fields. More widely used in various fields of microscope and image acquisition of various occasions.
*C mouth eyepiece interface (adapter), designed for the microscope . the under mouth is the 23.2mm 30mm 30.5mm straight inserted.

Specifications:
Color
Material:
Image sensor: 1 / 2.5" color CMOS image sensor
Pixels size: 2.2 m 2.2 m
The spectral response: 550nm
Scan mode: progressive scan
Pure hardware 5 megapixel image sensor, no compression, no interpolation
Resolution:640X480@30fps,1280x1024@30fps,1600x1200@30fps,1920x1080@30fps 2048x1536@ 30fps,2592x1944@ 30fps
White Balance: Auto / Manual
Auto Exposure Control: Auto / Manual
Image output: USB2.0, 480Mb / s
Operating temperature: 0 C ~ 50
Working current: 200mA
Application: Microscope imaging, General image acquisition, macro imaging, etc.

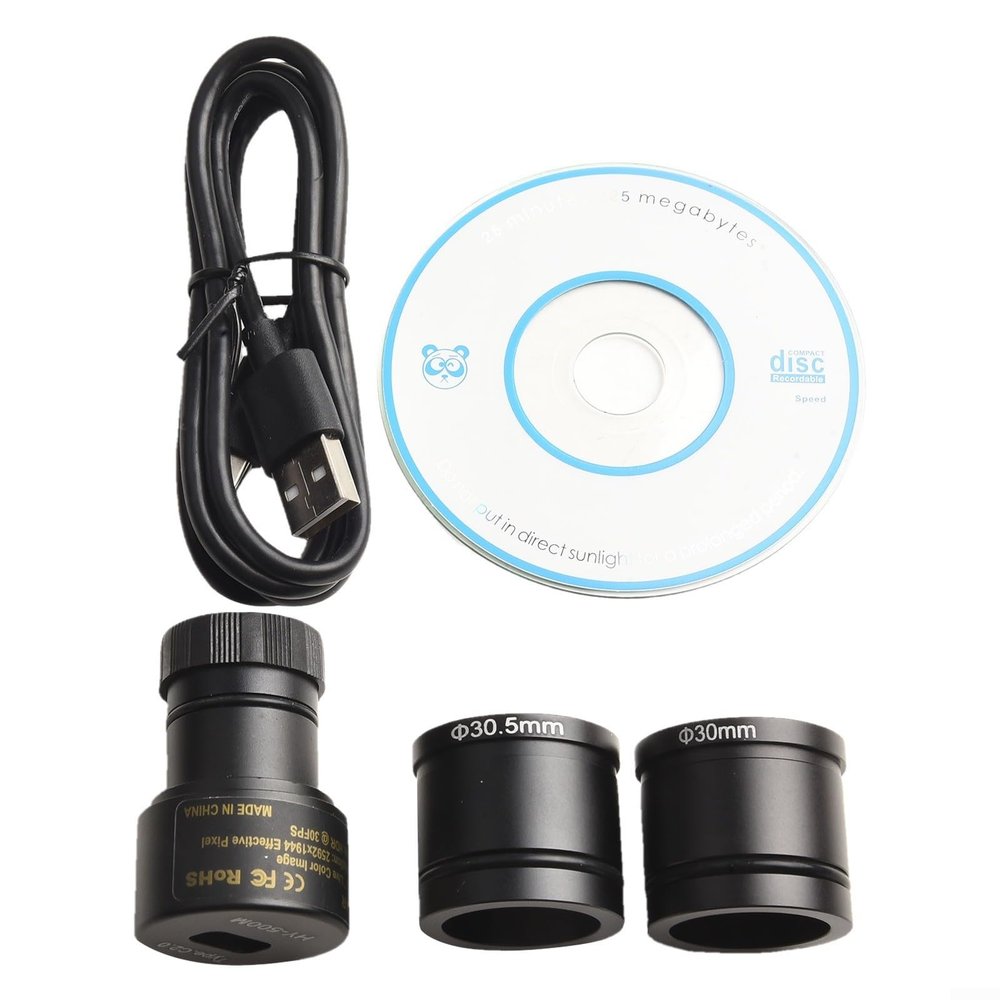

Package Included:
1PCS Microscope camera
1PCS USB-Kable
1PCS 30mm adapter
1PCS 30.5mm adapter
1PCS CD
